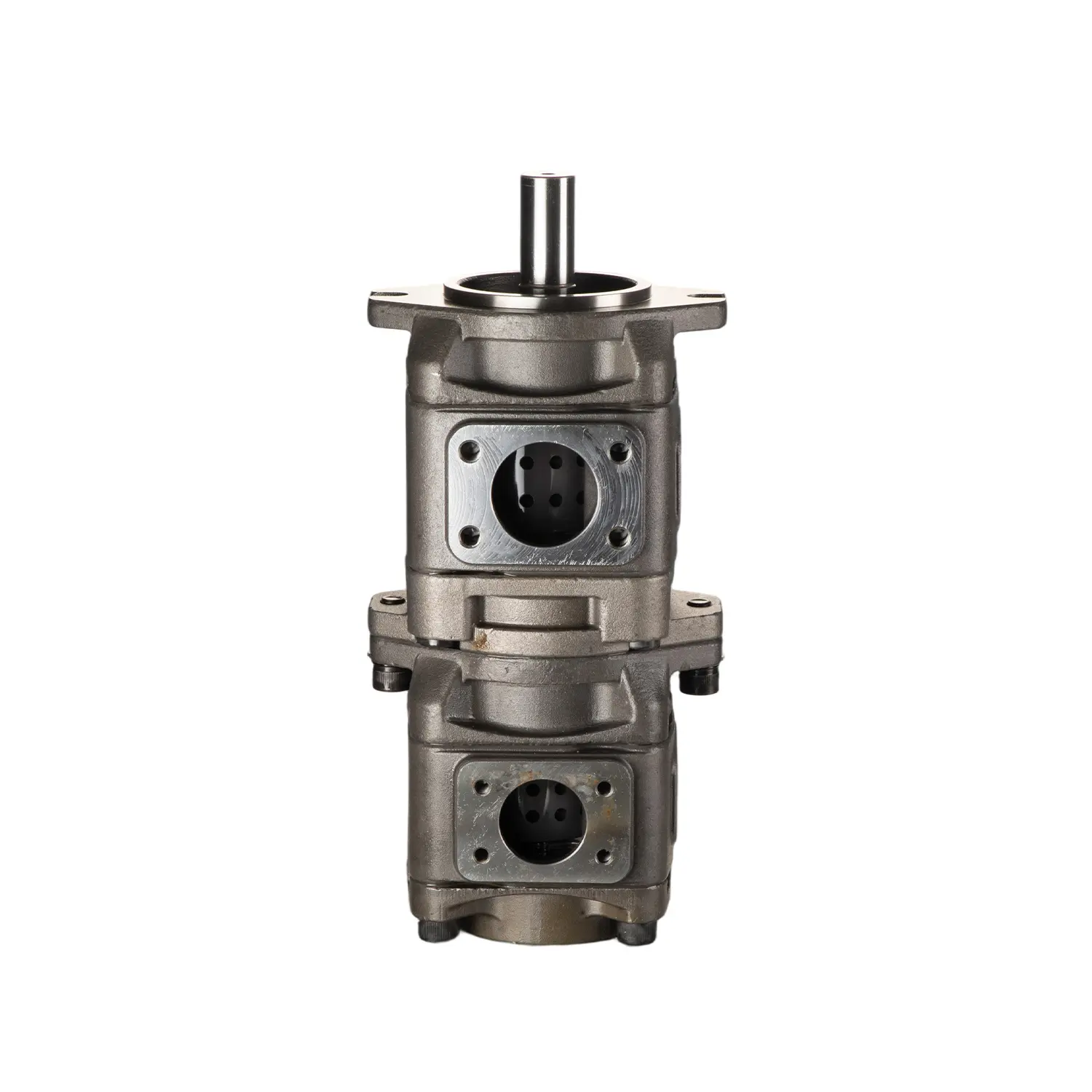

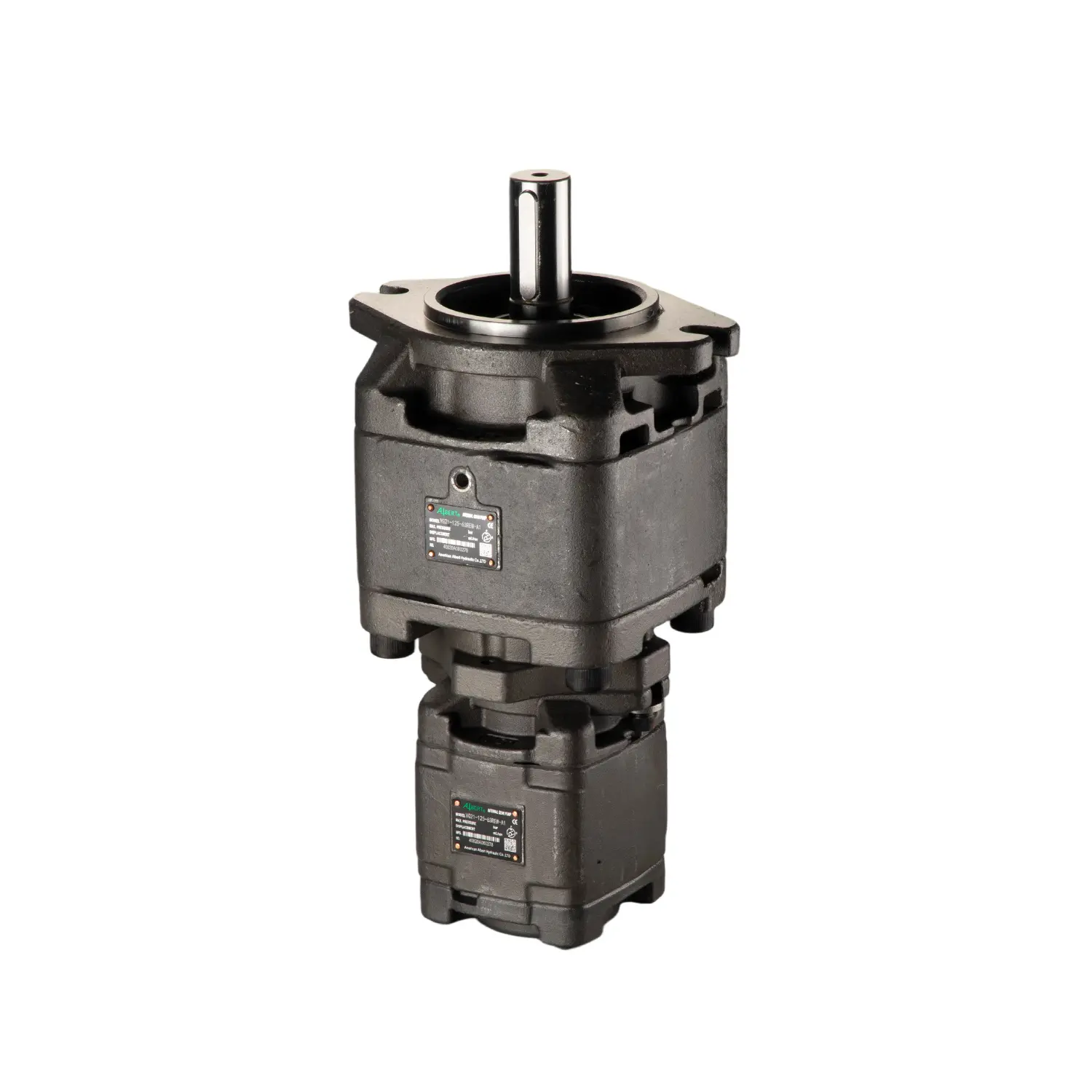

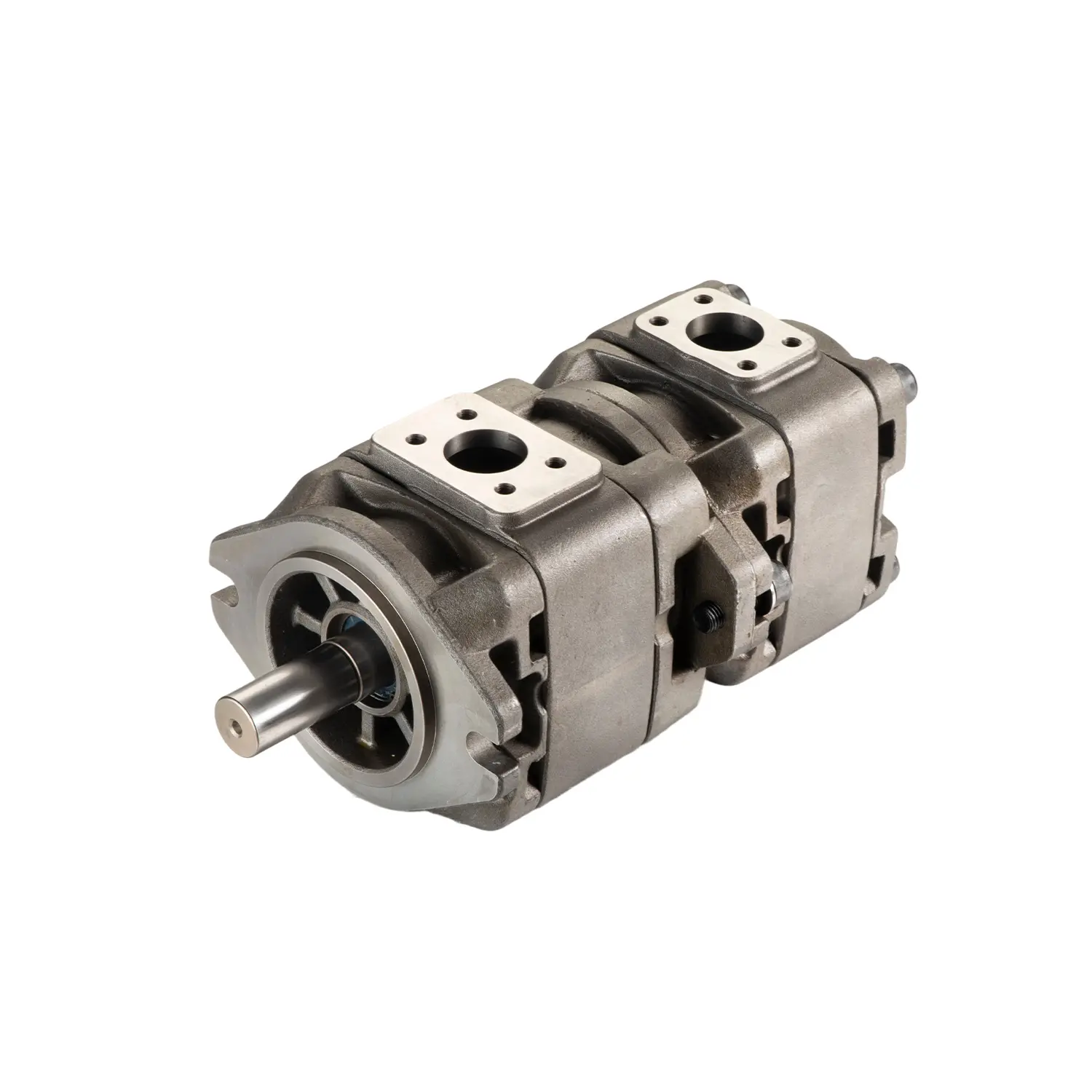

VG Internal Gear Pump-Combined Pump

VG Internal Gear Pump-Combined Pump

VG Internal Gear Pump-Combined Pump

Categories ,

Vg Internal Gear Pump-Combined Pump

The Cobined pump is composed of two single pumps assembled in series, with two independent oil inlet and independent oil outlet, according to the series of two pumps, can be obtained displacement: VG11 series, VG21 series, VG22 series.

Enquiry

Description



Model Designation

VG OIL PUMP

VG11 -63 -40 R E W -A1
Series  ml/r Flow code of shaft end pump  ml/r Flow code of cover end pump Rotation direction Shaft type Sealing material  Design number
VG11 25、32、40、50、63

50H、63H

 25、32、40、50、63

50H、63H

 Viewed from shaft end of pump



R= Right hand for clockwise



L-Left hand for counter- clockwise

 E= Straight key shaft



R=SAE  Spline shaft

 W=(Buna) NBR



V=(Viton) FKM



A1
VG21 80、100、125、

145、160

 25、32、40、50、63

50H、63H
VG22 80、100、125、

145、160

 80、100、125、

145、160

VG11 Installation Dimensions

VG11 Installation Dimensions (2)

Front pump L1 Rear pump
25 32 40 50 63
L2 L3 L2 L3 L2 L3 L2 L3 L2 L3
25 73 215.5 283
32 76.5 222.5 290 226 297
40 80 229.5 297 233 304 236.5 311
50 85 239.5 307 243 314 246.5 321 251.5 331
63 92 253.5 321 257 328 260.5 335 265.5 345 272.5 359

VG21 Installation Dimensions

VG21 Installation Dimensions

 Front pump L1 Rear pump
25 32 40 50 63
L2 L3 L2 L3 L2 L3 L2 L3 L2 L3
80 109.5 293 359 296.5 366 300 373 305 383 312 397
100 114 302 368 305.5 375 309 382 314 392 321 406
125 120 314 380 317.5 387 321 394 326 404 333 418
145 124.8 323.5 389.5 326.5 396.5 330.5 403.5 335.5 413.5 342.5 427.5
160 129 332 398 335.5 405 339 412 344 422 351 436

VG22 Installation Dimensions

VG22 Installation Dimensions

Front pump L1 Rear pump
80 100 125 145 160
L2 L3 L2 L3 L2 L3 L2 L3 L2 L3
80 109.5 320.5 412
100 114 330.5 420 335 429
125 120 342.5 432 347 441 353 453
145 124.8 352 441.5 356.5 450.5 362.5 462.5 367 472
160 129 360.5 450 365 459 371 471 375.5 480.5 380 489
