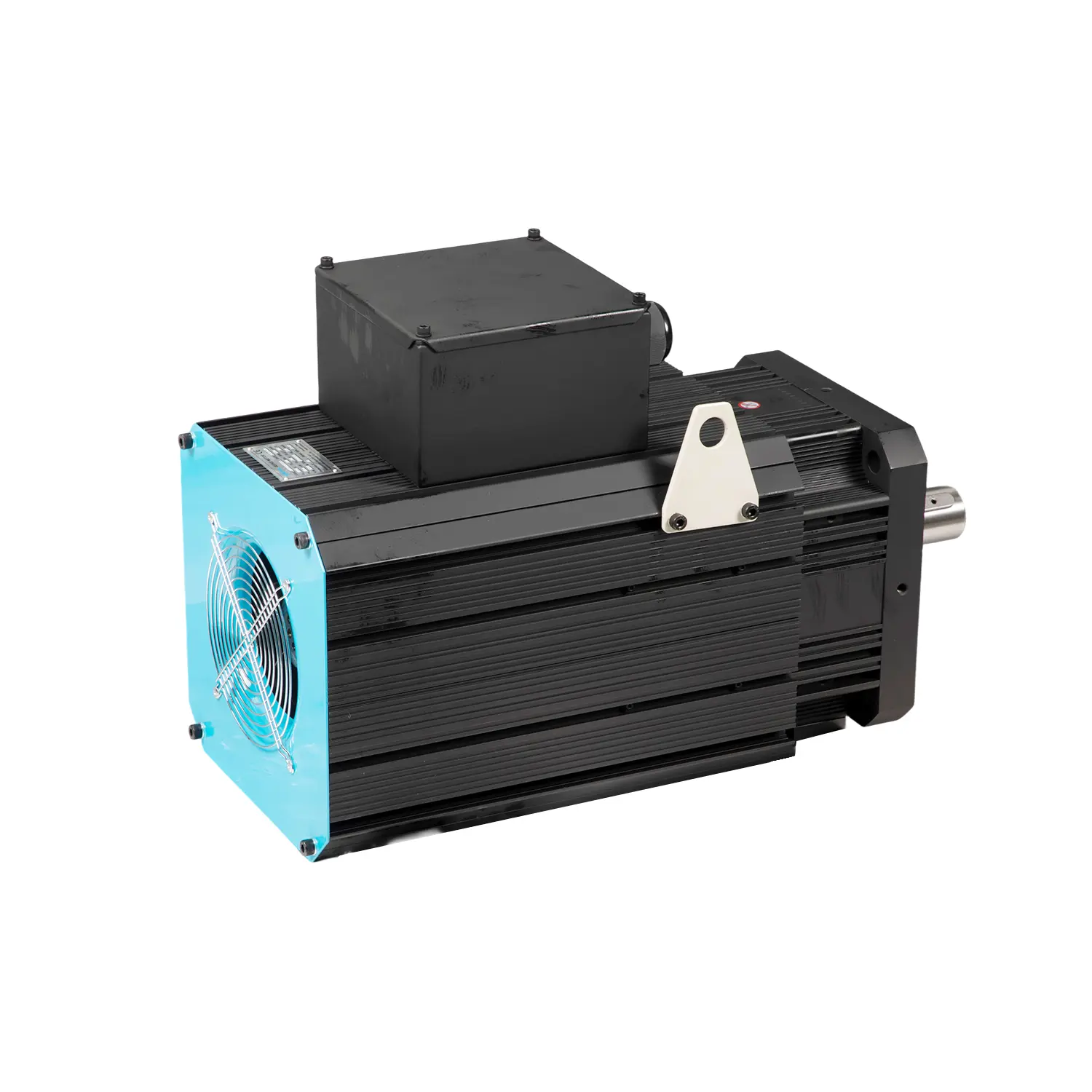

Servo motor ALBERT ABT1007E17.3 of servo pump set integration for injection molding machine

Servo motor ALBERT ABT1007E17.3 of servo pump set integration for injection molding machine

Servo motor ALBERT ABT1007E17.3 of servo pump set integration for injection molding machine

Categories ,

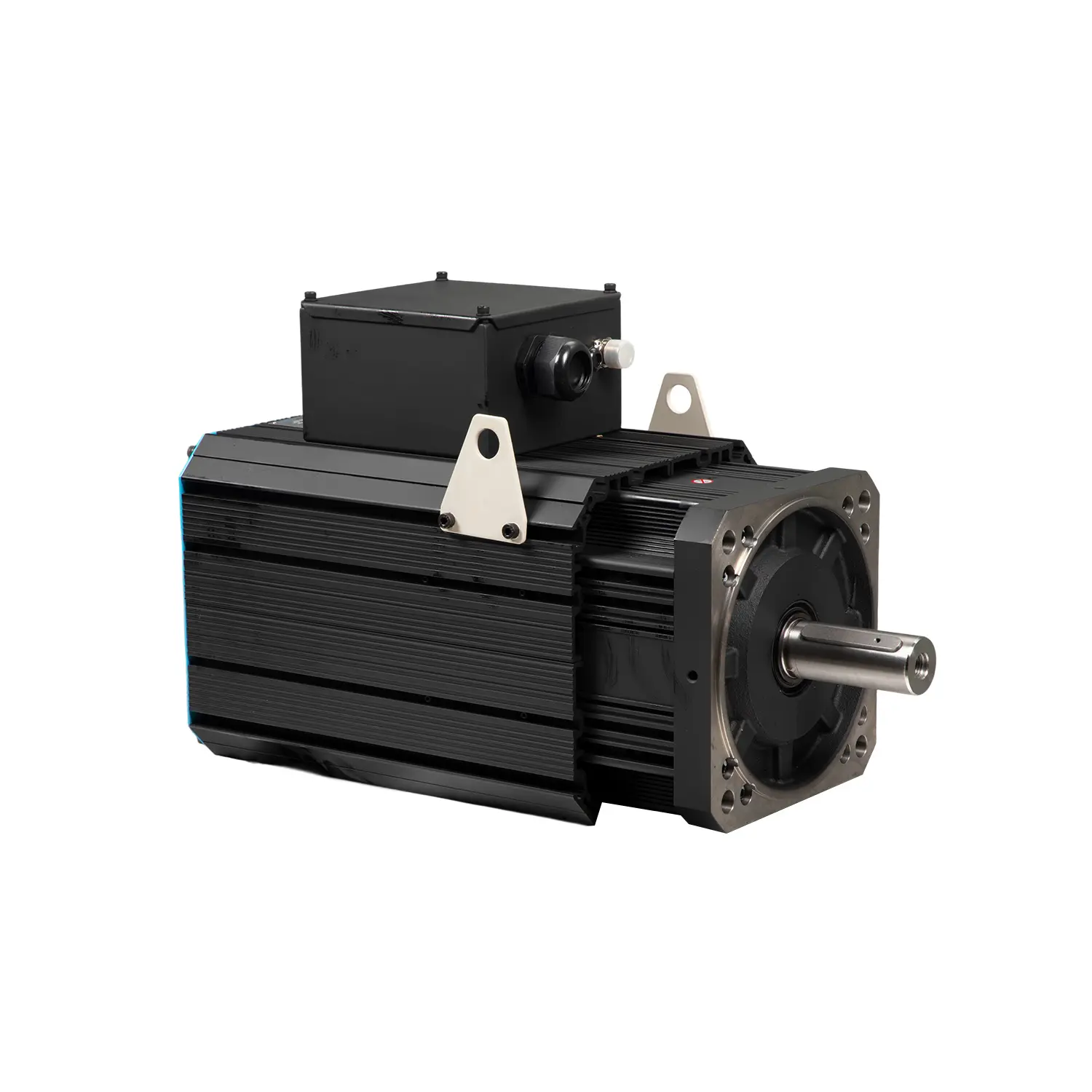

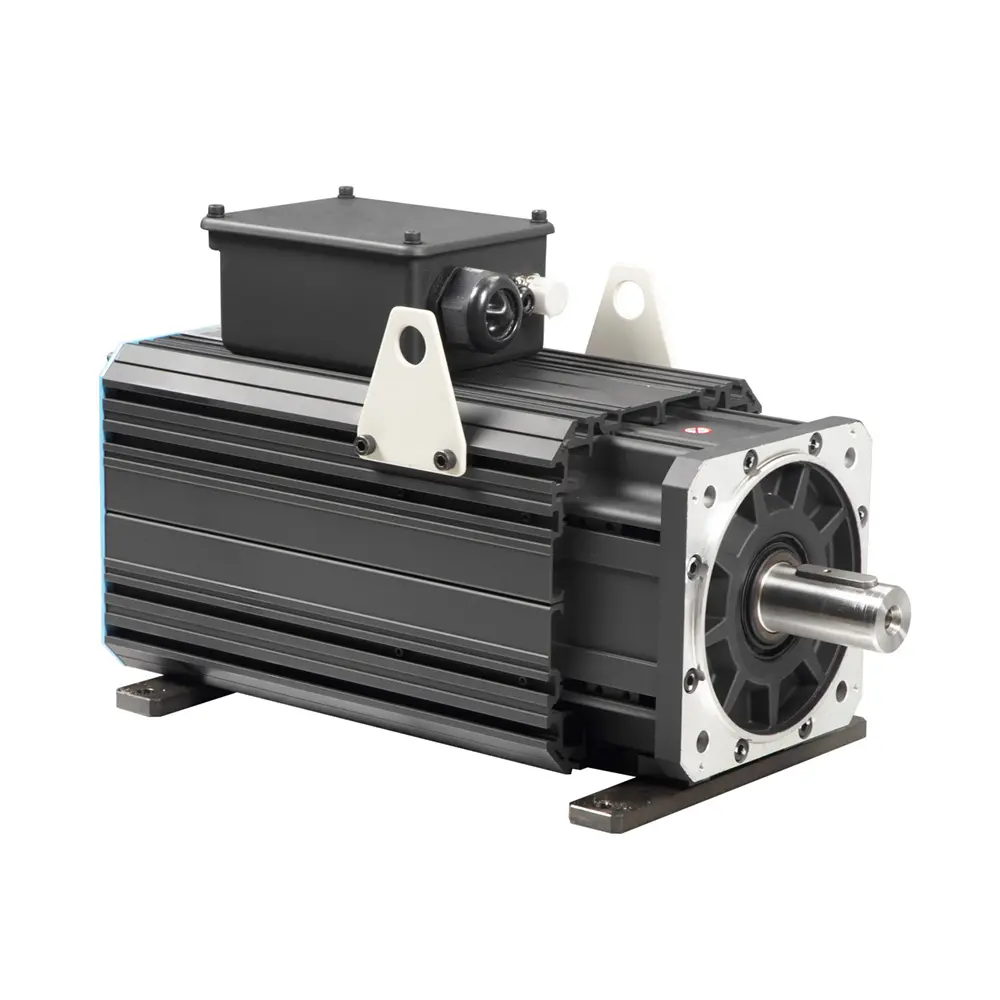

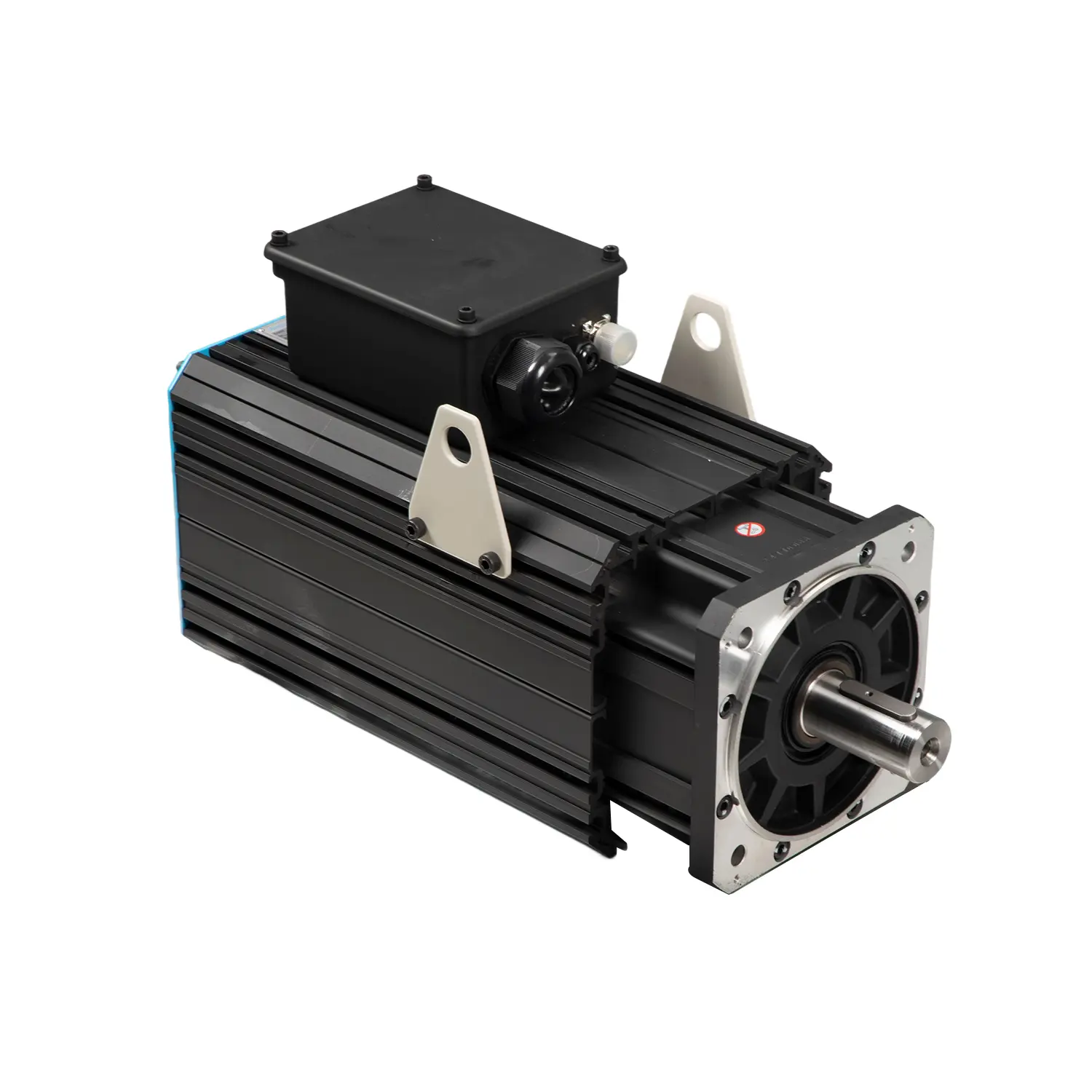

ABT Motor is a high-performance permanent magnetic synchronous servo motor developed by Albert Fluid Power Co., Ltd. (a subsidiary of NVICKS) for the design of the characteristics of oil-electric servo.

Model Representation

ABT 23
Enquiry

Description

ABT Servo motor parameter（air cooling）

server

Motor Model Rated Torque  Rated Speed Rated Current  Rated Power  Torque Constant  Rated Voltage
Unit Nm rpm A Kw Nm/A V
ABT1004E15.3-G5 45 1500 13.6 7.1 3.31 380
ABT1004E17.3-G7 45 1700 15.1 8 2.98 380
ABT1004E20.3-G2 45 2000 16.6 9.4 2.71 380
ABT1005E15.3-B5 55 1500 16.3 8.6 3.37 380
ABT1005E17.3-B7 55 1700 18.5 9.8 2.97 380
ABT1005E20.3-B2 54 2000 21.0 11.3 2.57 380
ABT1005E15.3-G5 68 1500 21.6 10.7 3.14 380
ABT1005E17.3-G7 65 1700 21.3 11.5 3.05 380
ABT1005E20.3-G2 65 2000 24.8 13.6 2.62 380
ABT1007E15.3-B5 71 1500 20.9 11.2 3.40 380
ABT1007E17.3-B7 70 1700 22.5 12.5 3.10 380
ABT1007E20.3-B2 70 2000 24.1 14.6 2.89 380
ABT1007E15.3-G5 90 1500 28.2 14.1 3.19 380
ABT1007E17.3-G7 84 1700 28.3 15.0 2.97 380
ABT1007E20.3-G2 82 2000 31.6 17.4 2.59 380
ABT1008E15.3-B5 94 1500 27.6 14.7 3.26 380
ABT1008E17.3-B7 94 1700 29.5 16.7 3.05 380
ABT1008E20.3-B2 92 2000 32.6 19.2 2.82 380
ABT1008E15.3-G5 114 1500 35.5 17.9 3.21 380
ABT1008E17.3-G7 105 1700 35.3 18.7 2.97 380
ABT1008E20.3-G2 104 2000 38.3 21.8 2.72 380
ABT1010E15.3-B5 110 1500 32.6 17.3 3.37 380
ABT1010E17.3-B7 110 1700 35.7 19.6 3.08 380
ABT1010E20.3-B2 112 2000 39.8 23.4 2.81 380
ABT1010E15.3-G5 135 1500 42.5 21.2 3.18 380
ABT1010E17.3-G7 129 1700 44.8 23.0 2.88 380
ABT1010E20.3-G2 129 2000 50.3 27.0 2.56 380
ABT1012E15.3-G5 144 1500 43.8 22.6 3.20 380
ABT1012E17.3-G7 144 1700 46.0 25.6 3.04 380
ABT1012E20.3-G2 137 2000 49.8 28.7 2.75 380
Motor Model Rated Torque  Rated Speed  Rated Current Rated Power Torque Constant Rated Voltage
Unit Nm rpm A Kw Nm/A V
ABT1013E15.3-B5 156 1500 44.7 24.5 3.49 380
ABT1013E17.3-B7 156 1700 53.3 27.8 2.93 380
ABT1013E20.3-B2 155 2000 60.9 32.5 2.55 380
ABT1013E15.3-G5 180 1500 52.0 28.3 3.46 380
ABT1013E17.3-G7 178 1700 64.8 31.7 2.75 380
ABT1013E20.3-G2 174 2000 66.8 36.4 2.60 380
ABT1015E15.3-G5 205 1500 61.8 32.2 3.32 380
ABT1015E17.3-G7 205 1700 70 36.5 2.93 380
ABT1015E20.3-G2 195 2000 74 40.8 2.64 380
ABT1315E15.3-G5 215 1500 63 33.8 3.41 380
ABT1315E17.3-G7 218 1700 74 38.8 2.95 380
ABT1315E20.3-G2 207 2000 81.5 43.4 2.54 380
ABT1320E15.3-G5 250 1500 80.0 39.3 3.12 380
ABT1320E17.3-G7 247 1700 83.5 44.0 2.96 380
ABT1320E20.3-G2 243 2000 91.6 50.8 2.65 380
ABT1325E15.3-G5 310 1500 97.6 48.6 3.23 380
ABT1325E17.3-G7 295 1700 101.0 52.4 2.97 380
ABT1325E20.3-G2 280 2000 104.0 58.6 2.69 380
ABT1328E15.3-G5 338 1500 103 53.1 3.30 380
ABT1328E17.3-G7 336 1700 110 59.8 3.05 380
ABT1328E20.3-G2 330 2000 125 69.1 2.65 380
ABT1330E15.3-G5 375 1500 107.1 58.9 3.50 380
ABT1330E17.3-G7 369 1700 122.9 65.7 3.00 380
ABT1330E20.3-G2 364 2000 145.5 76.2 2.50 380
ABT1340E15.3-G5 455 1500 140.3 71.5 3.60 380
ABT1340E17.3-G7 450 1700 166.5 80.1 3.00 380
ABT1340E20.3-G2 423 2000 167.0 88.6 2.53 380
ABT1345E15.3-G5 500 1500 166.5 78.5 3.34 380
ABT1345E17.3-G7 492 1700 172.0 87.5 2.85 380
ABT1345E20.3-G2 488 2000 203.2 102.2 2.67 380
ABT1350E15.3-G5 545 1500 166 85.6 3.28 380
ABT1350E17.3-G7 540 1700 183 96.1 2.95 380
ABT1350E20.3-G2 530 2000 203 111 2.62 380
ABT1806E10.3 649 1000 133 68 4.88 380
ABT1806E15.3 636 1500 205 100 3.10 380
ABT1806E20.3 622 2000 270 130 2.31 380
ABT1808E10.3 777 1000 167 81 4.66 380
ABT1808E15.3 762 1500 240 120 3.18 380
ABT1808E20.3 750 2000 320 157 2.35 380
ABT1809E10.3 900 1000 179 94 5.03 380
ABT1809E15.3 882 1500 273 139 3.23 380
ABT1809E20.3 865 2000 370 181 2.38 380
ABT1811E10.3 1040 1000 199 109 5.23 380
ABT1811E15.3 1020 1500 315 160 3.24 380
ABT1811E20.3 990 2000 405 207 2.45 380

ABT Servo motor parameter（oil cooling）

Physis motor (2)

 Motor Model  Rated Torque   Rated Speed   Rated Current  Rated Power  Torque Constant   Rated Voltage
Unit Nm rpm A Kw Nm/A V
ABT25-225-15.3W 247 1500 72.5 38.9 3.41 380
ABT25-225-17.3W 251 1700 85.1 44.6 2.95 380
ABT25-225-20.3W 238 2000 93.7 49.9 2.54 380
ABT25-300-15.3W 336 1500 100.1 52.8 3.36 380
ABT25-300-17.3W 324 1700 109.3 57.7 2.97 380
ABT25-300-20.3W 322 2000 119.6 67.4 2.69 380
ABT25-370-15.3W 425 1500 126.5 66.8 3.36 380
ABT25-370-17.3W 417 1700 144.9 74.3 2.88 380
ABT25-370-20.3W 414 2000 164.5 86.7 2.52 380
ABT25-440-15.3W 493 1500 144.9 77.5 3.41 380
ABT25-440-17.3W 491 1700 167.9 87.4 2.92 380
ABT25-440-20.3W 486 2000 192.1 101.9 2.53 380
ABT25-500-15.3W 566 1500 167.9 88.9 3.37 380
ABT25-500-17.3W 558 1700 193.2 99.2 2.89 380
ABT25-500-20.3W 554 2000 208.2 116.2 2.66 380
ABT25-560-15.3W 627 1500 190.9 98.4 3.28 380
ABT25-560-17.3W 621 1700 210.5 110.5 2.95 380
ABT25-560-20.3W 610 2000 233.5 127.7 2.62 380
ABT30-540-10.3W 580 1000 110 60.7 5.27 380
ABT30-540-15.3W 550 1500 155 86.3 3.55 380
ABT30-540-20.3W 515 2000 200 108 2.58 380
ABT30-700-10.3W 750 1000 144 78.5 5.21 380
ABT30-700-15.3W 710 1500 200 111 3.55 380
ABT30-700-20.3W 660 2000 254 138 2.60 380
ABT30-875-10.3W 955 1000 174 100 5.49 380
ABT30-875-15.3W 900 1500 260 141 3.46 380
ABT30-875-20.3W 840 2000 335 175 2.51 380
ABT30-1050-10.3W 1130 1000 215 118 5.26 380
ABT30-1050-15.3W 1080 1500 305 170 3.54 380
ABT30-1050-20.3W 1000 2000 425 209 2.35 380
ABT30-1250-10.3W 1310 1000 245 137 5.35 380
ABT30-1250-15.3W 1250 1500 366 196 3.42 380
ABT30-1250-20.3W 1170 2000 452 245 2.59 380
ABT30-1400-10.3W 1500 1000 280 157 5.36 380
ABT30-1400-15.3W 1430 1500 455 224 3.14 380
ABT30-1400-20.3W 1350 2000 570 282 2.37 380

Embedded series Installation dimensions（air cooling）

ABT10 Series

detail
Model ABT1004E-G ABT1005E-B ABT1005E-G ABT1007E-B ABT1007E-G ABT1008E-B ABT1008E-G ABT1010E-B ABT1010E-G ABT1012E-G ABT1013E-B ABT1013E-G ABT1015E-G
A [mm] 345 361 381 417 453 489 525 575
B [mm] 265 265 285 310 350 395 395 470

ABT13 Series

detail5
 Model ABT1315E ABT1320E ABT1325E ABT1328E ABT1330E ABT1340E ABT1345E ABT1350E
A[mm] 523.5 577 630.5 684 757.5 811
B [mm] 365.5 419 472.5 526 599.5 653
C [mm] 14  0

-0.027

 14  0

-0.027

 14  0

-0.027

 14  0

-0.027

 18  0

-0.027

 18  0

-0.027
D [mm] 48 +0.011

– 0.005

 48 +0.011

– 0.005

 48 +0.011

– 0.005

 48 +0.011

– 0.005

 60 +0.03

+0.011

 60 +0.03

+0.011

ABT18 Series

detail2
 Model A[mm] B[mm] C[mm] D[mm] E[mm] F[mm] G[mm] H[mm]
ABT1806E 777 412 170 80 85 140 11 22
ABT1808E 783 472 170 80 85 140 11 22
ABT1809E 897 532 170 80 85 140 11 22
ABT1811E 957 592 170 90 95 140 11 25

Embedded series Installation dimensions（oil cooling）

ABT25 Series

detail3 (2)
 Model ABT25-225 ABT25-300 ABT25-370 ABT25-440 ABT25-500 ABT25-560
A 143 197 250 304 357 411
B 503 557 610 664 737 791
Rc Rc1/2 Rc1/2 Rc1/2 Rc3/4 Rc3/4 Rc3/4
D 48 48 48 48 60 60

ABT30  Series

detail4
 Model ABT30-540 ABT30-700 ABT30-875 ABT30-1050 ABT30-1250 ABT30-1400
L（mm) 621 673 725 777 829 881
L1（mm） 174 226 278 330 382 434
L2（mm） 381 438 485 537 589 641

Features & Benefits

ABT SERVO MOTOR
-Premium Efficiency
30%+ energy saving vs. induction motors.
-High Power Density
-Small Size
The use of new embedded electromagnetic and structural solutions, faster response, higher speed, so that the motor structure is compact and simple, easy to install.
-Strong Overload Capacity
With ABT580 series dedicated servo drive, so that the motor overload capacity is stronger.

Applications

Injection Molding Machine
Plastic Extruder
Blow Molding Machine
Shoe Making Machinery
Die Casting Machine
Hydraulic Press
Brick Making Machine
Baling Press
Aluminum Extrusion Press
Powder Metallurgy Equipment
