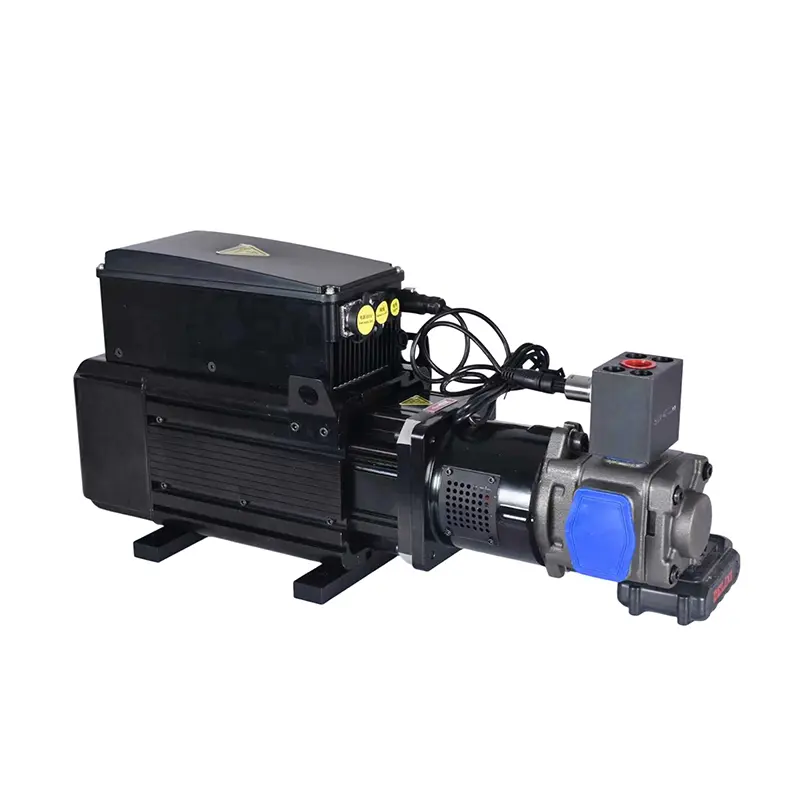

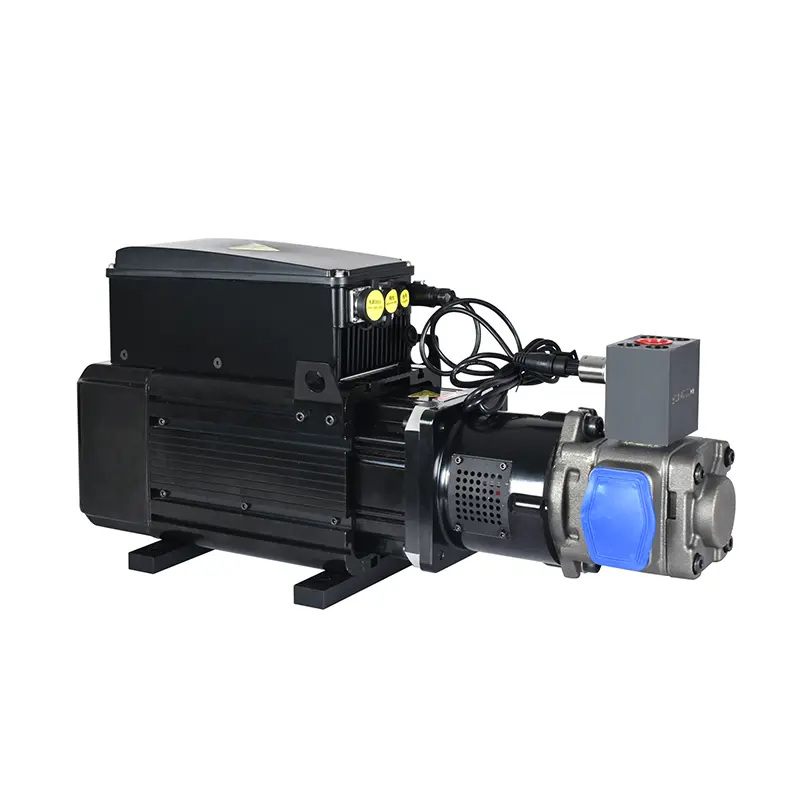

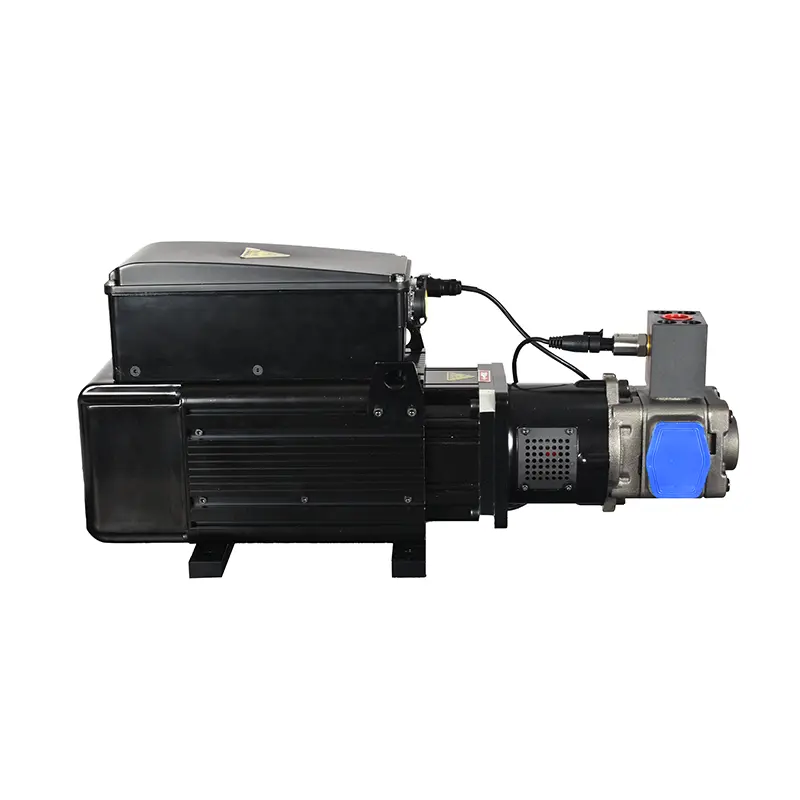

Description
◇Compact & Integrated Design
Features an ultra-compact design, replacing traditional asynchronous motors with a latest- generation permanent magnet synchronous servo motor, reducing dimension by approximately 30% for the same power rating.
The drive module housing is manufactured using die-cast aluminum for superior heat dissipation, supplemented with an independent cooling fan to reduce temperature rise and extend service life. The module is designed for easy disassembly.
The top cover is made of flame-retardant ABS material and includes a waterproof sealing strip for enhanced durability and protection.
This all-in-one integrated solution eliminates the need for a separate external control cabinet, saving significant space, simplifying wiring, and drastically improving the user experience.
◇Superior Performance
Inherits the advantages of synchronous servo technology, providing high-speed dynamic response with a reaction time of approximately 30ms, far surpassing the 200ms+ typically required by asynchronous motor inverter systems.
Enables real-time speed adjustment based on process demands, boosting production efficiency and reducing energy consumption.
Utilizes a dual closed-loop control system, leveraging the motor’s internal resolver and a pressure sensor on the oil circuit, to precisely track and control real-time flow and pressure output for high- precision production requirements.
The full series comes with a built-in braking unit and brake resistor, and is equipped with a 17-bit magnetic resolver supporting auto-tuning for setup.
◇Low Noise & Reduced Oil Temperature
Operates significantly quieter than traditional constant-noise asynchronous motors, with noise levels reduced by 8-10 dB on average. Noise varies with speed, and the cooling fan can be set to auto-stop under low load conditions for even quieter operation.
The servo-based system eliminates the need for high-pressure overflow and often runs at lower speeds according to the process, leading to a notable reduction in oil temperature of 5-10°C.
◇Simplified Installation & Use
Arrives pre-configured based on user parameters, requiring no complex debugging on-site.
The entire series utilizes aviation-style plugs for all connections, enabling true “plug-and-play” operation. This greatly reduces installation complexity, time, labor costs, and the risk of wiring errors.
Configuration Plan
| ① | Series | ALBERT series |
| ② | Power | 037 /055 /075 /085/095/115/15 ]x10⁻¹ KW |
| ③ | Speed | See system parameters |
| ④ | Outlet Port Position | T: Up / L: Left / R: Right / D: Down |
| ⑤ | Pump Displacement For example | 0016 single pump 16CC/2010 double pump 20CC+10CC |
| ⑥ | Flange Mounting | A: Threaded flange /B: Welding flange /C: Sensor flange with holes |
| ⑦ | Foot Mounting | b1: Standard horizontal installation / B1: Vertical installation / 00: Not installed |
| Series | Model KW | Motor Rated Torque Nm | Peak Torque Nm | Motor Rated Speed rpm | Motor Rated Power KW | Motor Rated Current A | Value | Drive Power KW | Drive Rated Current A | 140Bar
Oil Pump Displacement CC |
175Bar
Oil Pump Displacement CC |
210Bar
Oil Pump Displacement CC |
250Bar
Oil Pump Displacement CC |
|
130 |
3.7 | 23 | 46 | 1700 | 4.1 | 7.7 | 3.28 | 3.7 | 9 | 13 | 10 | 08 | 06 |
| 5.5 | 30 | 60 | 1700 | 5.4 | 9.8 | 3.08 | 5.5 | 13 | 16 | 13 | 10 | 08 | |
| 7.5 | 41 | 81 | 1700 | 7.3 | 12.7 | 3.18 | 7.5 | 17 | 20 | 16 | 13 | 10 | |
| 180 | 8.5 | 48 | 96 | 1700 | 8.5 | 15.3 | 3.13 | 11 | 25 | 25 | 20 | 16 | 16 |
| 9.5 | 56 | 105 | 1700 | 9.43 | 18 | 3.11 | 11 | 25 | 32 | 25 | 20 | 16 | |
| 11.5 | 65 | 129 | 1700 | 11.5 | 21 | 3.10 | 15 | 32 | 40 | 32 | 25 | 20 | |
| 15 | 84 | 168 | 1700 | 15 | 27 | 3.11 | 18.5 | 37 | 50 | 40 | 32 | 25 |
System Parameters
| Model
ALBERT |
037 | 055 | 075 | 076 | 095 | 115 | 150 | |
| Motor series | 130 Series | 180 Series | ||||||
| Rated power | Pn [kW] | 3.7 | 5. 5 | 7. 5 | 8.5 | 9. 5 | 1 1. 5 | 15.0 |
| Rated torque | Tn [Nm] | 23 | 30 | 41 | 48 | 56 | 65 | 84 |
| Rated speed | N [rpm] | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 |
| Rated frequency | Fn [Hz] | 113.33 | 113.33 | 113.33 | 113.33 | 113.33 | 113.33 | 113.33 |
| Peak torque | T max [Nm] | 46 | 60 | 81 | 96 | 105 | 129 | 168 |
| Peak speed | N max [rpm] | 2300 | 2300 | 2300 | 2300 | 2300 | 2300 | 2300 |
| Number of pole
pairs |
P | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Torque constant | Kt [Nm/A] | 3.0 | 3.08 | 3.18 | 3.0 | 3.18 | 3.10 | 3.2 |
| Back EMF | EMF
[V/k rpm] |
191 | 193 | 199 | 197 | 195 | 193 | 196 |
| Moment of inertia | J m [kgcm²] | 27.7 | 31.4 | 38.8 | 96.4 | 122.5 | 167.2 | 192.8 |
| Rated input current | In [A] | 8.20 | 9.80 | 12.5 | 15.3 | 18 | 21 | 27 |
| Input power range | Vol [V] | 380 | ||||||
| Input voltage frequency | Fn | 50/60Hz | ||||||
| Input voltage phases | Phase | 3 | ||||||
| Protection level | IP |
|
54 | |||||
| Temperature
Ambient |
rise: 100
tempera |
K
ture: 3 |
℃ | 54 | ||||
Wiring Instructions
External Power Supply
ALBERT180 base dimensions
| Type | A1 | A2 |
| ALBERT085 | 156 | 418 |
| ALBERT095 | 161 | 418 |
| ALBERT115 | 187 | 479 |
| ALBERT150 | 187 | 479 |
ALBERT130 base dimensions
| Type | A1 | A2 |
| ALBERT085 | 156 | 418 |
| ALBERT095 | 161 | 418 |
| ALBERT115 | 187 | 479 |
| ALBERT150 | 187 | 479 |
hydraulic power pack
energy-saving vulcanizers
electro-hydraulic bending machine
injection molding machines
hydraulic presses
