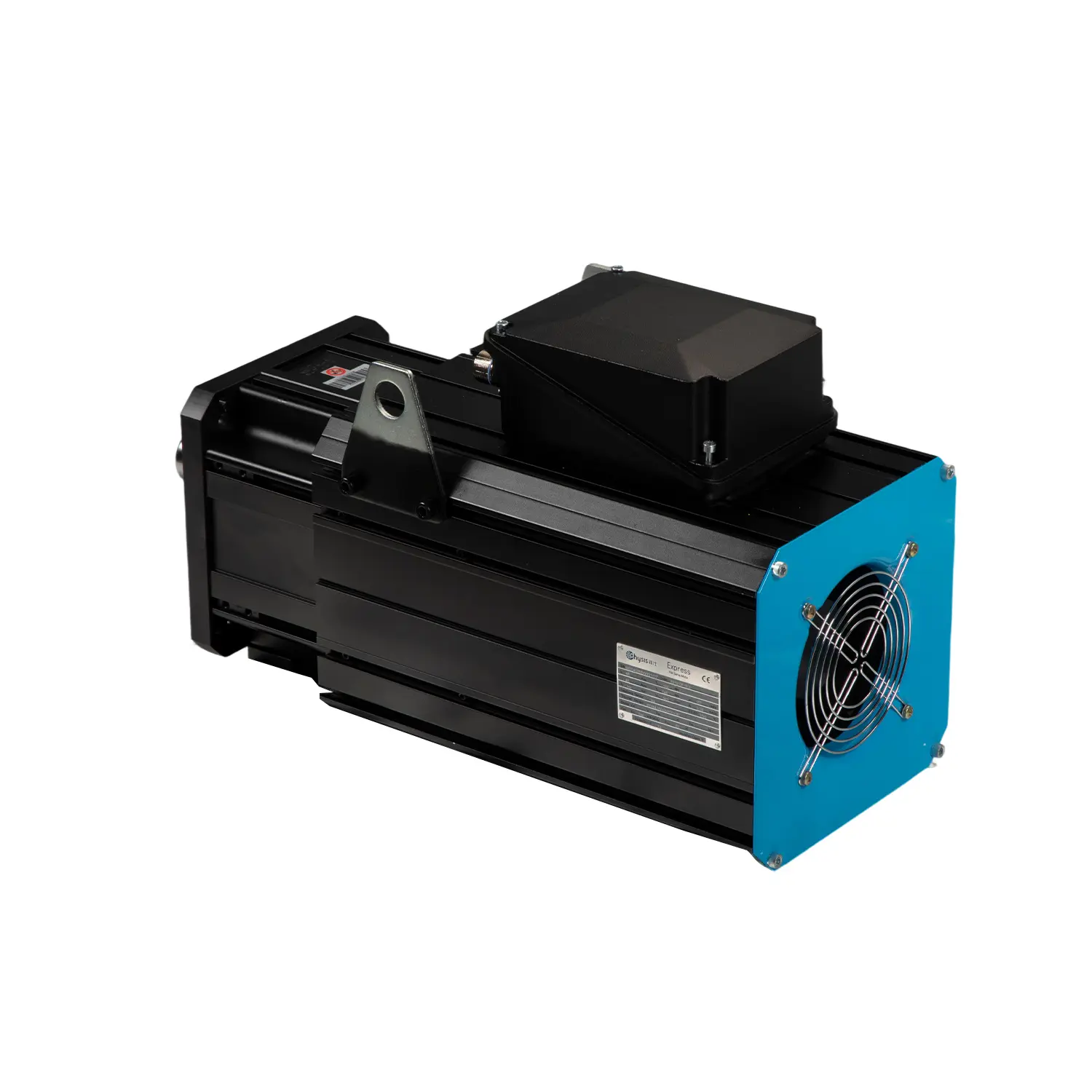

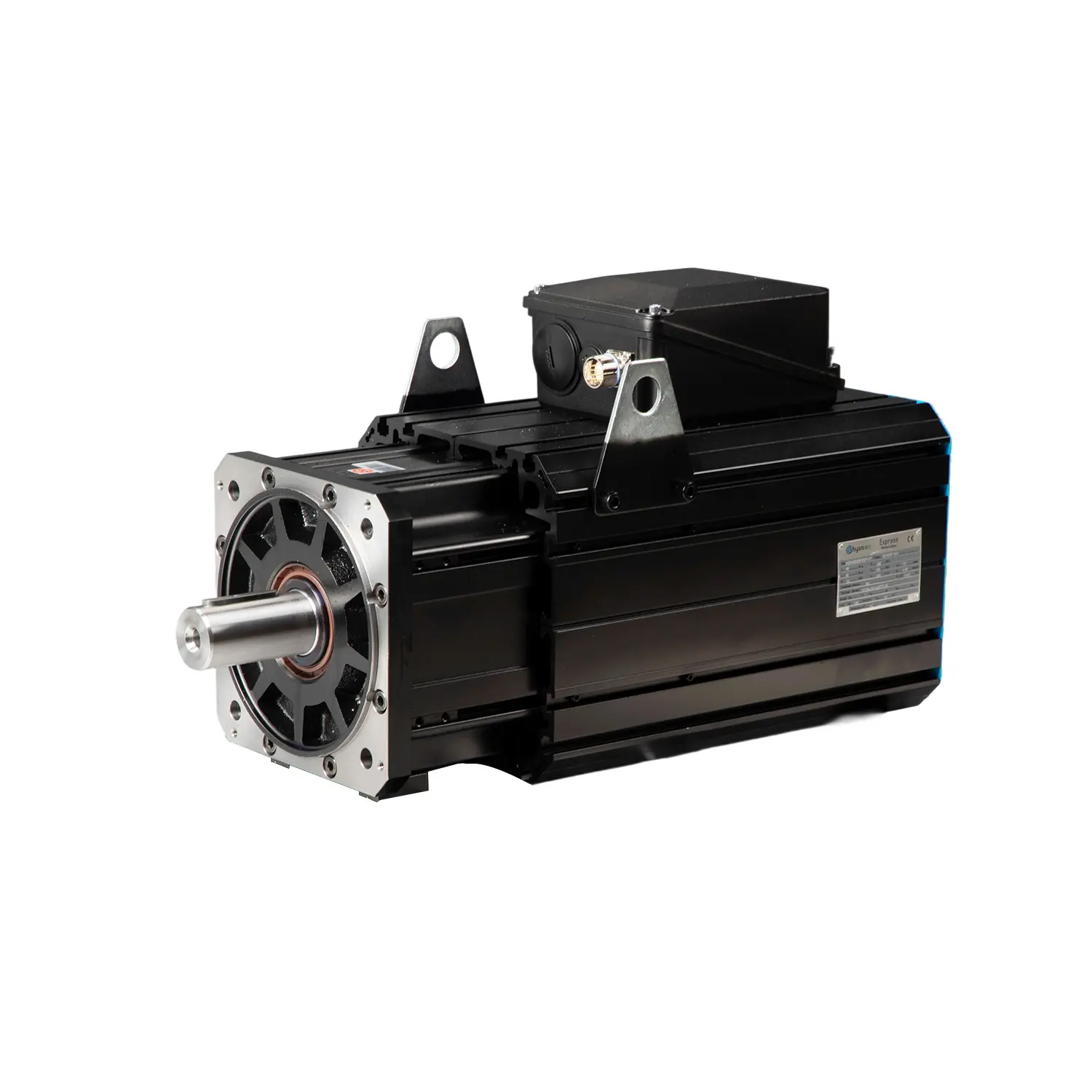

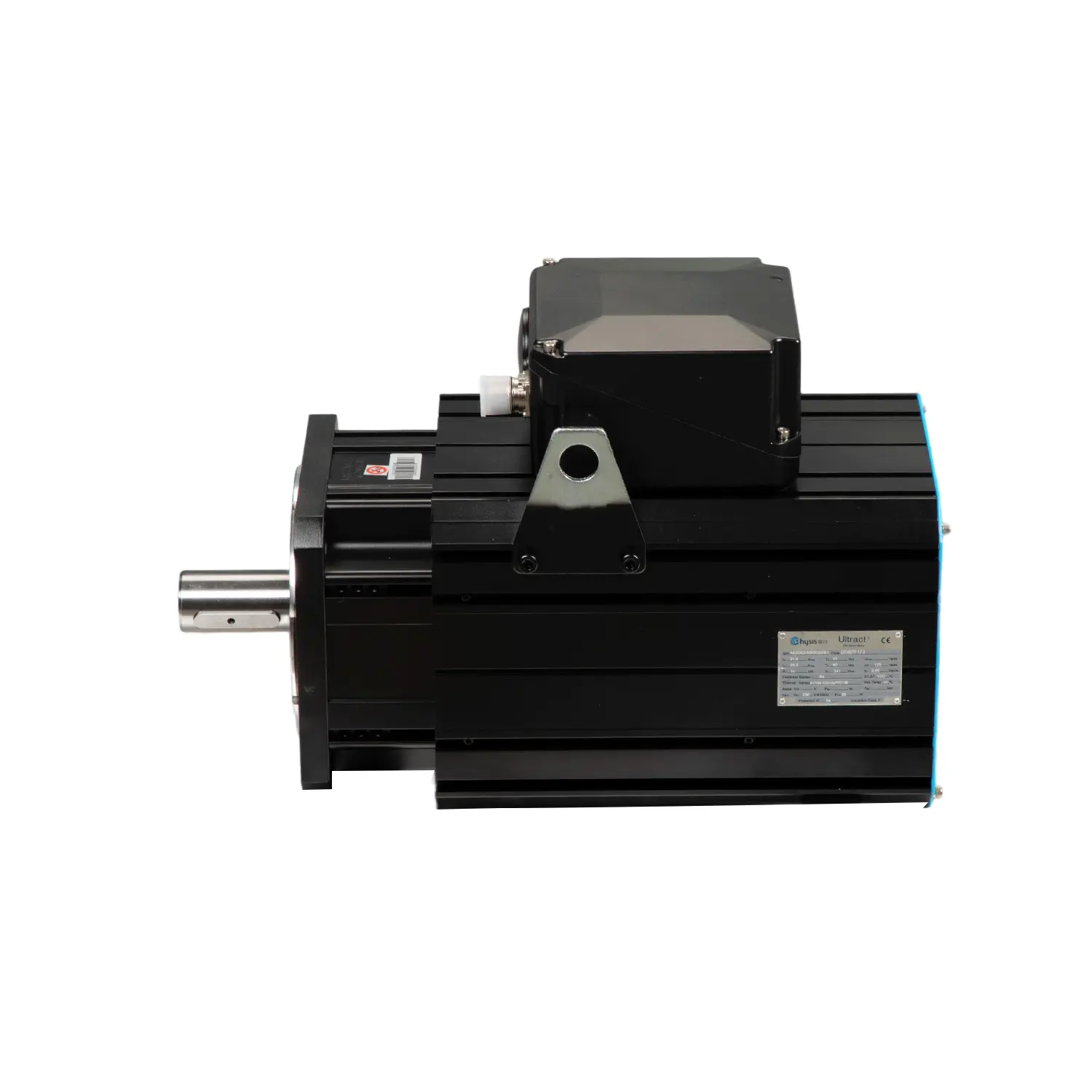

Servo motor Physis E1007F17.3 of servo pump set integration for injection molding machine

Servo motor Physis E1007F17.3 of servo pump set integration for injection molding machine

Servo motor Physis E1007F17.3 of servo pump set integration for injection molding machine

Categories ,

Code Example：E01007F203R40Y0Kb1-TF
Express 0 series motor, size 1007, servo fan cooling, 2000rpm, 380Vac, resolver, 1X – BRX, without brake, signal circular connector, shaft with key, standard feet, look from the direction of motor shaft, terminal box on top, cable hole in front.

Embedded (Air Cooling)  Model Representation

detail
Enquiry

Description

PHYSIS Embedded (air cooling)-EXPRESS SERIES

Physis motor

Parameters

Motor Model Rated speed Rated torque Rated Power  Rated Current  Rated Voltage  Peak Torque Torque constant  Moment of Inertia  Rated Frequncy
Unit rpm Nm kW A V Nm Nm/A Kg*cm2 Hz
E01004F15.3 1500 50 7.9 15 380 145 3.43 56 100
E01004F17.3 1700 50 8.9 17 380 145 2.91 56 113
E01004F20.3 2000 50 10 19 380 145 2.57 56 133
E01005F15.3 1500 75 12 23 380 222 3.38 80 100
E01005F17.3 1700 74 13 26 380 222 2.86 80 113
E01005F20.3 2000 73 15 29 380 222 2.60 80 133
E01007F15.3 1500 100 16 29 380 297 3.46 103 100
E01007F17.3 1700 99 18 32 380 297 3.12 103 113
E01007F20.3 2000 97 20 38 380 297 2.60 103 133
E01008F15.3 1500 124 20 39 380 371 3.25 126 100
E01008F17.3 1700 123 22 41 380 371 3.03 126 113
E01008F20.3 2000 121 25 47 380 371 2.60 126 133
E01010F15.3 1500 148 23 45 380 445 3.38 150 100
E01010F17.3 1700 146 26 52 380 445 2.86 150 113
E01010F20.3 2000 143 30 56 380 445 2.60 150 133
E01012F15.3 1500 171 27 52 380 520 3.33 173 100
E01012F17.3 1700 168 30 57 380 520 3.03 173 113
E01012F20.3 2000 165 34 69 380 520 2.42 173 133
E01013F15.3 1500 193 30 57 380 594 3.46 196 100
E01013F17.3 1700 190 34 62 380 594 3.12 196 113
E01013F20.3 2000 187 39 69 380 594 2.77 196 133
E01215F15.3 1500 206 32 64 380 467 3.27 253 100
E01215F17.3 1700 203 36 70 380 467 2.98 253 113
E01215F20.3 2000 197 41 75 380 467 2.67 253 133
E01220F15.3 1500 255 40 78 380 585 3.34 310 100
E01220F17.3 1700 250 45 86 380 585 2.98 310 113
E01220F20.3 2000 243 51 95 380 585 2.60 310 133
E01225F15.3 1500 300 47 86 380 700 3.57 370 100
E01225F17.3 1700 294 52 96 380 700 3.13 370 113
E01225F20.3 2000 285 60 109 380 700 2.67 370 133
E01230F15.3 1500 351 55 100 380 800 3.64 427 100
E01230F17.3 1700 344 61 114 380 800 3.13 427 113
E01230F20.3 2000 336 70 134 380 800 2.60 427 133
E01235F15.3 1500 395 62 115 380 920 3.57 485 100
E01235F17.3 1700 387 69 135 380 920 2.98 485 113
E01235F20.3 2000 377 79 164 380 920 2.38 485 133
E01240F15.3 1500 439 69 136 380 1035 3.35 – 100
E01240F20.3 200 423 89 169 380 1035 2.68 – 133
Motor Model  Rated speed Rated torque Rated Power Rated Current  Rated Voltage Peak Torque Torque constant
Unit rpm Nm kW A V Nm Nm/A
E01806F103 1000 592 62 120 380 1270 4.76
E01806F123 1200 584 73.4 138 380 1254 3.58
E01806F153 1500 572 90 161 380 1141 3.4
E01808F103 1000 754 79 147 380 1420 4.83
E01808F123 1200 752 95 170 380 1434 4.23
E01808F153. 1500 704 110 203 380 1400 3.32
E01809F103 1000 878 92 175 380 1680 4.76
E01809F123 1200 845 106 198 380 1680 4.08
E01809F153 1500 842 132 237 380 1677 3.4
E01811F103 1000 1063 111 202 380 2040 4.97
E01811F123 1200 1055 133 243 380 2043 4.14
E01811F153 1500 1020 160 295 380 2040 3.41
E01813F103 1000 1221 127.9 240 380 2660 4.90
E01813F123 1200 1200 150.8 295 380 2627 3.92
E01813F153 1500 1175 185 327 380 2303 3.44
E01815F103 1000 1344 140.7 255 380 2999 5.09
E01815F123 1200 1316 165.4 321 380 3000 3.96
E01815F153 1500 1275 200 360 380 2550 3.40
E01817F103 1000 1470 153.9 270 380 3545 5.34
E01817F153 1500 1405 220 415 380 2830 3.33

PHYSIS Embedded (Oil Cooling)-EXPRESS SERIES

Physis motor (2)

Parameters

 Motor Model  Rated speed  Rated torque  Rated Power  Rated Current  Rated Voltage   Peak Torque  Torque constant
  Unit rpm Nm kW A V Nm Nm/A
E1806Y103 1000 698 73.1 140 380 1285 4.76
E1806Y123 1200 686 86.2 170 372 1283.5 3.85
E1806Y153 1500 678 106.5 204 382 1288 3.17
E1806Y173 1700 664 118.2 233 369 1240 2.71
E1808Y103 1000 902.8 94.5 190 365 1663 4.53
E1808Y123 1200 906 113.8 220 378 1664 3.93
E1808Y153 1500 893 140.3 282 360 1658 3.02
E1809Y103 1000 1042.5 109.2 209 380 1897 4.76
E1809Y123 1200 1038 130.4 265 360 1895 3.74
E1809Y153 1500 1017 159.7 317 365 1860 3.06
E1809Y173 1700 1001 178.2 351 368 1856 2.72
E1811Y123 1200 1235 155.2 287 380 2360 4.13
E1811Y153 1500 1267 199 365 380 2291 3.32
E1811Y173 1700 1238 220.4 410 380 2360 2.89
E1811Y123 1200 1468 184.5 359 372 2790 3.90
E1813Y153 1500 1442 226.5 403 410 2694 3.44
E1815Y123 1200 1692 212.6 410 377 3220 3.94
E1815Y153 1500 1628 255.7 460 403 3124 3.40
E1815Y173 1700 1580 281.3 540 377 3240 2.83
E1817Y123 1200 1915 240.6 478 366 3648 3.83
E1817Y153 1500 1825 286.6 550 380 3534 3.21

Embedded series Installation dimensions

10F Series standard shaft motor

Physis motor1
Type E1004F E1005F E1007F E1008F E1010F E1012F E1013F
B 267 285 312 354 396 400 471
L 341.5 377.5 413.5 449.5 485.5 526.5 557.5

12F Series standard shaft motor

Physis motor3
Type E1215F E1220F E1225F E1230F E1235F E1240F
B 400 450 500 550 600 650
L 539 589 639 689 739 798

18F Embedded Series standard shaft motor drawings

Physis motor2
Type A1 A2 L1 D KEY
E1806F 682 330 170 80m6 22×14×140
E1808F 742 390 170 80m6 22×14×140
E1809F 772 420 170 80m6 22×14×140
E1811F 832 480 170 80m6（90m6） 22×14×140（25×14×140）
E1813F 892 540 170 90m6 25×14×140
E1815F 962 610 170 90m6 25×14×140
E1817F 1012 660 170 90m6 25×14×140

Features & Benefits

Physis motor
-High Power Density
Provide GB30549, Level 1 energy efficiency and IEC60034, IE4 solution.
-Small Size
The use of new embedded electromagnetic and structural solutions, faster response, higher speed, so that the motor structure is compact and simple, easy to install.
-Strong Overload Capacity
With PH600 series dedicated servo drive, so that the motor overload capacity is stronger.

Applications

Injection Molding Machine
Plastic Extruder
Blow Molding Machine
Shoe Making Machinery
Die Casting Machine
Hydraulic Press
Brick Making Machine
Baling Press
Aluminum Extrusion Press
Powder Metallurgy Equipment
