Description
Optional combination Solution
| Solution | Pump | Servo Motor | Servo Drive | Model number |

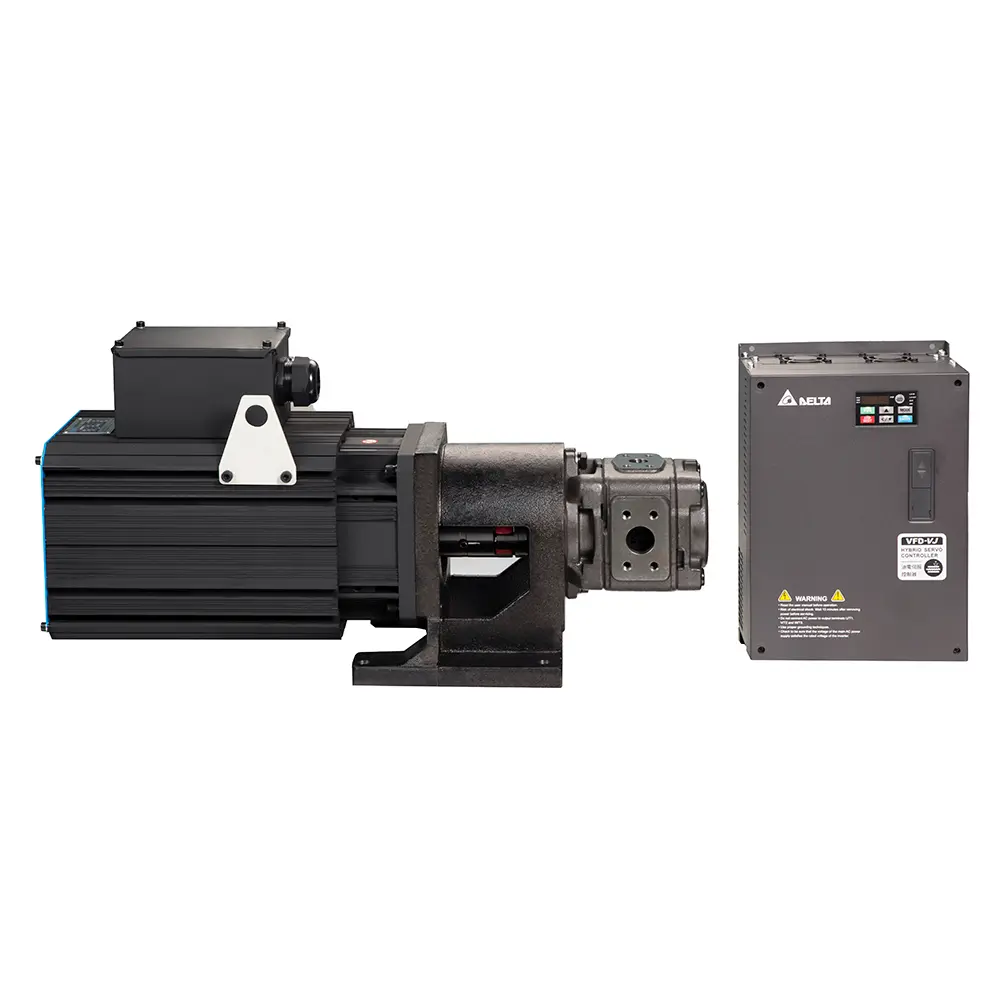

| 1 | VG /gear pump | ABT | ABT | VG1-50-ABT1007E-ABT15KW |
| 2 | VG /gear pump | ABT | Delta | VG1-50-ABT1007E-Delta 15KW |
| 3 | VG /gear pump | Physis | ABT | VG1-50-E1007F-ABT15KW |
| 4 | VG /gear pump | Physis | Delta | VG1-50-E1007F-Delta 15KW |
| 5 | ABT /servo vane pump | ABT | ABT | ABT1-50-ABT1007E-ABT15KW |
| 6 | ABT /servo vane pump | ABT | Delta | ABT1-50-ABT1007E-Delta 15KW |
| 7 | ABT /servo vane pump | Physis | Delta | ABT1-50-E1007F-Delta 15KW |
| 8 | ABT /servo vane pump | Physis | ABT | ABT1-50-E1007F-ABT15KW |
| 9 | Sumitomo /gear pump | ABT | ABT | QT52-50-ABT1007E-ABT15KW |
| 10 | Sumitomo /gear pump | ABT | Delta | QT52-50-ABT1007E-Delta 15KW |
| 11 | Sumitomo /gear pump | Physis | Delta | QT52-50-E1007F-Delta 15KW |
| 12 | Sumitomo /gear pump | Physis | ABT | QT52-50-E1007F-ABT15KW |
| 13 | Eckerle / gear pump | ABT | Delta | Eipc3-50-ABT1007E-Delta 15KW |
| 14 | Eckerle / gear pump | Physis | Delta | Eipc3-50-E1007F-Delta 15KW |
Servo system configuration table
| Pump Model | Pump Bracket Model | Coupling Model | Servo Motor Series | Quantity |
| VG0 | BTJ-X00 | DL80/42b-20 | 10※※F | 1 |
| VG1 | BTJ-X01 | DL80/42b-25 | 10※※F | 1 |
| VG10 | BTJ-X01 | DL80/42b-25 | 10※※F | 1 |
| VG11 | BTJ-X01 | DL80/42b-25 | 10※※F | 1 |
| VG2、VG21 | BTJ-X06 | DL95/42b-40 | 10※※F | 1 |
| VG22 | BTJ-X06 | DL95/42b-40 | 10※※F | 1 |
| VG2、VG21 | BTJ-X07 | DL95/48b-40 | 13※※F | 1 |
| VG22 | BTJ-X07 | DL95/48b-40 | 13※※F | 1 |
| QT42-31.5 | BTJ-X01 | DL80/42b-32 | 10※※F | 1 |
| QT42-40 | BTJ-X01 | DL80/42b-32 | 10※※F | 1 |
| QT52-50 | BTJ-X02 | DL95/42b-40 | 10※※F | 1 |
| QT52-63 | BTJ-X02 | DL95/42b-40 | 10※※F | 1 |
| QT62-80 | BTJ-X06 | DL95/42b-50 | 10※※F | 1 |
| QT62-100 | BTJ-X06 | DL95/42b-50 | 10※※F | 1 |
| QT62-125 | BTJ-X06 | DL95/42b-50 | 10※※F | 1 |
| QT62-125 | BTJ-X07 | DL95/48b-50 | 13※※F | 1 |
| ABT1/ABT11 | BTJ-X02 | DL80/42b-25 | 10※※F | 1 |
| ABT2/ABT21/ABT22 | BTJ-X06 | DL95/42b-40 | 10※※F | 1 |
| ABT2/ABT21/ABT22 | BTJ-X07 | DL95/48b-40 | 13※※F | 1 |
Massive Energy Savings (Up to 80%): The servo motor runs only at the speed needed, delivering precise flow/pressure on demand. This eliminates throttling losses and constant energy waste, drastically cutting costs and heat.
Ultra-Precise Control & Speed: Advanced algorithms provide rapid, accurate motor speed adjustments for smooth, responsive hydraulic power. Enables critical speed, position, and force control for complex motions.
Quieter Operation & Cooler Running: Reduced pump speeds lower noise significantly. Minimized energy losses also mean far less waste heat, improving the work environment and fluid life.
Enhanced Reliability & Lower Maintenance: Cooler operation, reduced pressure spikes, and fewer contamination-sensitive valves extend component life and reduce maintenance costs.
Compact & Simplified Design: Integrated pump, motor, and drive offer a smaller footprint. Simplified plumbing reduces complexity and potential leaks.
Smart Connectivity: Servo drives feature sophisticated control modes (pressure/flow/position) and standard interfaces (EtherCAT, CANopen, etc.) for easy PLC/IoT integration and optimization.
Optimized Hydraulics: Precision internal gear pumps ensure compact size, smooth/low-pulsation flow, efficiency, and robustness.
How It Works
Portfolio

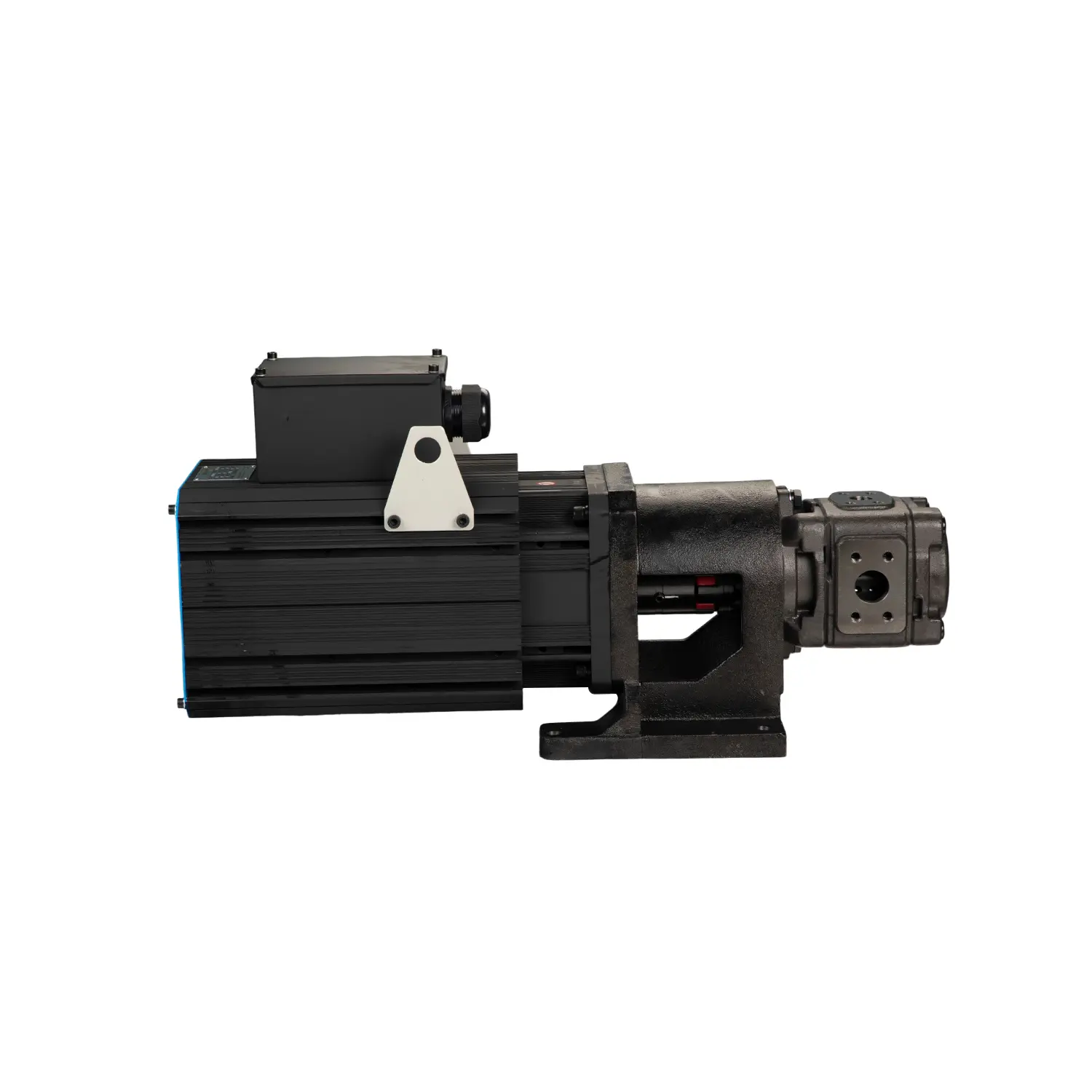

VG Series gear pump

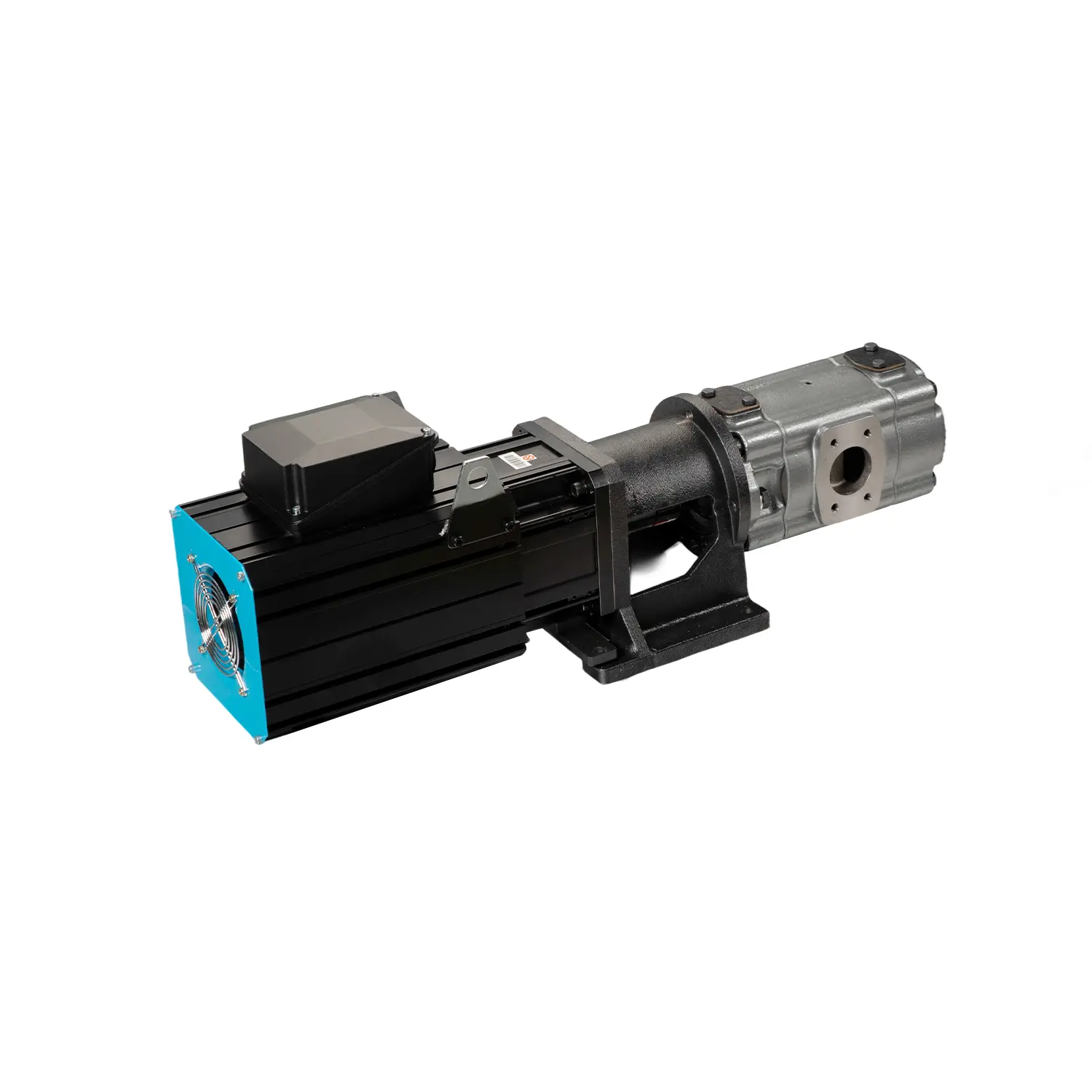

American Albert (ABT)servo vane pump
T7-E Series servo vane pump
Eckerle gear pump
Sumitomo gear pump
American Albert (ABT) servo motor
Physis servo motor
American Albert (ABT) servo driver
Delta servo driver
KEBA Computer
Horizontal bracket
Vertical bracket
Motor mounting bracket
Coupling
American NVK Pressure sensor
GEFRAN Pressure sensor
Aerial insertion coding line
Inlet and outlet flanges
