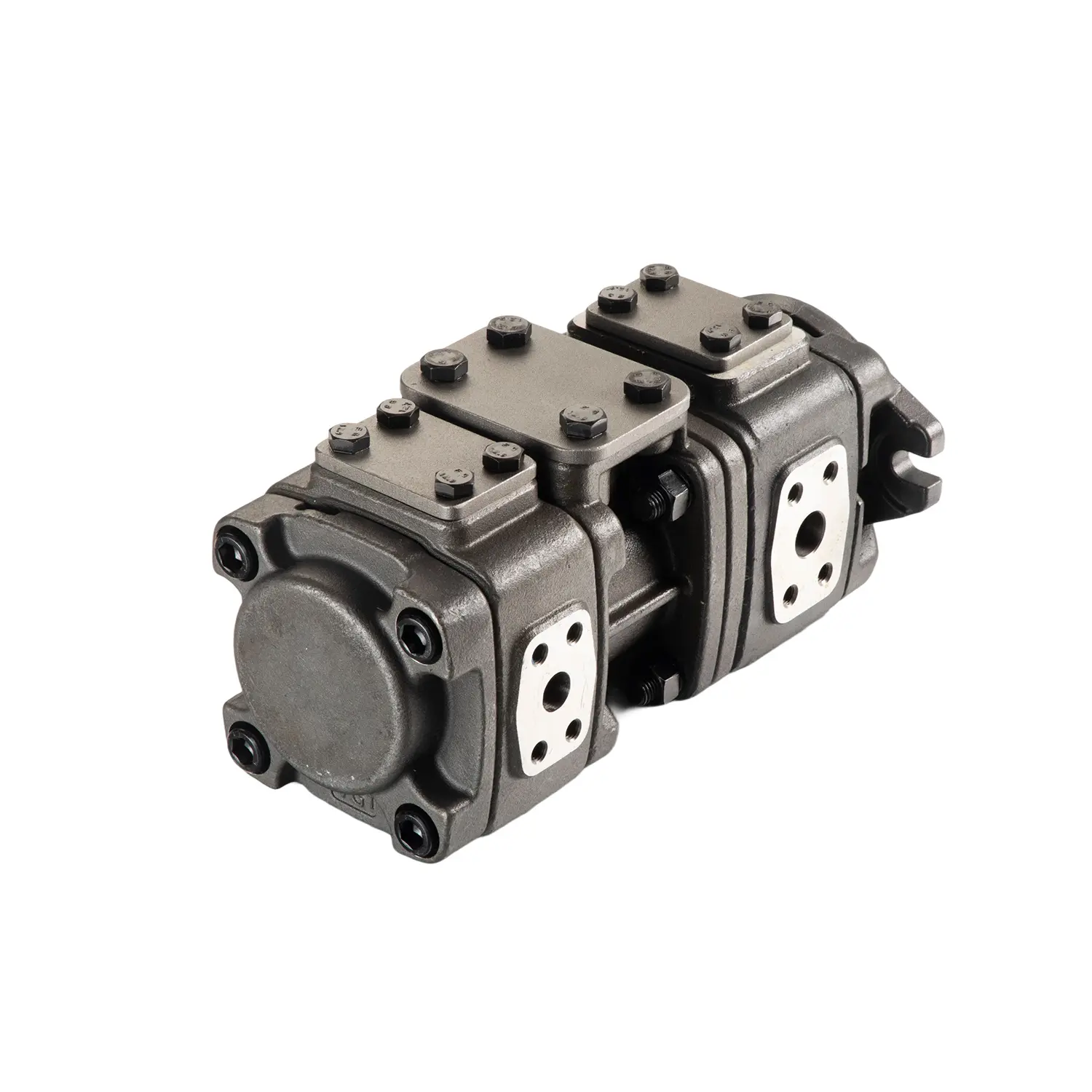

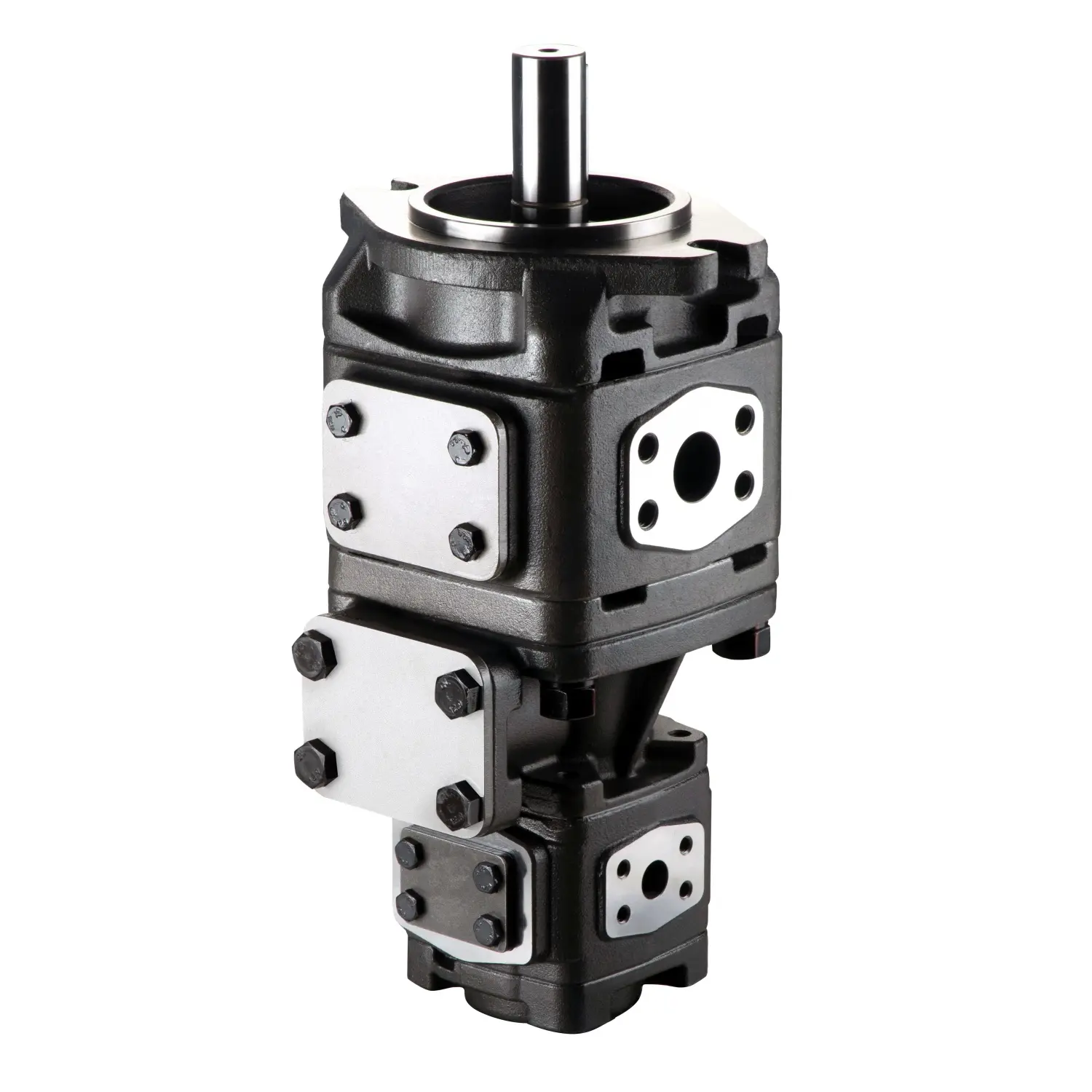

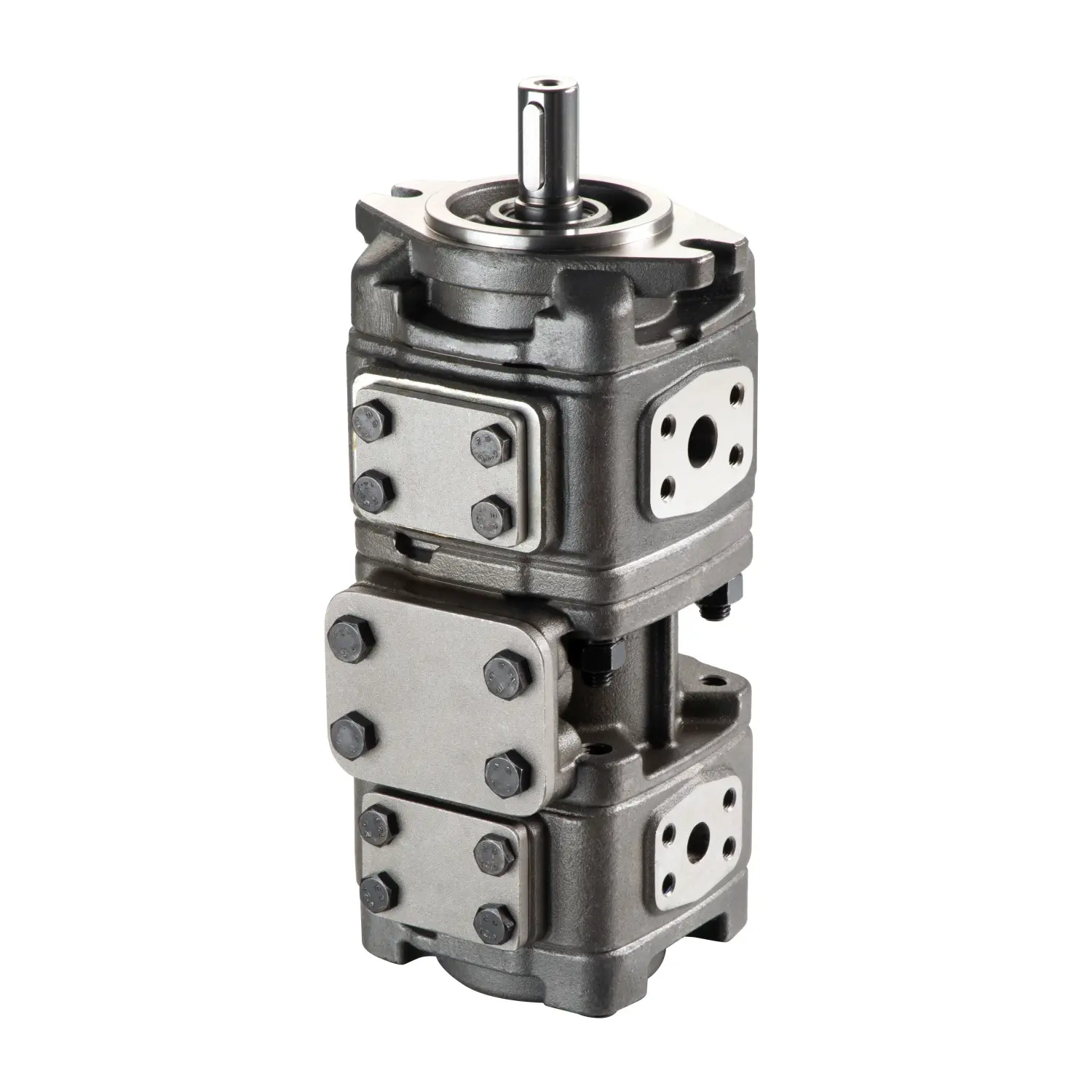

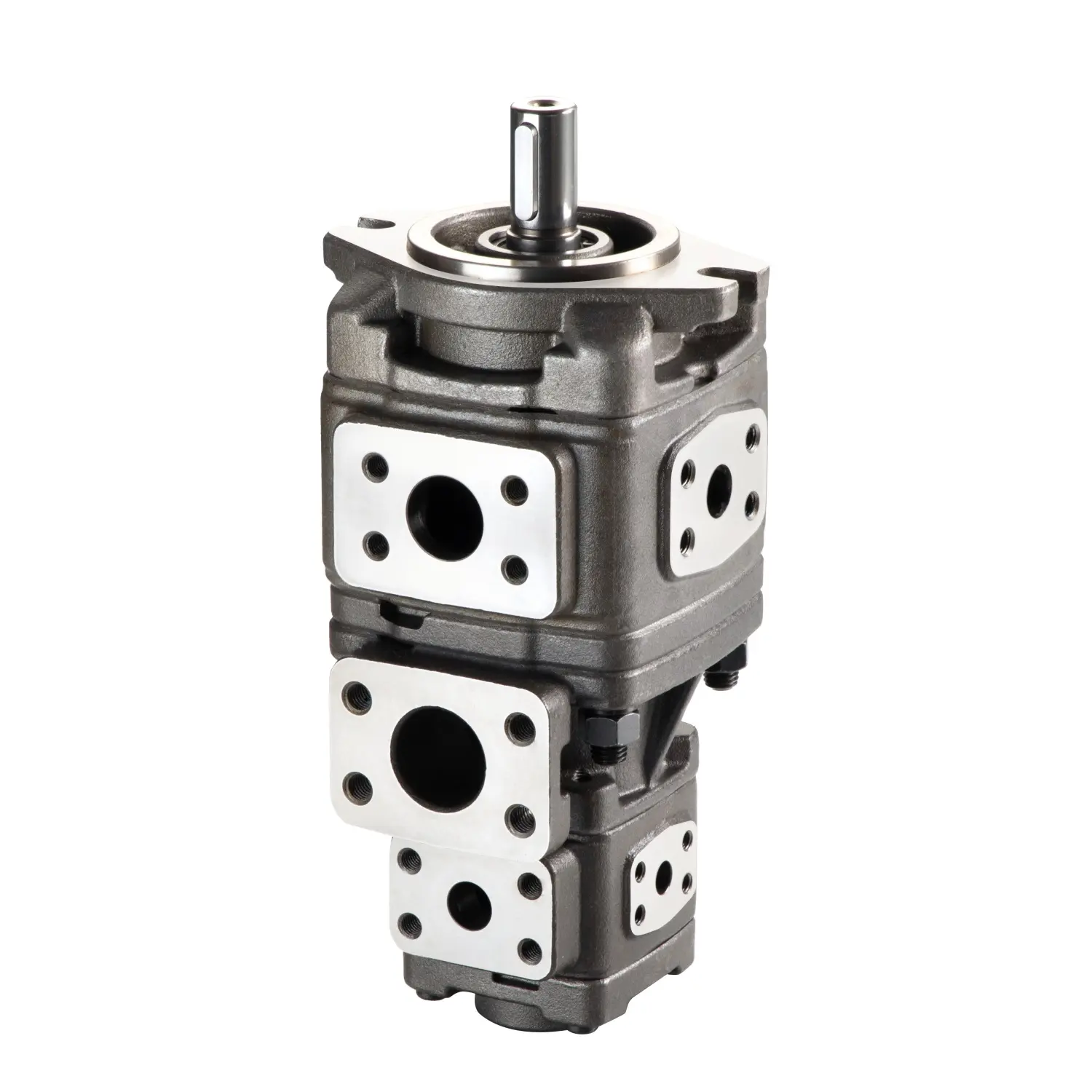

Description
.
Model Representation
| VG11D | -63 | -40 | R | E | W | -A1 |
| Series | ml/r Flow code of shaft end pump | ml/r Flow code of cover end pump | Rotation direction | Shaft type | Sealing material | Design number |
| VG10D | 25、32、40、50、63 | 8、10、13、16、
20、25 |
Viewed from shaft end of pump
R= Right hand for clockwise L- Left hand for counter- clockwise |
E= Straight key shaft
R=SAE Spline shaft |
W= (Buna) NBR
V= (Viton) FKM |
A1 |
| VG11D | 25、32、40、50、63 | 25、32、40、50、63 | ||||
| VG21D | 80、100、125、
145、160 |
25、32、40、50、63 | ||||
| VG22D | 80、100、125、
145、160 |
80、100、125、
145、160 |
VG10D Installation Dimensions
| Front pump | L1 | L2 | Rear pump | |||||||||||
| 08 | 10 | 13 | 16 | 20 | 25 | |||||||||
| L3 | L4 | L3 | L4 | L3 | L4 | L3 | L4 | L3 | L4 | L3 | L4 | |||
| 25 | 73 | 153.5 | 138.5 | 264.5 | 140.5 | 268.5 | 143.8 | 275 | 146.5 | 280.5 | 150.5 | 288.5 | 154.5 | 296.5 |
| 32 | 76.5 | 160.5 | 142 | 271.5 | 144 | 275.5 | 147.3 | 282 | 150 | 287.5 | 154 | 295.5 | 158 | 303.5 |
| 40 | 80 | 167.5 | 145.5 | 278.5 | 147.5 | 282.5 | 150.8 | 289 | 153.5 | 294.5 | 157.5 | 302.5 | 161.5 | 310.5 |
| 50 | 85 | 177.5 | 150.5 | 288.5 | 152.5 | 292.5 | 155.8 | 299 | 158.5 | 304.5 | 162.5 | 312.5 | 166.5 | 320.5 |
| 63 | 92 | 191.5 | 157.5 | 302.5 | 159.5 | 306.5 | 162.8 | 313 | 165.5 | 318.5 | 169.5 | 326.5 | 173.5 | 334.5 |
VG11D Installation Dimensions
| Front pump | L1 | L2 | Rear pump | |||||||||
| 25 | 32 | 40 | 50 | 63 | ||||||||
| L3 | L4 | L3 | L4 | L3 | L4 | L3 | L4 | L3 | L4 | |||
| 25 | 73 | 161 | 161 | 300 | ||||||||
| 32 | 76.5 | 168 | 164.5 | 307 | 168 | 314 | ||||||
| 40 | 80 | 175 | 168 | 314 | 171.5 | 321 | 175 | 328 | ||||
| 50 | 85 | 185 | 173 | 324 | 176.5 | 331 | 180 | 338 | 185 | 348 | ||
| 63 | 92 | 199 | 180 | 338 | 183.5 | 345 | 187 | 352 | 192 | 362 | 199 | 376 |
VG21D Installation Dimensions
| Front pump |
L1 |
L2 |
Rear pump | |||||||||
| 25 | 32 | 40 | 50 | 63 | ||||||||
| L3 | L4 | L3 | L4 | L3 | L4 | L3 | L4 | L3 | L4 | |||
| 80 | 109.5 | 231 | 204.5 | 380 | 208 | 387 | 211.5 | 394 | 216.5 | 404 | 223.5 | 418 |
| 100 | 114 | 240 | 209 | 389 | 212.5 | 396 | 216 | 403 | 221 | 413 | 228 | 427 |
| 125 | 120 | 252 | 215 | 401 | 218.5 | 408 | 222 | 415 | 227 | 425 | 234 | 439 |
| 145 | 124.8 | 261.5 | 219.8 | 410.5 | 223.3 | 417.5 | 226.8 | 424.5 | 231.8 | 434.5 | 238.8 | 448.5 |
| 160 | 129 | 270 | 224 | 419 | 227.5 | 426 | 231 | 433 | 236 | 443 | 243 | 457 |
VG22D Installation Dimensions
| Front pump | L1 | L2 | Rear pump | |||||||||
| 80 | 100 | 125 | 145 | 160 | ||||||||
| L3 | L4 | L3 | L4 | L3 | L4 | L3 | L4 | L3 | L4 | |||
| 80 | 109.5 | 238.5 | 233 | 437 | ||||||||
| 100 | 114 | 247.5 | 237.5 | 446 | 242 | 455 | ||||||
| 125 | 120 | 259.5 | 243.5 | 458 | 248 | 467 | 254 | 479 | ||||
| 145 | 124.8 | 269 | 248.3 | 467.5 | 252.8 | 476.5 | 258.8 | 488.5 | 263.5 | 498 | ||
| 160 | 129 | 277.5 | 252.5 | 476 | 257 | 485 | 263 | 497 | 267.8 | 506.5 | 272 | 515 |
VG series double pump inlet and outlet oil port connection size
| Model | S | B1 | B2 | B3 | Specifications | P | B4 | B5 | B6 | |
| VG10D | Φ38 | M12
Depth 20 |
69.9 | 35.7 | G0 | 8 | Φ13 | M8
Depth 13 |
38.1 | 17.5 |
| 10 | ||||||||||
| 13 | ||||||||||
| 16 | ||||||||||
| VG11D | Φ51 | 77.8 | 42.9 | 20 | Φ18 | M10
Depth 15 |
47.6 | 22.2 | ||
| 25 | Φ19 | |||||||||
| G1 | 25 | Φ18 | M10
Depth 17 |
47.6 | 22.2 | |||||
| 32 | ||||||||||
| 40 | Φ20 | 52.4 | 26.2 | |||||||
| VG21D | Φ76 | M16
Depth 25 |
106.4 | 61.9 | 50 | |||||
| 63 | ||||||||||
| G2 | 80 | Φ32 | M12
Depth 20 |
69.9 | 35.7 | |||||
| VG22D | Φ89 | 120.7 | 69.9 | 100 | ||||||
| 125 | Φ38 | M16
深25 Depth |
79.4 | 36.5 | ||||||
| 145 | ||||||||||
| 160 |
The front and rear oil pumps adopt floating flower-splined coupling structure, with a unique grease formula to ensure stable performance, long life and low noise of the oil pump;
The maximum displacement can be extended to 320CC, which provides enough choice space for motor and driver selection and model selection；
The direction of oil outlet and suction outlet of oil pump is flexible and easy to install；
Any displacement combination, to meet the needs of different working conditions.
