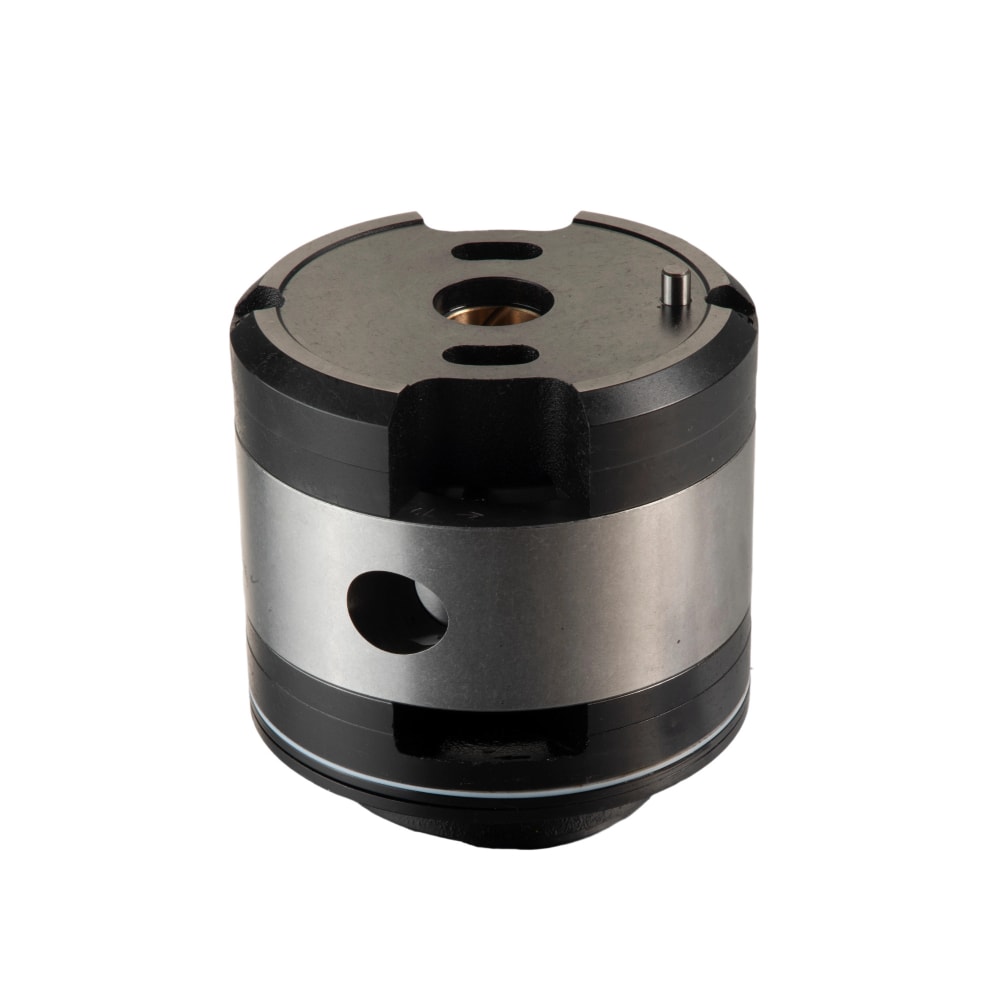

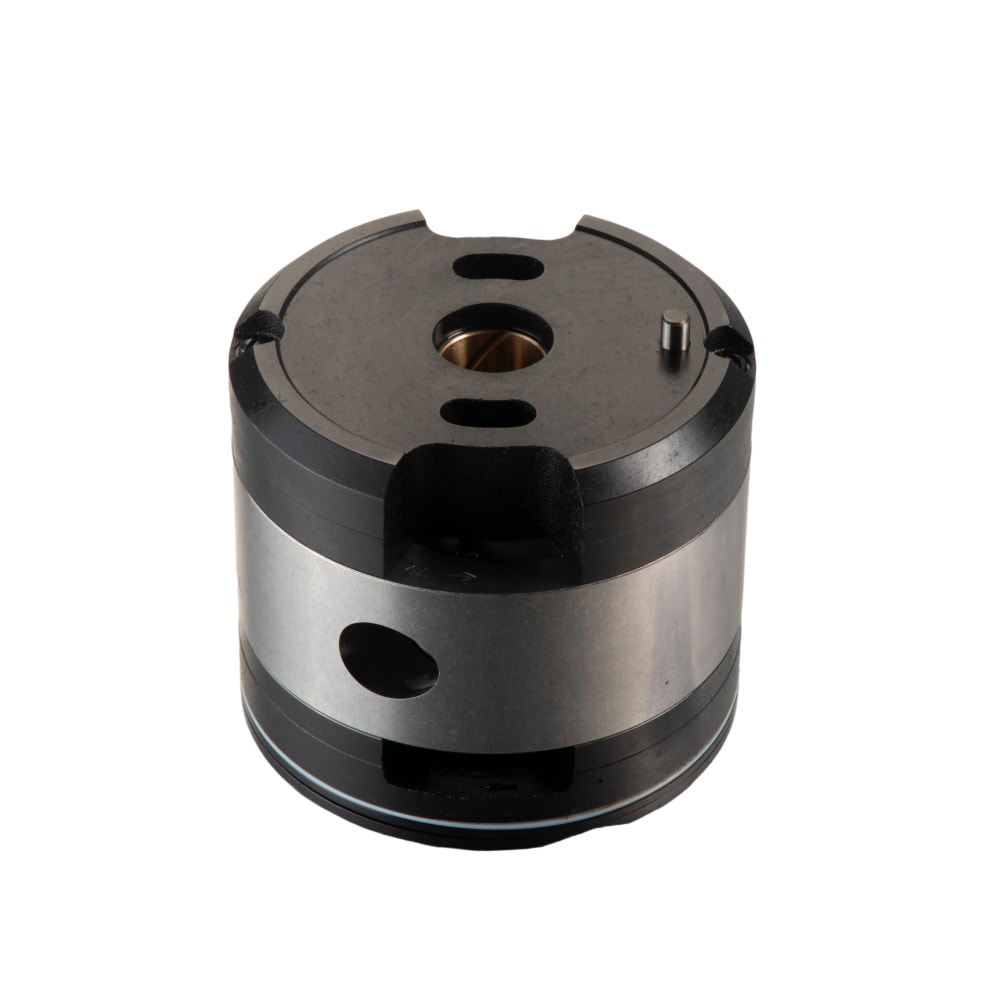

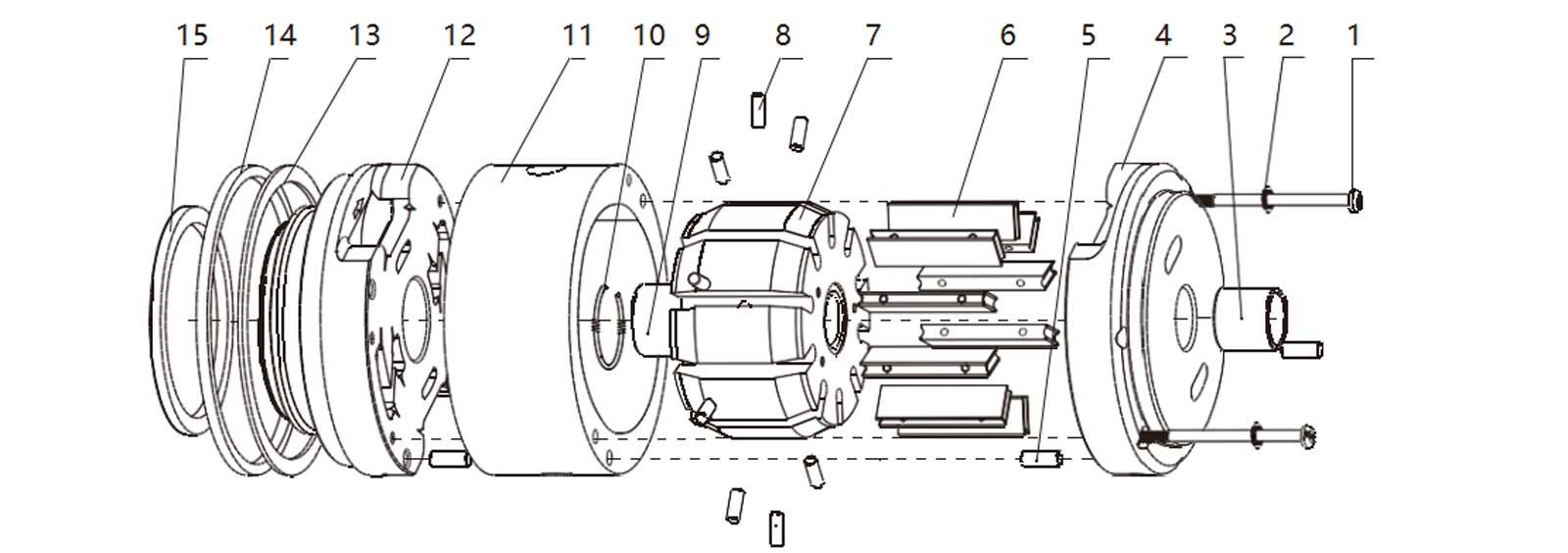

Description
| NO. | Part | Qty | NO. | Part | Qty | NO. | Part | Qty |
| 1 | slotted pan head screw | 2 | 6 | kit vane | 10 or 12 | 11 | cam ring | 1 |
| 2 | internal tooth seal kit | 2 | 7 | rotor | 1 | 12 | outlet support plate | 1 |
| 3 | sliding bearing | 1 | 8 | Pins | 10 or 12 | 13 | retainer | 1 |
| 4 | inlet support plate | 1 | 9 | Seal bush | 1 | 14 | rectangle seal kit | 1 |
| 5 | Pin | 3 | 10 | Roundwire snap rings for hole | 1 | 15 | rectangle seal kit | 1 |
Model Designation
| Front cartridge |
T6DC |
-045 |
R |
1 |
| Cartridge name |
Series |
Flow code |
Rotation | Sealing Level |
|
Single pump cartridge Front cartridge Front cartridge of double or treble pump
Middle cartridge Middle cartridge of treble pump
Rear cartridge Rear cartridge of double or treble pump |
T7B(S), T7BB(S), T67CB, T67DB, T67EB, T67DBB, T67DCB, T67DDBS, T67EDB | B02, B03, B04, B05, B06, B07, B08, B10, B12, B15 | ||
| T7D(S), T7DB(S), T7ED(S), T67DC, T67ED | B14, B17, B20, B22, B24, B28, B31, B35, B38, B42 | Viewed from shaft end of pump R-right hand for clockwise L-left hand for counter- clockwise | ||
|
T7E(S), T7EE(S), T7ED(S), T7EB(S) |
042, 045, 050, 052, 054, 057, 062, 066, 072, 085 | 1-S1, NBR Nitrile rubber 5-S5, Fluororubber | ||
| T6C, T6CC, T67CB, T6DC, T6EC, T6DCC, T67DCB, T6DDCS, T6EDC(S) |
003/B03, 005/B05, 006/B06, 008/ B08, 010/B10, 012/B12, 014/B14, 017/B17, 020/B20, 022/B22, 025/ B25, 028/B28, 031/B31 |
|||
| T6D, T6DC, T67DB, T6ED, T6DCC, T67DBB, T67DCB, T6DDCS, T67DDBS, T6EDC(S), T67EDB | 014/B14, 017/B17, 020/B20, 024/B24, 028/B28, 031/B31, 035/B35, 038/B38, 042/B42, 045/B45, 050/B50, 061 | |||
| T6E, T6EC, T67EB, T6ED,T6EE(S), T6EDC(S), T67EDB | 042, 045, 050, 052, 057, 062, 066, 072, 085 |
003/B03 In displacement code, 0 means single steering valve plate structure, B means the two steering valve plate structure.
The data of relevant series ,model are unanimous.Please see T6 series-single pumps data.

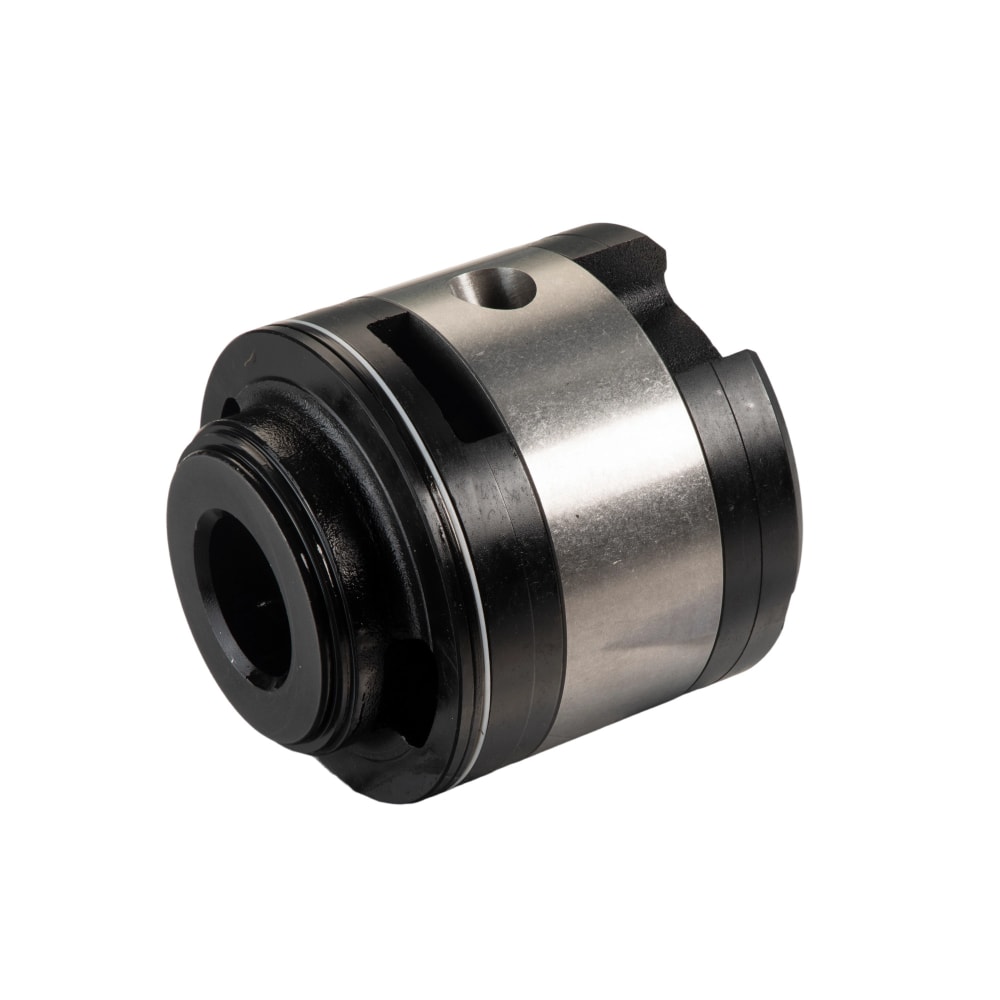

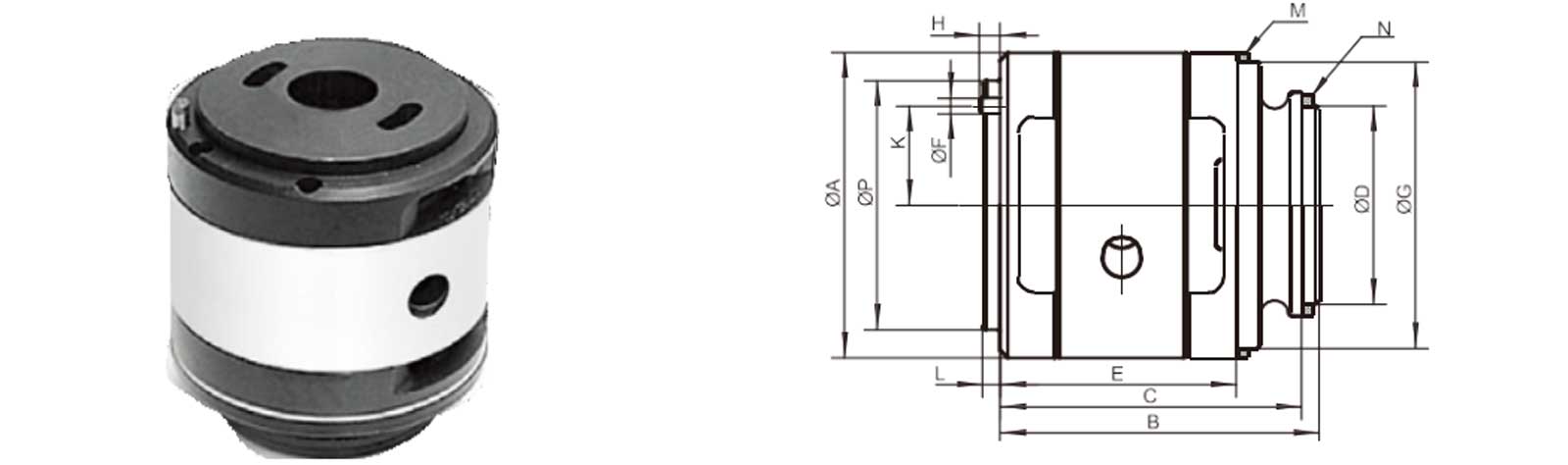

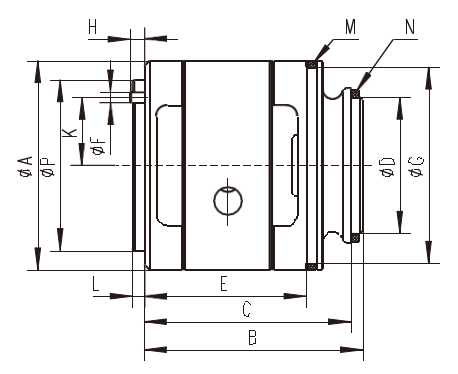

Model Designation
| Cartridge name |
Sliding bearing diameter |
ΦA |
B |
C |
ΦD |
E |
ΦF |
ΦG |
H |
K |
M(Rubber washer) |
N(Rubber washer) |
ΦP |
L |
| Single pump cartridge T6C, T7B(S) |
Φ15.90 |
95.25 | 99.4 | 93.9 | 61.9 | 72.1 | 4.8 | 89.1 | 4.8 | 43.7 | 88.5×3.53 | 60×3.53 | 77.7 | 5.5 |
| Front cartridge T6CC, T67CB, T7BB(S) | No | |||||||||||||
| Rear cartridge T6CC, T7BB(S), T67CB, T6DCC, T67DBB, T67DCB, T6DDCS, T67DDBS, T6EDC(S), T67EDB |
Φ19.05 |
|||||||||||||
| Rear cartridge T6DC, T7DB(S), T7EB(S), T67DB, T67DC, T6EC, T67EC, T67EB |
Φ22.225 |
|||||||||||||
| Middle cartridge T6DCC, T67DBB, T67DCB | No | 95.25 |
83.4 |
77.3 |
52.6 |
– |
4.8 |
– |
4.8 |
43.7 |
89×2.4 | 52×2.4 |
77.7 |
5.5 |
| Single pump cartridge T6D, T7D(S), Front cartridge T6DCC, T67DBB, T67DCB |
Φ22.225 |
123.0 | 132.4 | 125.8 | 71.9 | 102.2 | 6.4 | 108.1 | 8.0 | 41.2 | 107.5×3.53 | 69.5×3.53 | No | |
| Front cartridge T6DC, T67DB, T7DB(S), T7DD(S), T67DC, T6DDCS, T67DDBS | No | |||||||||||||
| Rear cartridge T6ED， Middle cartridge T6EDC(S), T67EDB |
Φ28.6 |
|||||||||||||
| Middle cartridge T6DDCS, T67DDBS Rear cartridge T7DD(S) |
Φ22.225 |
|||||||||||||
| Single pump cartridge T6E, T7E(S), Rear cartridge T6EE(S), T7EE(S) |
Φ28.6 |
143.08 | 150.3 | 142.5 | 88.0 | 113.0 | 8.0 | 137.0 | 8.0 | 49.2 | 136.1×3.53 | 85.3×3.53 | ||
|
Front cartridge T6ED, T6EC, T67EB, T7EB(S), T7ED(S), T7EE(S), T6EDC(S), T67EDB, T67EC |
No | |||||||||||||
|
Cartridge name |
Inside spline tooth outline parameter of rotor | ||||
| Number of teeth | Pitch | Pressure angle | Major diameter | Minor diameter | |
| Front cartridge T6CC, T7BB(S), T67CB Middle cartridge T6DCC, T67DBB, T67DCB |
32 |
40/80 |
45 ° |
21.41 |
19.9 |
| Single pump cartridge T6C, T7B(S) Rear cartridge T6CC, T7BB(S), T7DB(S), T7DD(S), T7EB(S), T67CB, T6DC, T67DB, T6EC, T67EB, T67DC, T67EC, T6DCC, T67DBB, T67DCB, T6DDCS, T67DDBS, T6EDC(S), T67EDB |
28 |
40/80 |
45 ° |
18.87 |
17.4 |
| Single pump cartridge T6D Front cartridge T6DC, T67DB, T6DCC, T67DBB, T67DCB, T6DDCS, T67DDBS, Middle cartridge T6EDC(S), T67EDB Rear cartridge T6ED, T7ED(S),T6EE(S), T7EE(S) |
25 |
24/48 |
45 ° |
28.19 |
25.8 |
| Middle cartridge T6DDCS, T6DDBS |
20 |
24/48 |
45 ° |
22.89 |
20.5 |
| Single pump cartridge T6E, T7E(S) Front cartridge T6EC, T67EB, T6ED, T6EDC(S), T67EDB |
34 |
24/48 |
45 ° |
37.72 |
35.4 |
