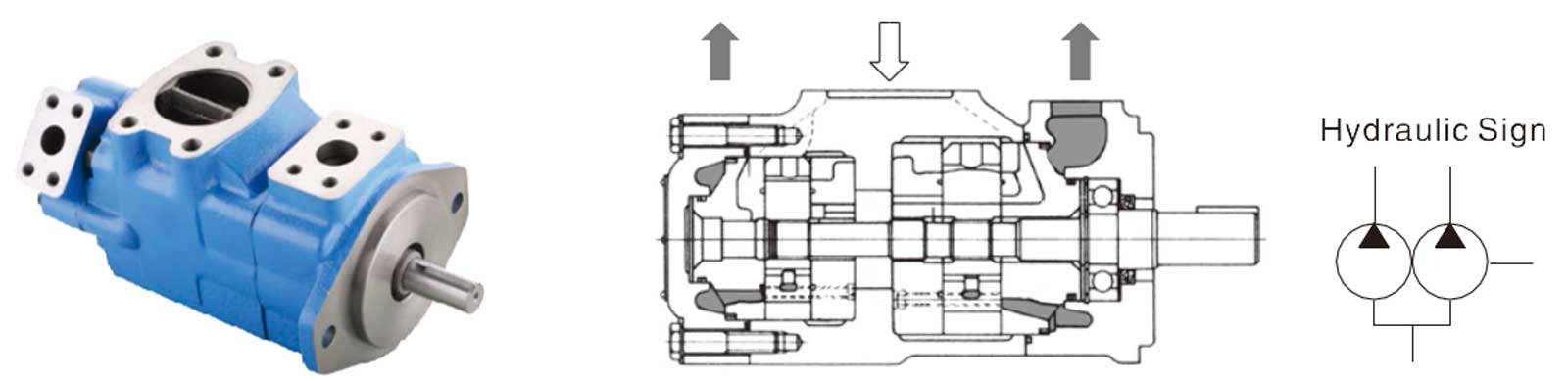

Description
Model Designation
|
(F3-) |
3525V |
38 |
A |
17 |
-1 |
AB |
22 |
R |
|
Note |
Series | Flow-Shaft end code |
Port connections |
Flow-Cover end code | Shaft type |
Outlet positions |
Design number |
Rotation |
|
No-marking: Petroleum series oilemulsification fluid water glycol-fluid F3: phosphate ester fluid |
2520V |
10, 12, 14, 15, 17,
19, 21, 25 |
A-SAE 4-bolt flange |
2, 3, 4, 5, 6, 7, 8, 9, 10,
11, 12, 14 |
1-Str key 86-HD Str key 11-Spline |
See below |
22 |
(Viewed from shaft end of pump) R-right hand for clockwise L-left hand for counter- clockwise |
|
3520V |
21, 25, 30, 32, 35,
38, 45 |
2, 3, 4, 5, 6, 7, 8, 9, 10,
11, 12, 14 |
||||||
|
3525V |
21, 25, 30, 32, 35,
38, 45 |
10, 12, 14, 15, 17,
19, 21, 25 |
||||||
|
4520V |
42, 45, 50, 57, 60,
66, 75 |
2, 3, 4, 5, 6, 7, 8, 9, 10,
11, 12, 14 |
||||||
|
4525V |
42, 45, 50, 57, 60,
66, 75 |
10, 12, 14, 15, 17,
19, 21, 25 |
||||||
|
4535V |
42, 45, 50, 57, 60,
66, 75 |
21, 25, 30, 32, 35,
38, 45 |
USgpm Flow(USgpm) at 1200r/min and 0.69MPa

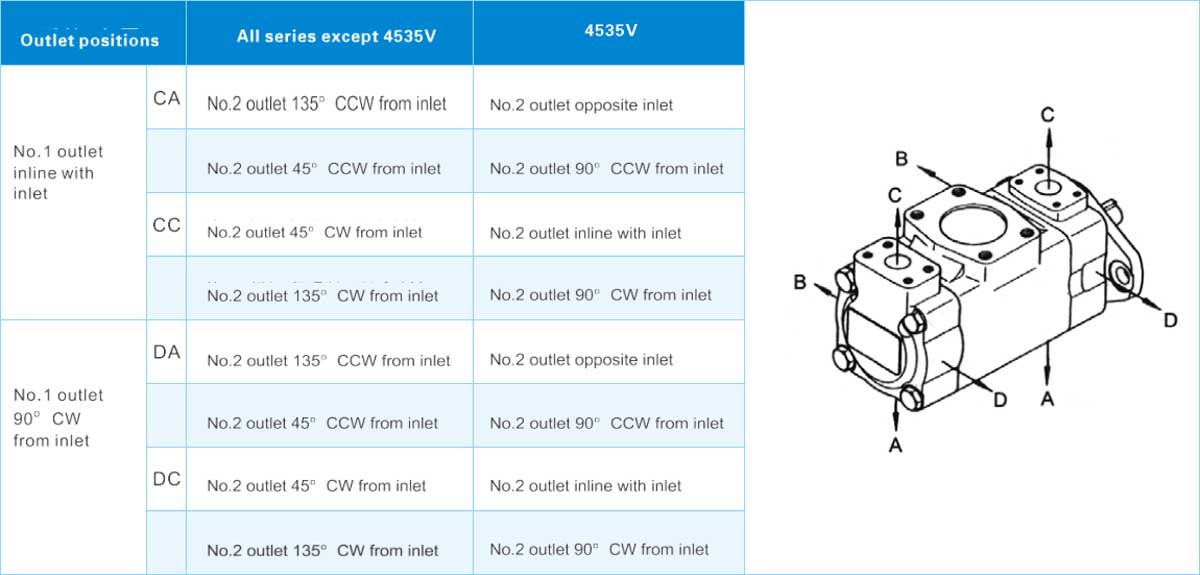

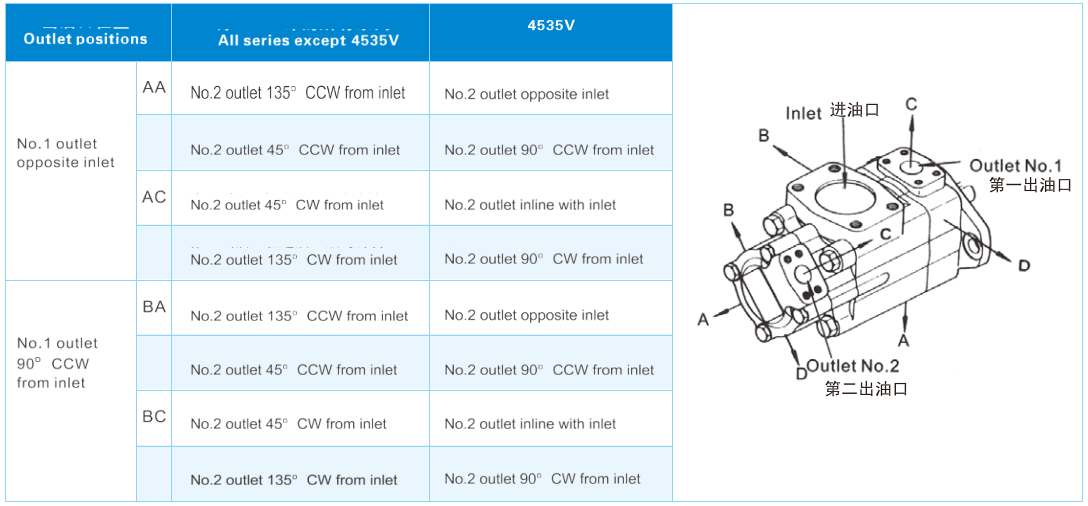

Outlet Positions (Viewed from cover end of pump)
Outlet Positions (Viewed from cover end of pump)

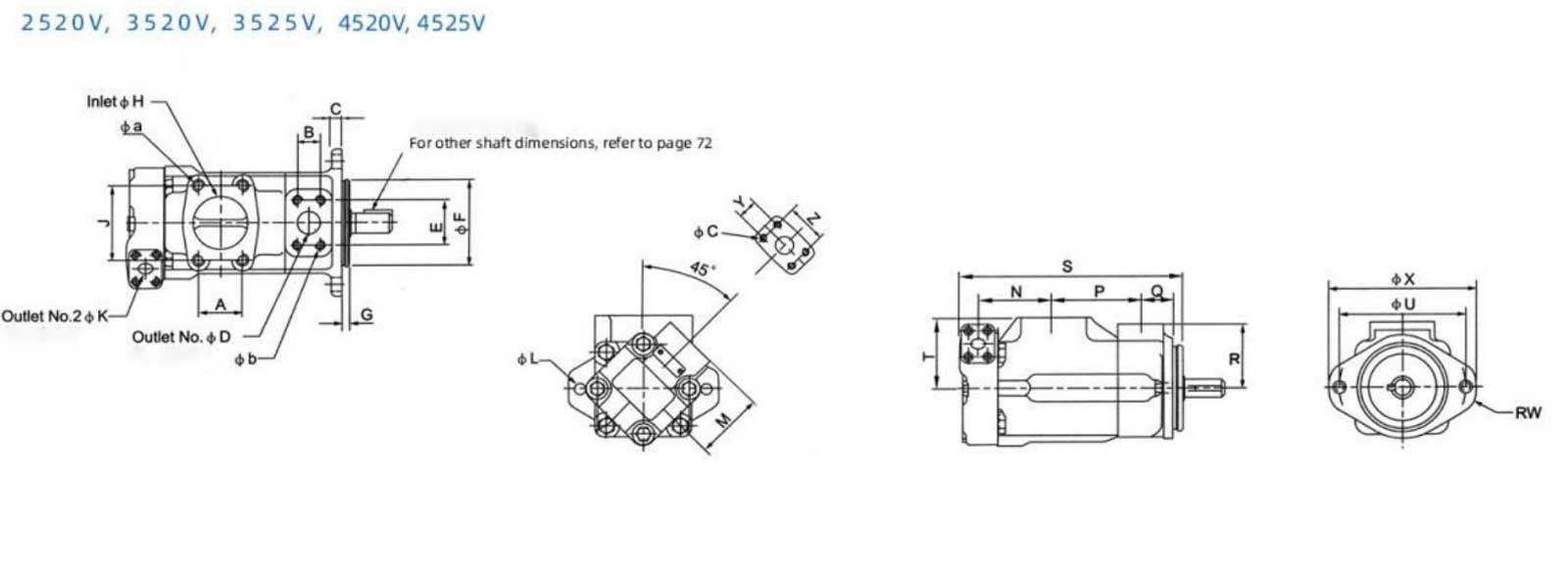

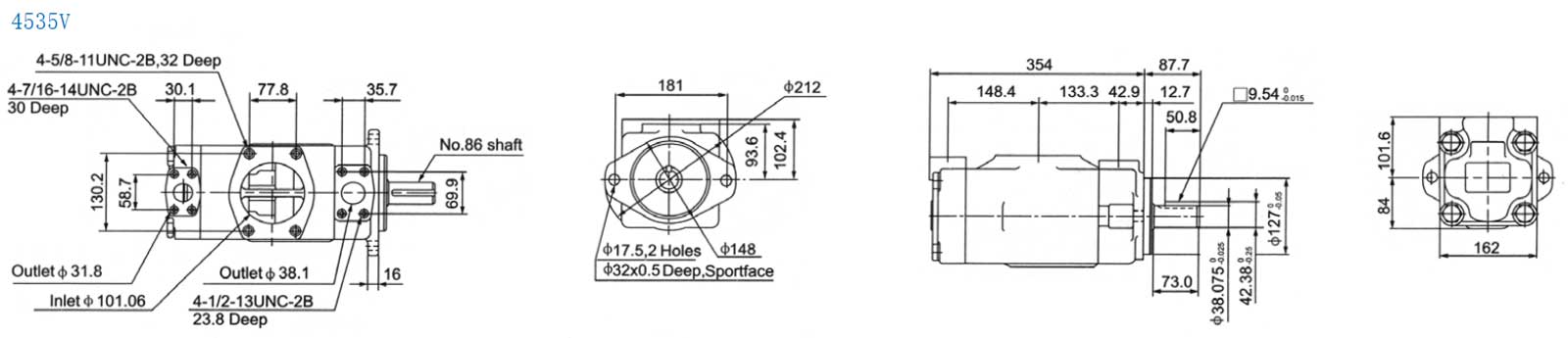

Installation Dimensions
| Model |
Øax full thread depth,4 holes |
Obxfull thread depth,4 holes |
Øcxfull thread depth,4 holes |
|||||||||||
|
2520V |
1/2-13UNC-2Bx23.8 |
3/8-16UNC-2Bx19.1 |
3/8-16UNC-2Bx19.1 |
|||||||||||
|
3520V |
5/8-11UNC-2Bx30.0 |
7/16-14UNC-2Bx22.3 |
3/8-16UNC-2Bx19.1 |
|||||||||||
|
3525V |
5/8-11UNC-2Bx30.0 |
7/16-14UNC-2Bx22.3 |
3/8-16UNC-2Bx19.1 |
|||||||||||
|
4520V |
5/8-11UNC-2Bx30.0 |
1/2-13UNC-2Bx23.8 |
3/8-16UNC-2Bx19.1 |
|||||||||||
|
4525V |
5/8-11UNC-2Bx30.0 |
1/2-13UNC-2Bx23.8 |
3/8-16UNC-2Bx19.1 |
|||||||||||
|
Model |
A |
B |
C |
ØD |
E |
⑧F |
G |
QH |
J |
ØK |
ØL |
M |
||
|
2520V |
50.8 |
26.2 |
12.7 |
25.4 |
52.4 |
101.60/101.55 |
9.53 |
63.5 |
88.9 |
19.1 |
14.2 |
76.2 | ||
|
3520V |
62 |
30.1 |
15.9 |
31.7 |
58.7 |
127.00/126.95 |
9.53 |
76.2 |
106.3 |
19.1 |
17.5 |
76.2 | ||
|
3525V |
62 |
30.1 |
15.9 |
31.7 |
58.7 |
127.00/126.95 |
9.53 |
76.2 |
106.3 |
25.4 |
17.5 |
74.7 | ||
|
4520V |
69.9 |
35.7 |
15.9 |
38.1 |
69.9 |
127.00/126.95 |
12.7 |
88.9 |
120.6 |
19.1 |
17.5 |
76.2 | ||
|
4525V |
69.9 |
35.7 |
15.9 |
38.1 |
69.9 |
127.00/126.95 |
12.7 |
88.9 |
120.6 |
25.4 |
17.5 |
74.7 | ||
|
Model |
N |
P |
Q |
R |
S |
T |
ØU |
⑧V |
RW |
⑧X |
Y |
Z |
||
|
2520V |
88.1 |
101.6 |
38.1 |
76.2 |
250 |
85.3 |
146.1 |
120.7 |
14 |
174.7 |
22.2 |
47.6 | ||
|
3520V |
99.6 |
114.3 |
38.1 |
82.6 |
273.3 |
88.9 |
181 |
148 |
16 |
213 |
22.2 |
47.6 | ||
|
3525V |
109.5 |
114.3 |
38.1 |
82.6 |
287.3 |
88.9 |
181 |
148 |
16 |
213 |
26.2 |
52.4 | ||
|
4520V |
120 |
119.4 |
42.9 |
93.7 |
303.5 |
102.4 |
181 |
148 |
16 |
213 |
22.2 |
47.6 | ||
|
4525V |
136 |
119.4 |
42.9 |
93.7 |
325 |
102.4 |
181 |
148 |
16 |
213 |
26.2 |
52.4 | ||
