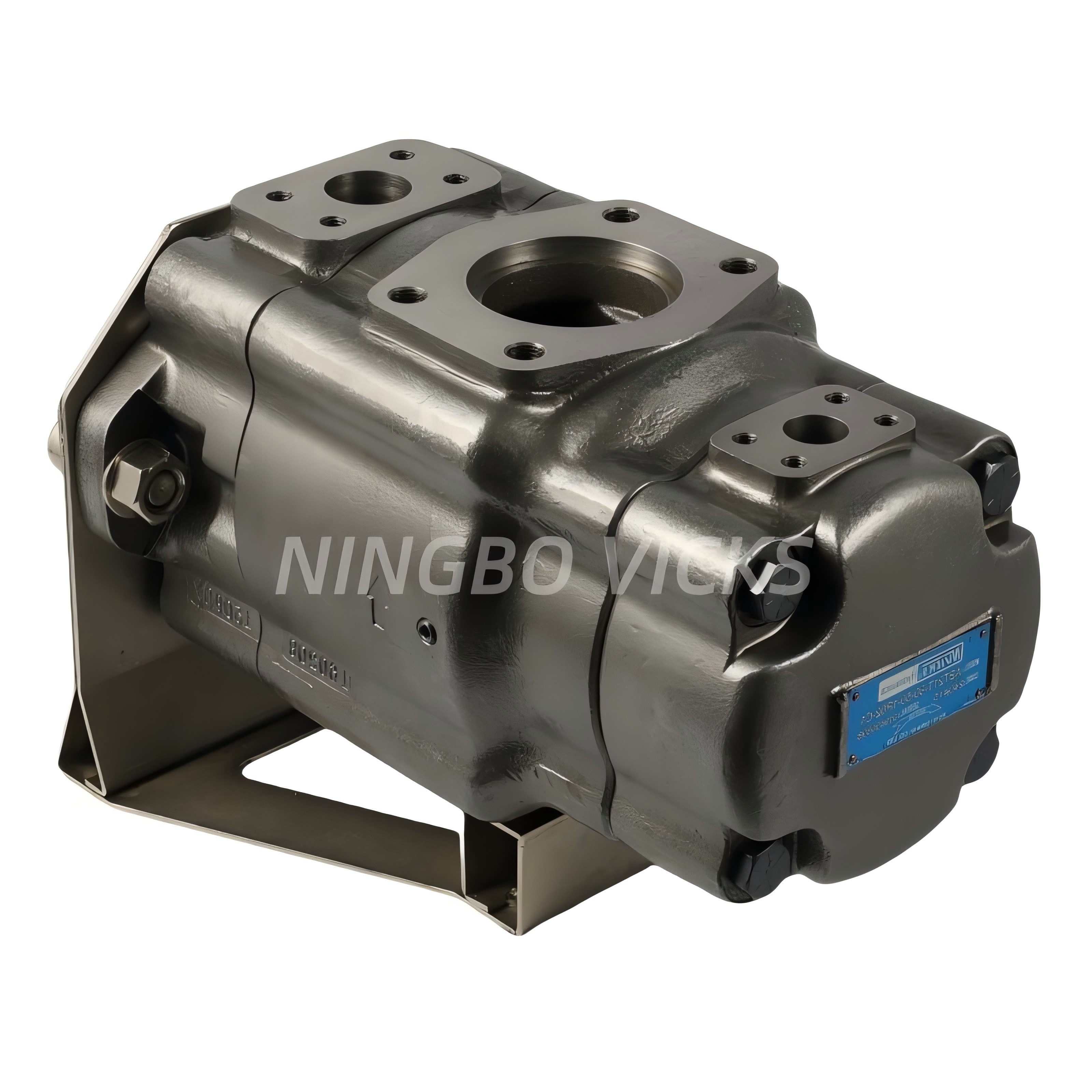

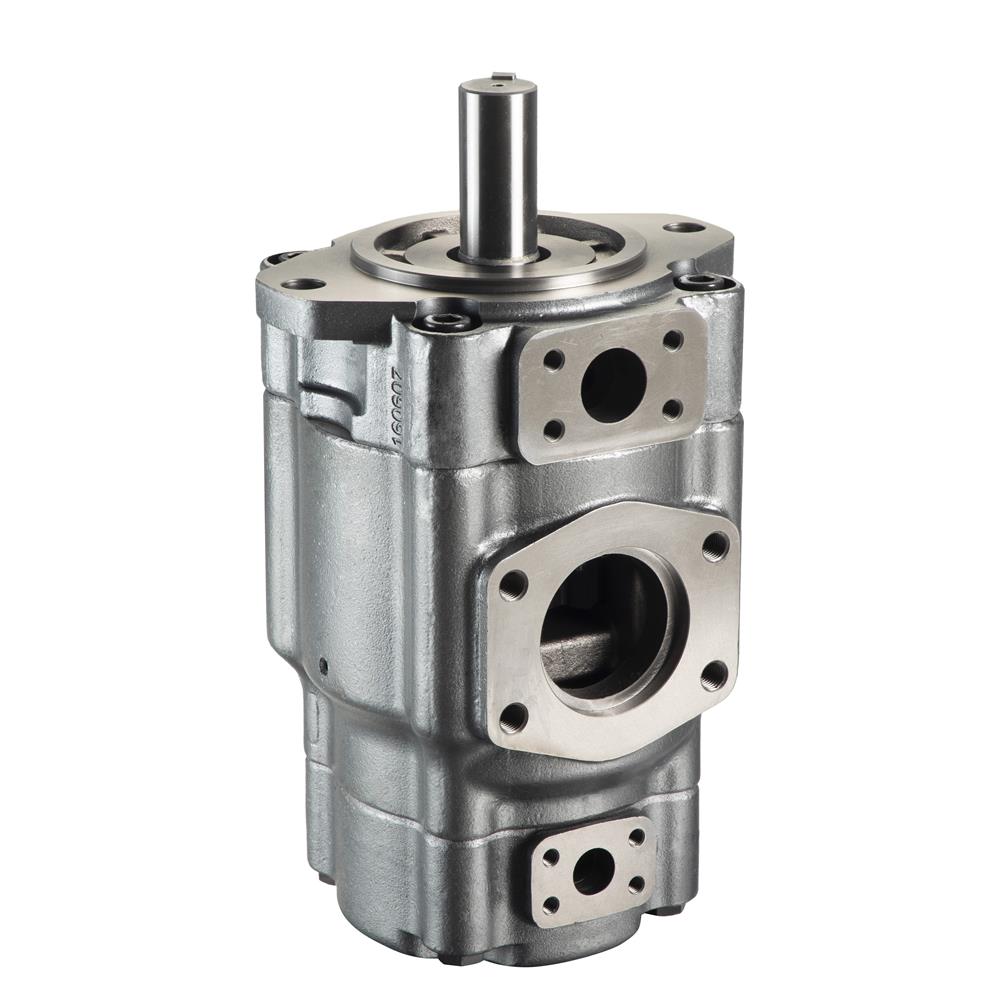

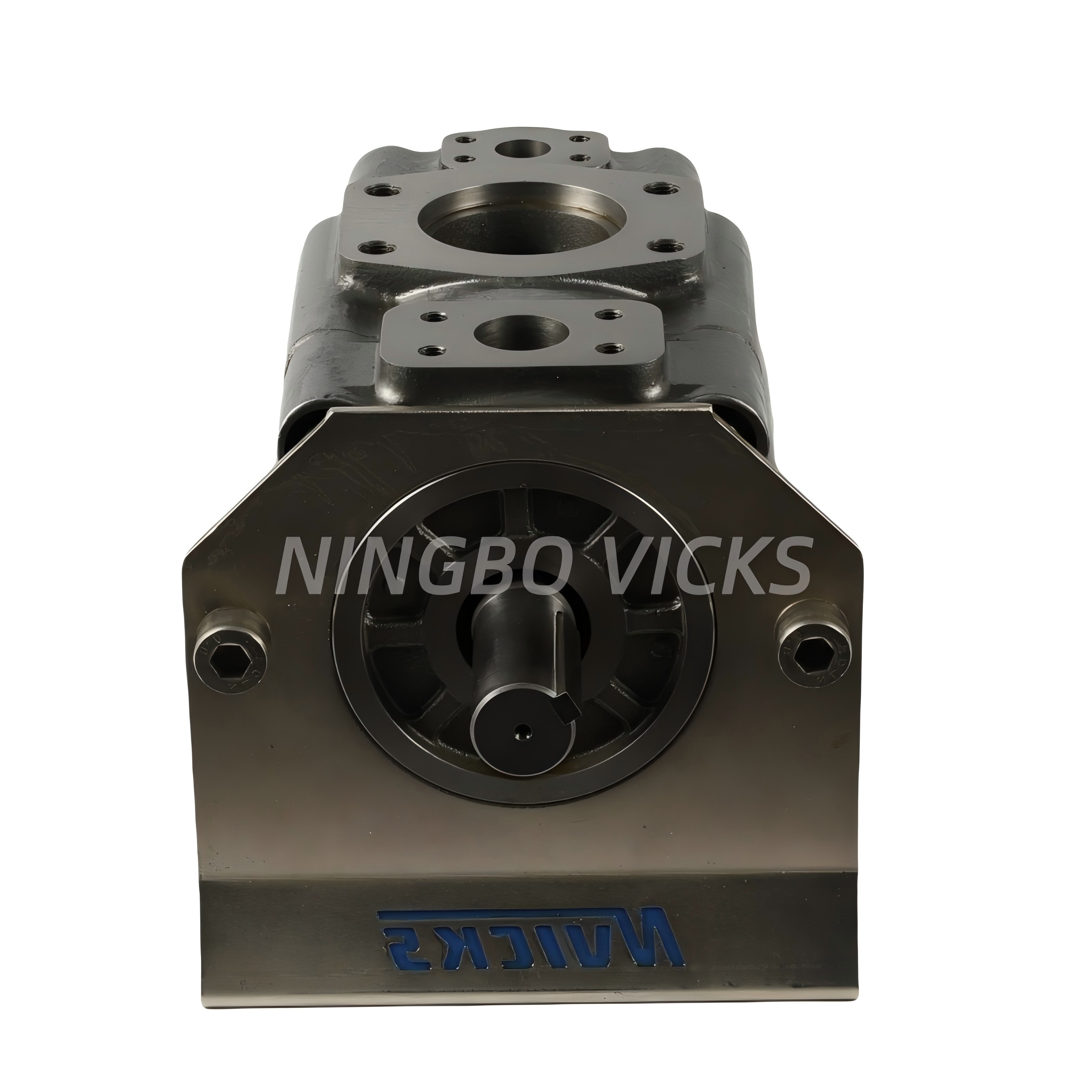

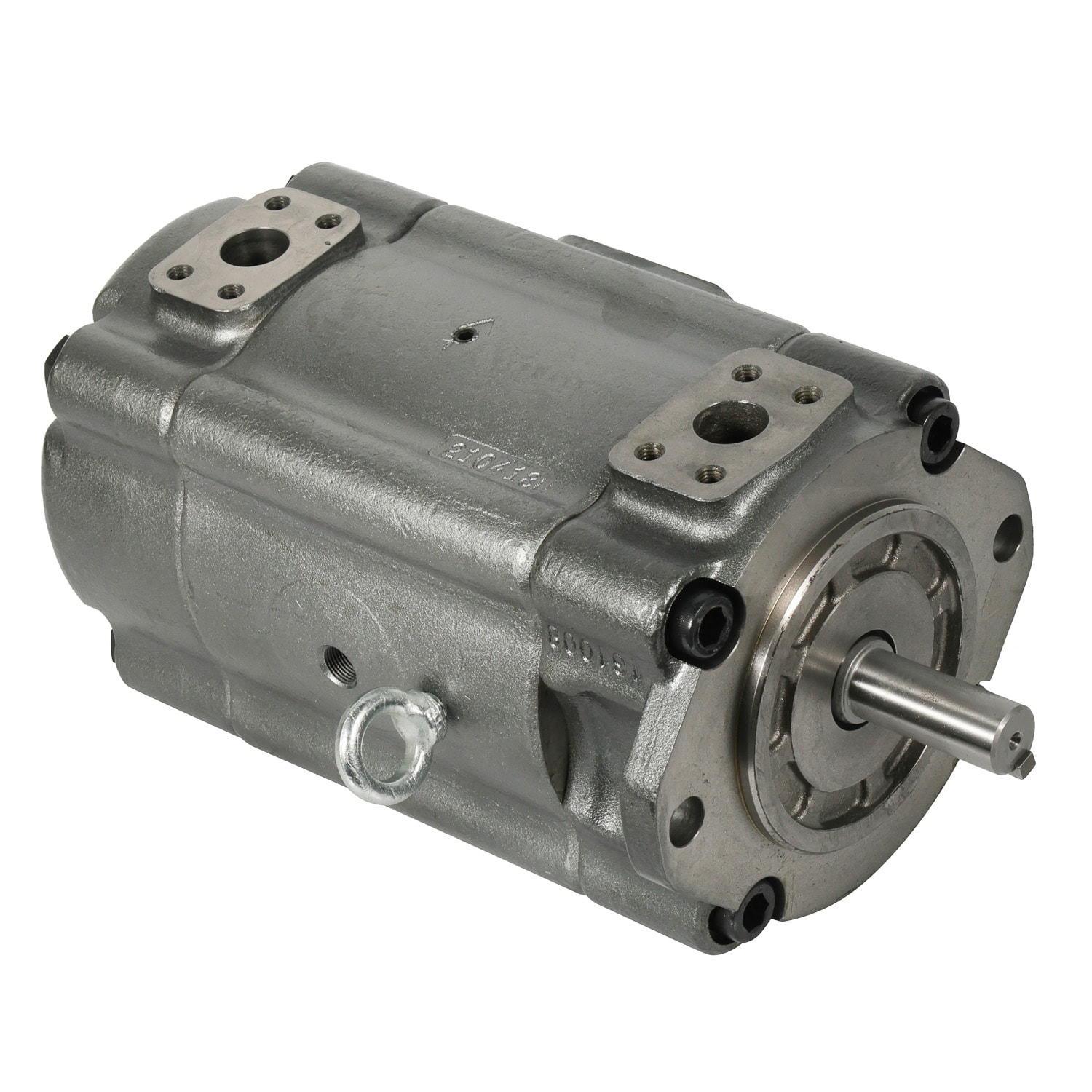

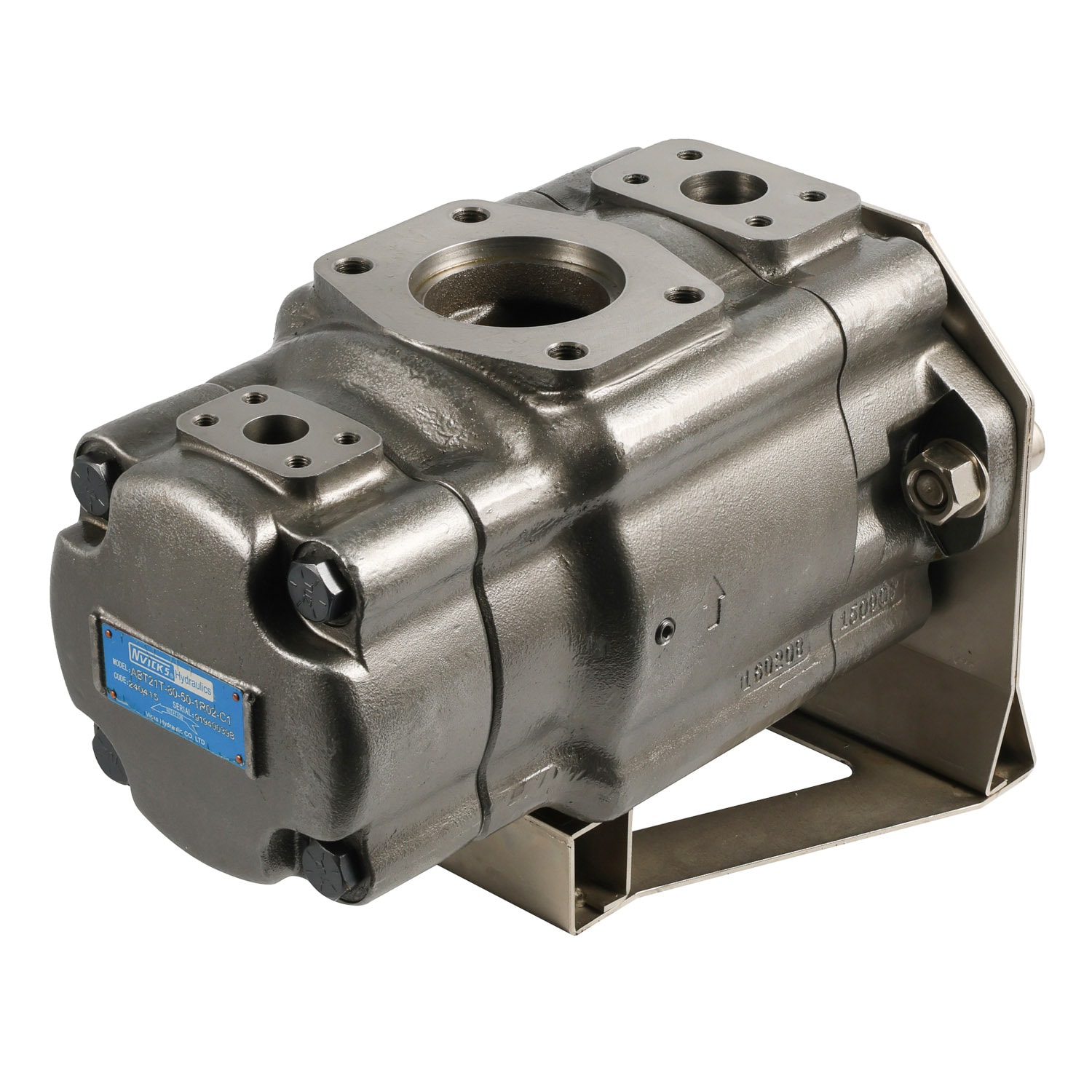

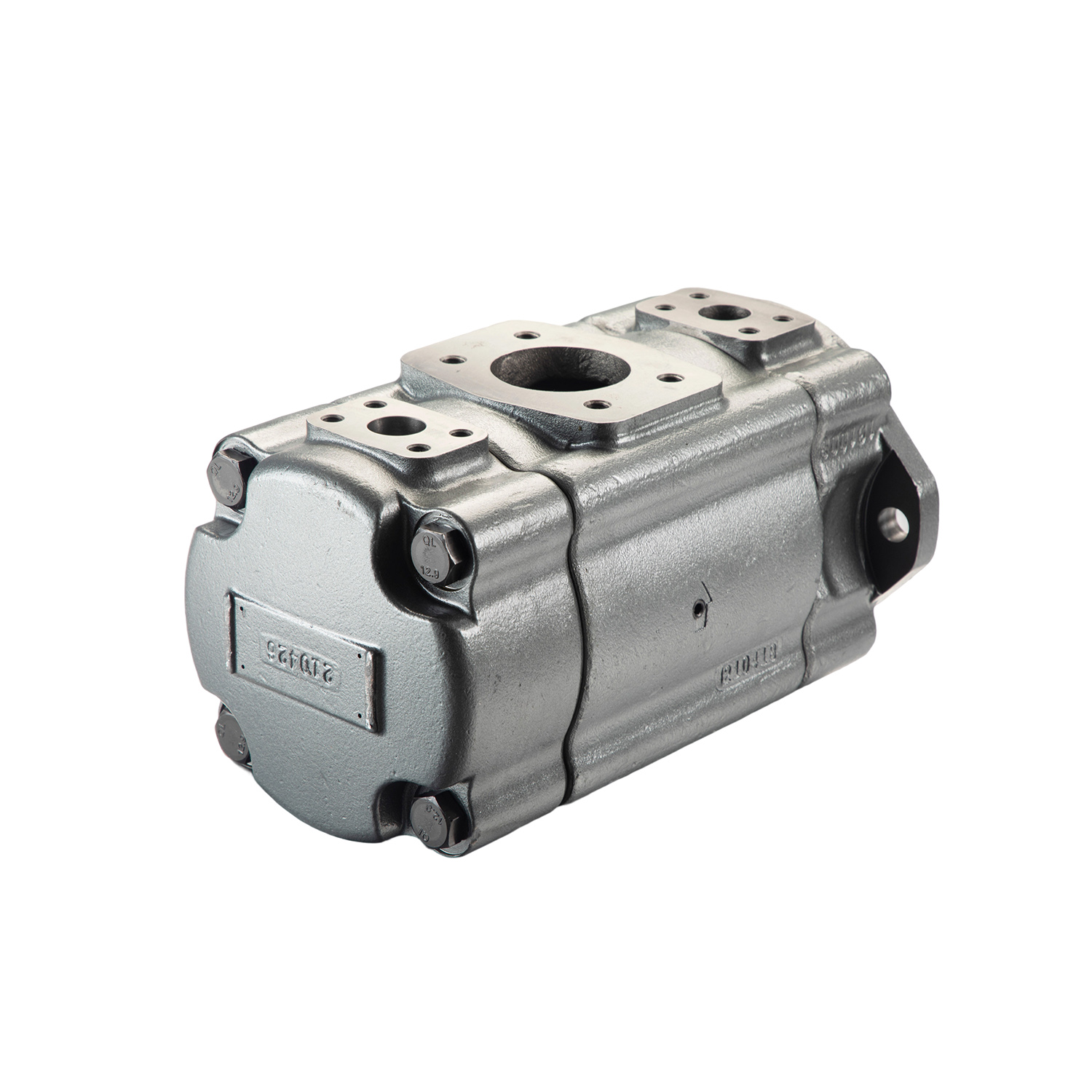

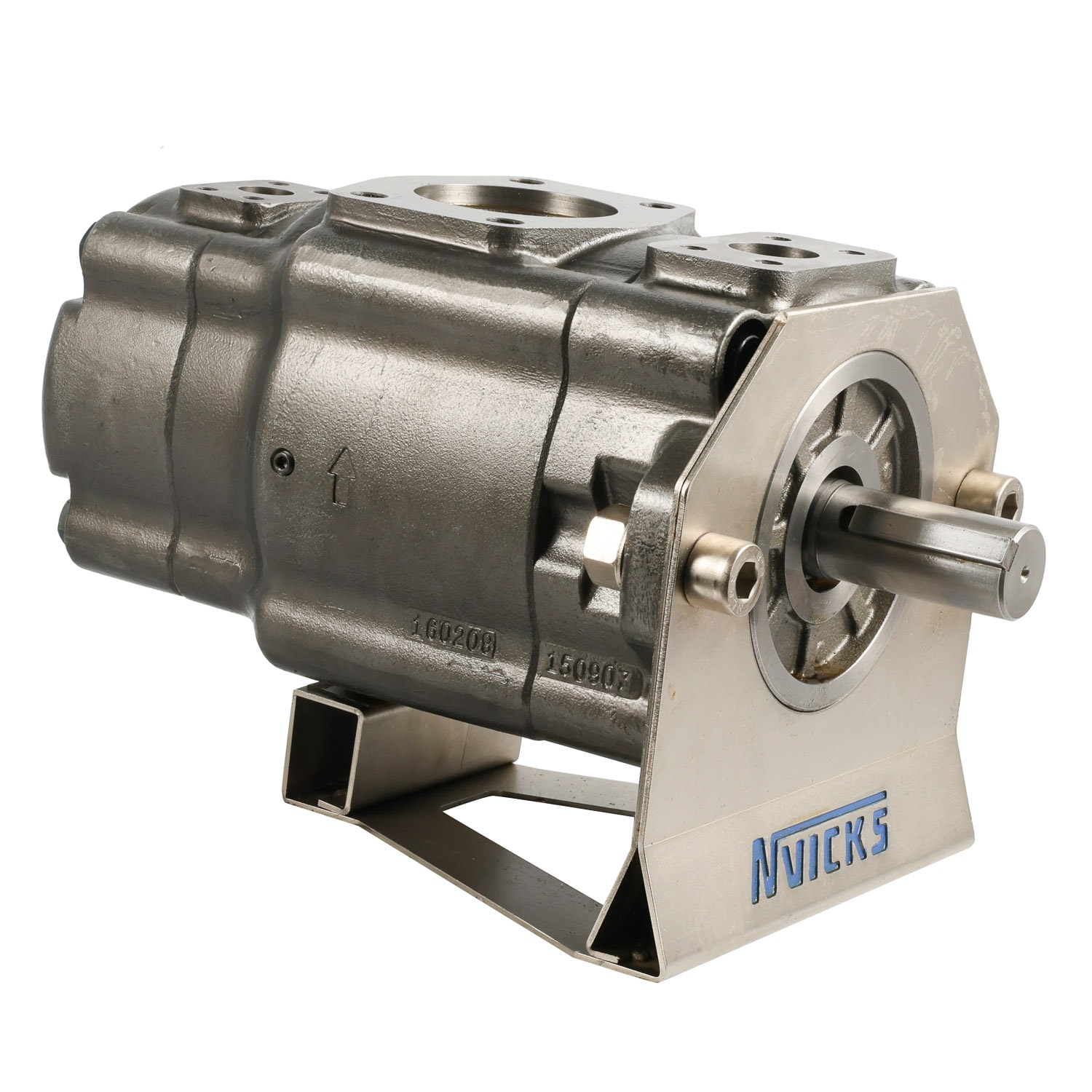

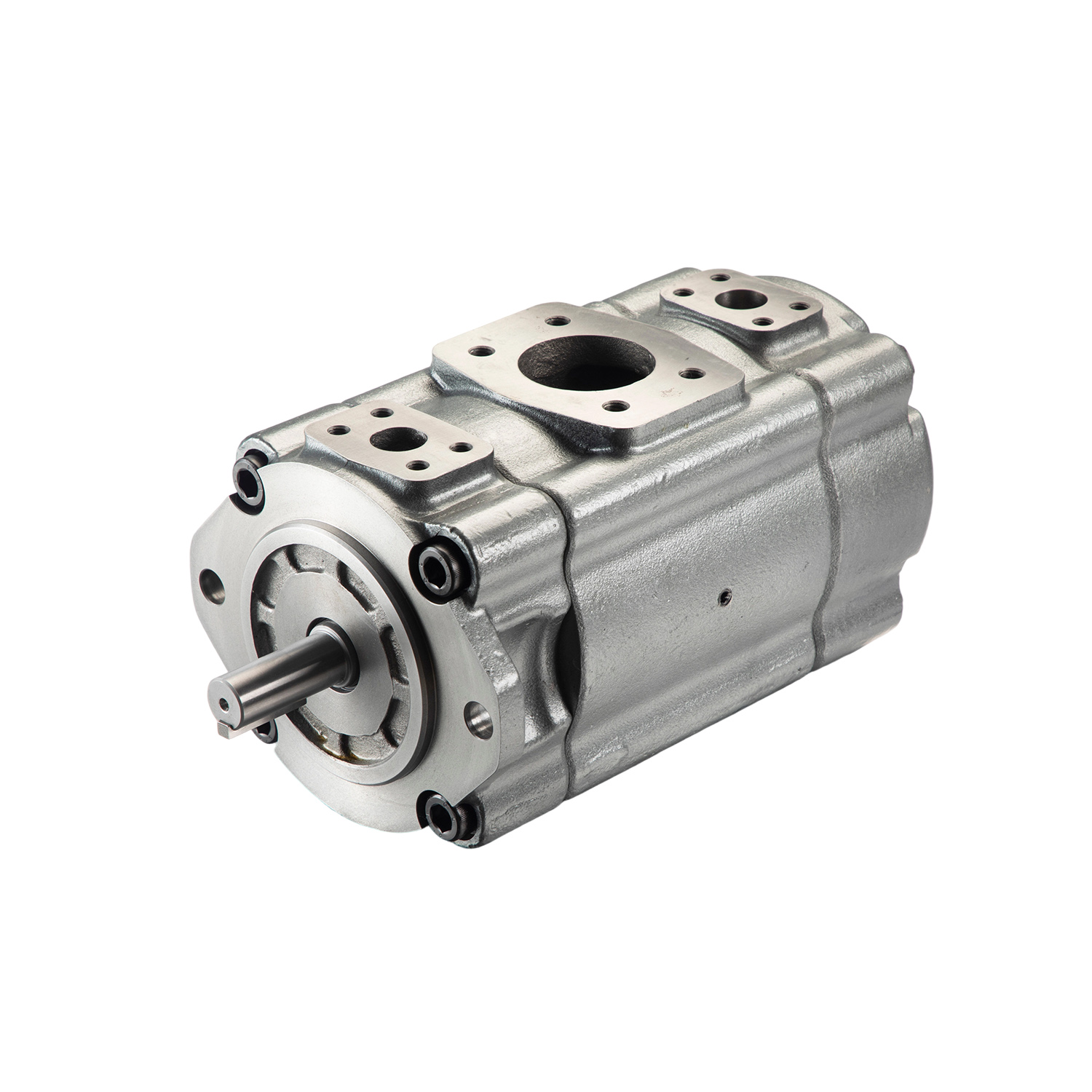

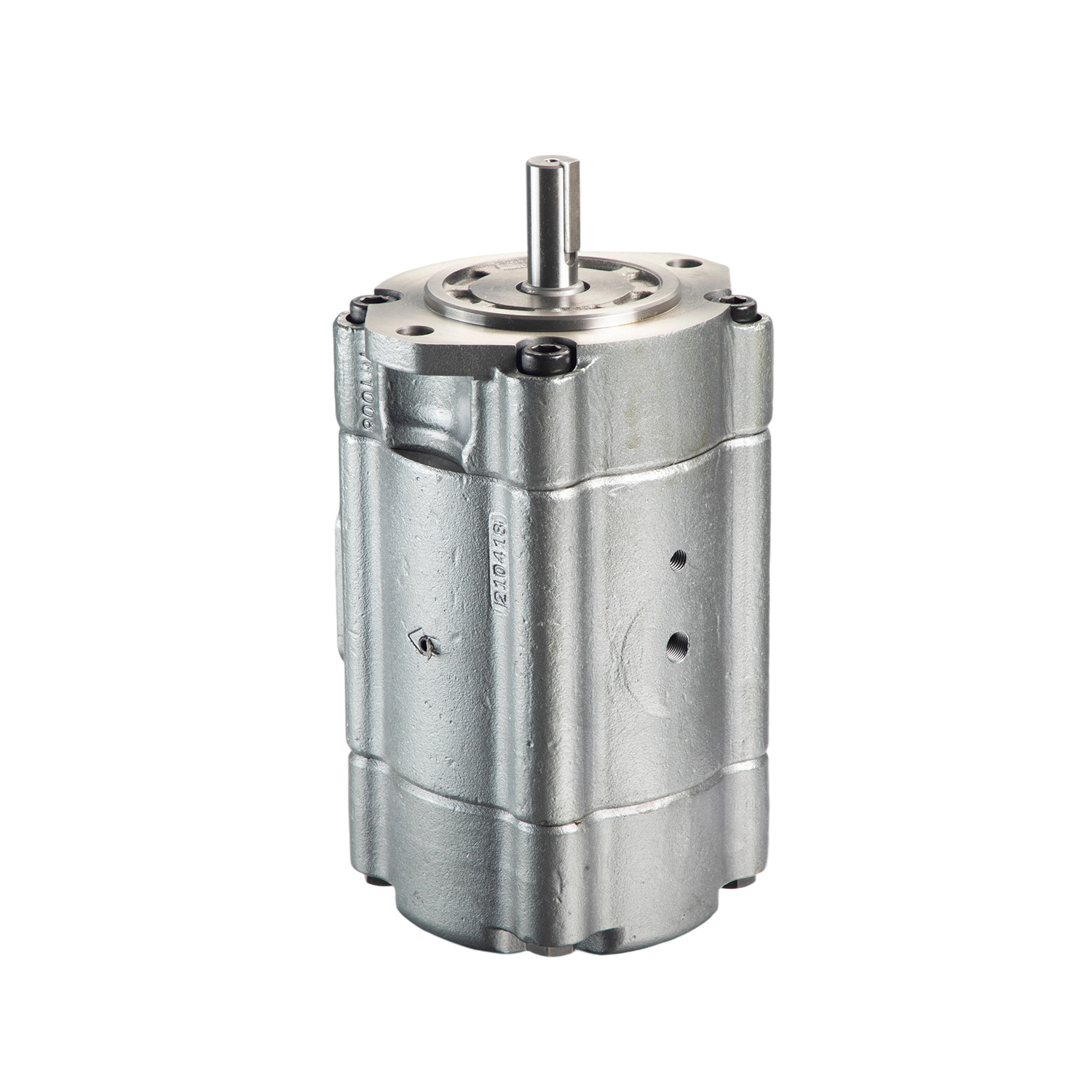

Description
Model Designation
|
ABT21T |
-125 |
-64 |
-1 |
R |
01 |
-D |
1 |
|
Series |
Flow-shaft end |
Flow-cover end |
Shaft type |
Rotation |
Port |
Design |
Sealing Level |
|
ABT11T |
6,10,16,20,25, |
6,10,16,20,25, |
-1 |
(Viewed from shaft end of pump) R-right hand for clockwise L-left hand for counter- clockwise |
see picture |
C |
1-S1,(Buna) NBR Nitrile rubber2-S2,HNBR |
|
ABT21T |
64,80,100,110, |
6,10,16,20,25, |
|
|
D |
||
|
ABT22T |
64,80,100,110, |
64,80,100,110, |
|
|
D |
||
| The data of relevant series,model are unanimous.Please see ABT series-single pumps data. | |||||||

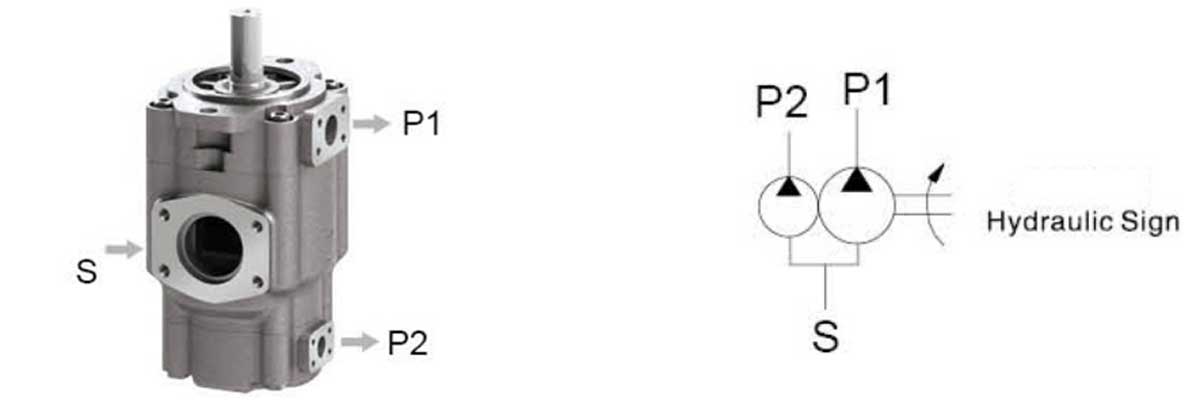

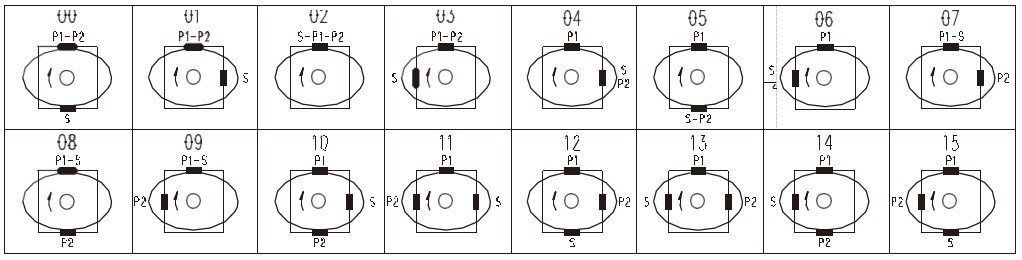

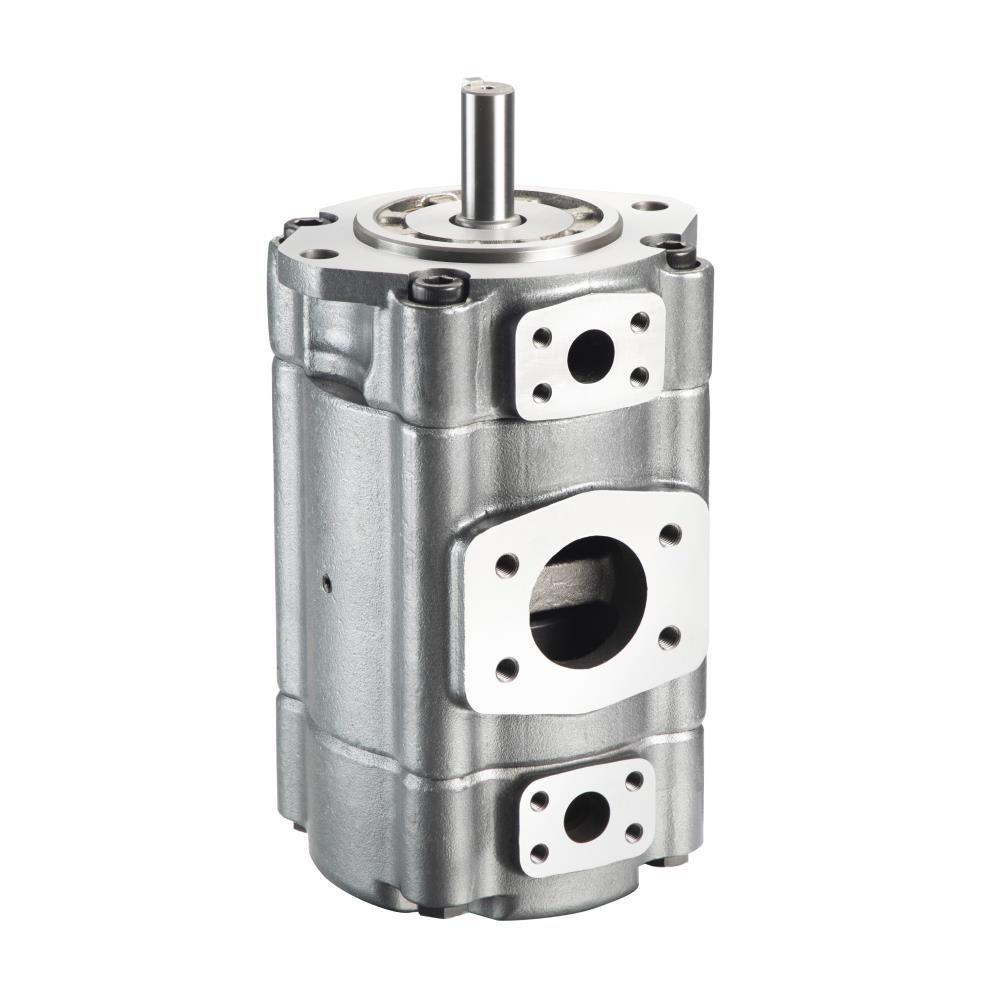

Port Positions (Viewed from shaft end of pump)
ABT11、ABT21

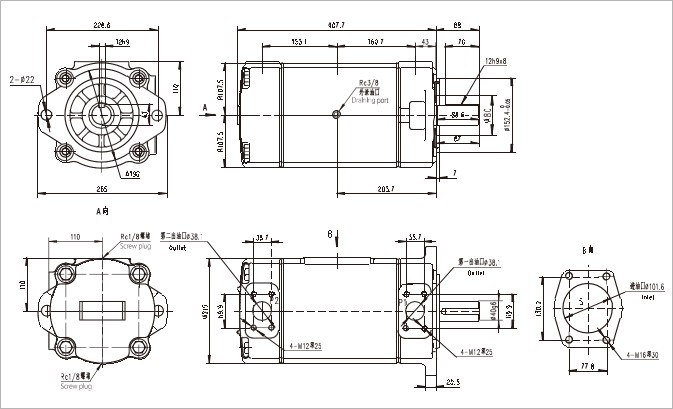

ABT11T Installation Dimensions

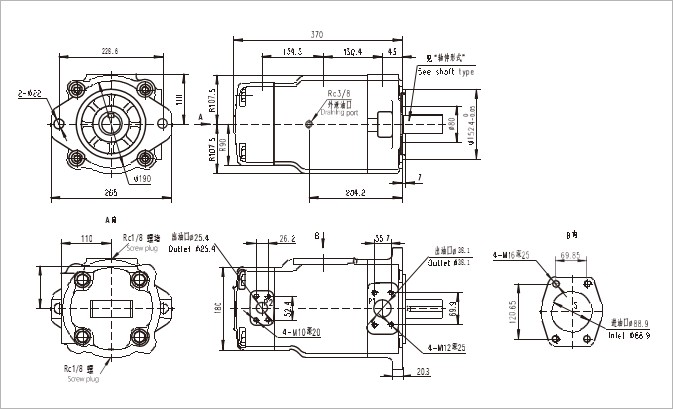

ABT21T Installation Dimensions

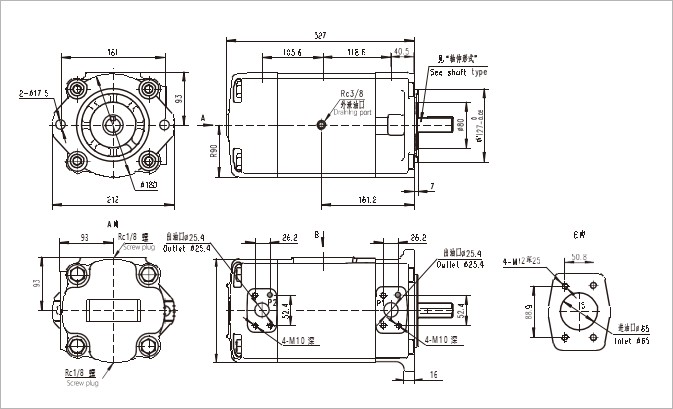

ABT22T Installation Dimensions

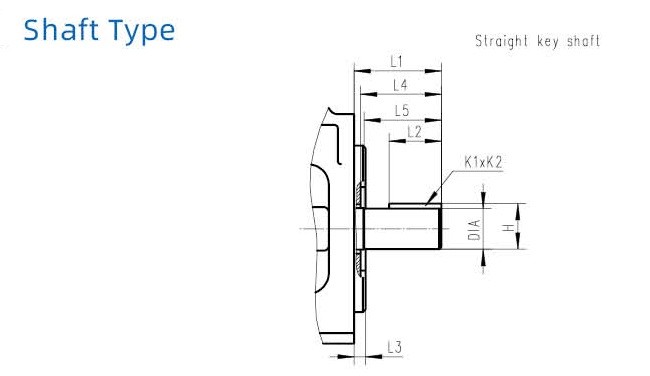

Shaft Extension
|
Model |
Shaft code |
L1 |
L2 |
L3 |
L4 |
L5 |
DIA |
K1xK2 |
H |
|
ABT1T |
1 |
56 |
32 |
7.0 |
51.0 |
49.6 |
Φ25g6 |
8h9x7 |
28 |
|
|
2 |
68 |
45 |
7.0 |
63.0 |
61.6 |
φ25g6 |
8h9x7 |
28 |
|
ABT2T |
2 |
88 |
70 |
7.0 |
87.0 |
85.6 |
φ40g6 |
12h9x8 |
43 |
|
ABT3 |
1 |
88 |
70 |
7.0 |
87.0 |
85.6 |
Φ40g6 |
12h9x8 |
43 |
|
ABT11T |
1 |
68 |
45 |
7.0 |
63.0 |
61.6 |
φ25g6 |
8h9x8 |
28 |
|
ABT21T |
1 |
88 |
70 |
7.0 |
87.0 |
85.6 |
Φ40g6 |
12h9x8 |
43 |
|
ABT22T |
1 |
88 |
70 |
7.0 |
87.0 |
85.6 |
Φ40g6 |
12h9x8 |
43 |
