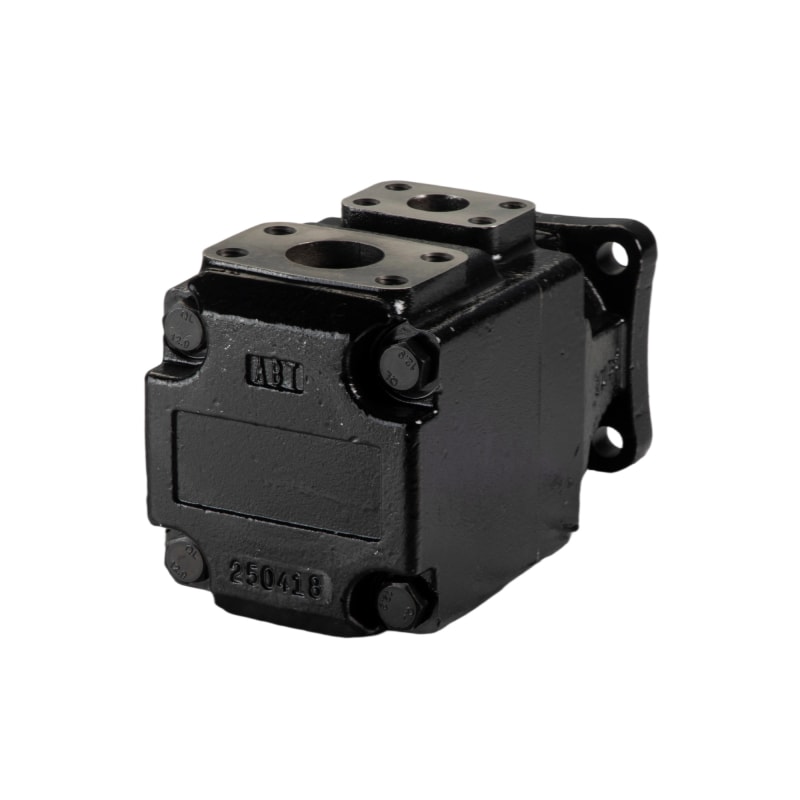

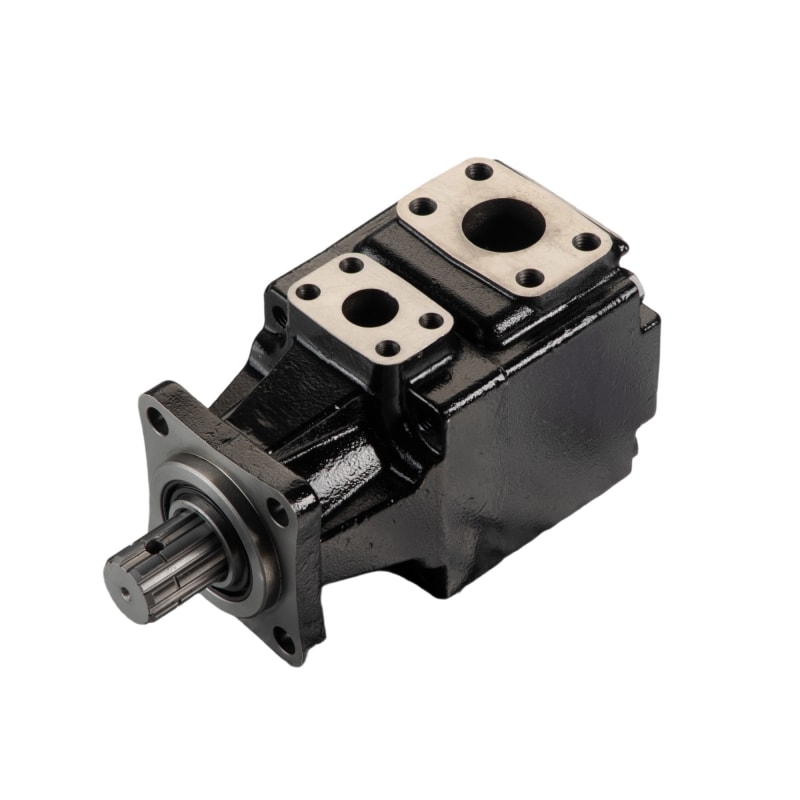

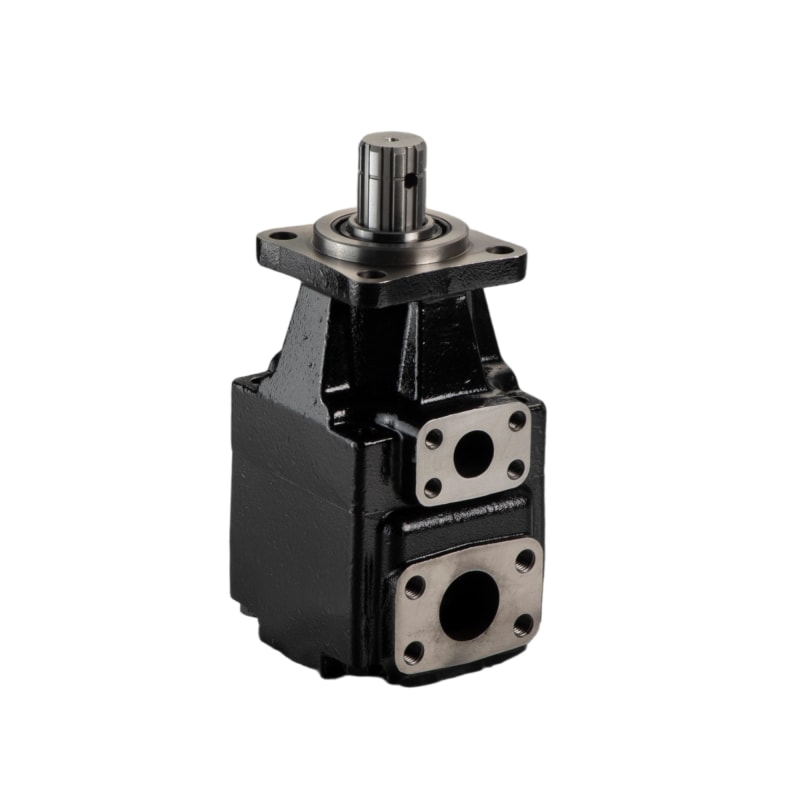

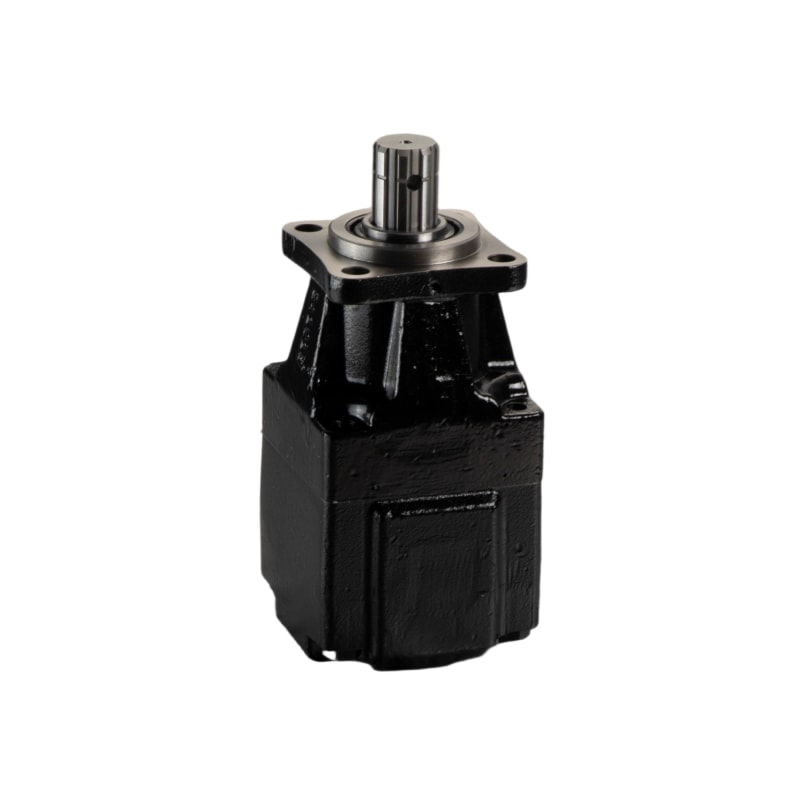

Description
Model Representation
|
T6GC |
-B10 |
-6 |
R |
00 |
-A |
1 |
01 |
|
Series |
Flow code |
Shaft type |
Rotation |
Outlet Positions |
Design number |
Sealing Level |
Port dimensions |
|
T6GC |
B03, B05, B06, B08, B10, B12, B14, B17, B20, B22, B25, B28, B31 |
See size of shaft |
Viewed from shaft end of pump R-right hand for clockwise L-left hand for counter- clockwise |
(Viewed from shaft end of pump) 00-Opposite inlet port 01-Inline with inlet 02-90o CCW from inlet 03-90o CW from inlet |
A |
1-S1, (Buna) NBR Nitrile rubber
5-S5,(Viton) Fluororubber |
00：Flange 1″BSPP 01: SAE Flange SAE 4 bolts(UNC) See installation dimensions |
|
T7GB |
B02, B03, B04, B05, B06, B07, B08, B10, B12, B15, B20 |
B03 B means the two steering valve plate structure.
The data of relevant series, model are unanimous. Please see T6 series-single pumps data.

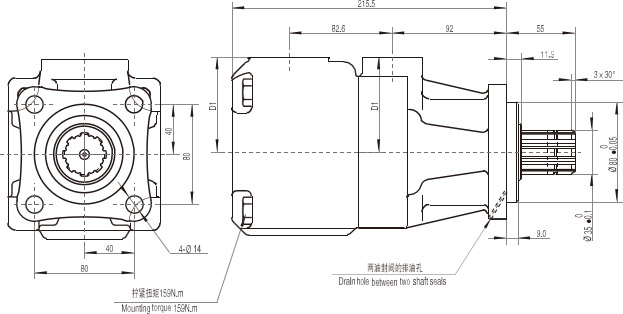

Installation Dimensions
T6GC、T7GB
|
Oil port |
Flange |
Install Dimensions(mm) | ||||||
|
A1 |
B1 |
ΦC1 |
D1 |
T1 Thread |
||||
|
T6GC T7GB |
P |
01: 1″ |
F08 |
26.2 |
52.4 |
25.4 |
76.2 |
3/8″-16UNCx19.0 |
|
00: 1″BSPP |
– |
– |
– |
1″BSPP |
79.5 |
– |
||
|
S |
1-1/2″ |
F12 |
35.7 |
69.9 |
38.1 |
76.2 |
1/2″-13UNCx22.4 |
|
