Description
Model Designation
|
(F3-) |
PC- |
25V |
19 |
R |
10 |
|
Note |
Cartridge mark |
Series |
Flow code |
Rotation |
Design number |
| No-marking: Petroleum series oil emulsification fluid waler glycol-fluid F3:phosphate ester fluid | PC-Cartridge kit of single pump double pump shaft end PCT-Cartridge kit of double pump cover end |
20V |
2,3,4,5,6,7,8,9, 10,11,12,14 | (Viewed from shaft end of pump) L-Left hand for counter clockwise R-Right hand for clockwise |
10 |
|
25V |
10,12,14,15,17, 19,21,25 | ||||
|
35V |
21,25,30,32,35, 38,45 | ||||
|
45V |
42,45,50,57,60, 66,75 |
USgpm Flow(USgpm) at 1200r/min and 0.69MPa.
The data of relevant series, model are unanimous. Please see V series-single pump data.
Technical Data
|

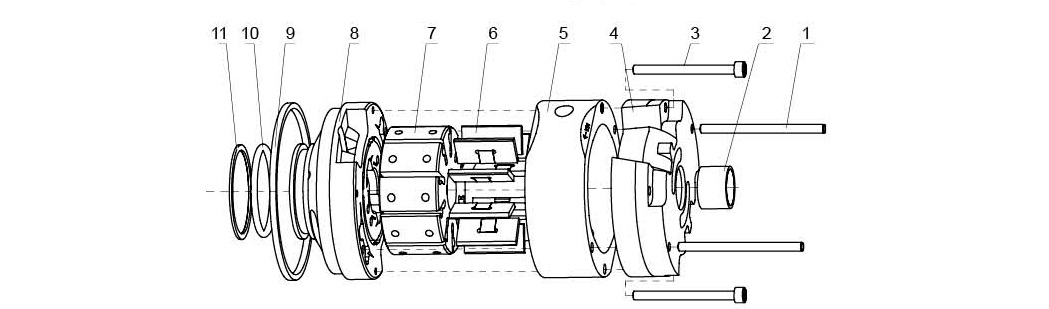

NO |
Part |
Qty |
NO |
Part |
Qty |
NO |
Part |
Qty |
|
1 |
Pin |
2 |
5 | cam ring | 1 | 9 | Retainer | 1 |
|
2 |
sliding bearing |
1 |
6 | vane kit | 12 | 10 | Oring | 1 |
|
3 |
cross pan head bolts |
2 |
7 | Rotor | 1 | 11 | Retainer | 1 |
|
4 |
inlet support plate |
1 |
8 | outlet support plate | 1 |
|
Series |
φA |
B |
C |
φD |
E |
φF |
φG |
H |
K |
M(Gasket) |
N(O-Ring) |
|
20V |
82.55 |
81.5 |
70.1 |
47 |
61.5 |
4.8 |
76.2 |
7 |
73.6 |
82.76×76.26×3.5 |
40×3.55 |
|
25V |
96.8 |
98.8 |
87 |
52.2 |
71.2 |
4.8 |
90.5 |
7 |
88.19 |
97x91x3.5 |
44×3.53 |
|
35V |
114.3 |
117.7 |
105 |
72.2 |
90.3 |
6.4 |
108 |
8 |
103.94 |
114.5×108.5×3.5 |
63.09×3.53 |
|
45V |
133.35 |
141.1 |
129.6 |
80.2 |
105.5 |
6.4 |
127 |
8 |
123.8 |
133.6×127.6×3.5 |
71×3.55 |
|
Series |
Insidesplinetoothoutlineparamenterofrotor |
||||
|
Numberofteeth |
Pitch |
Pressureangle |
MajorDiameter |
MinorDiameter |
|
|
20V |
30 |
48/96 |
45° |
16.617 |
15.56 |
|
25V |
40 |
48/96 |
45° |
21.9 |
20.86 |
|
35V |
37 |
40/80 |
45° |
24.38 |
23.10 |
|
45V |
14 |
12/24 |
30° |
32.59 |
27.6 |
