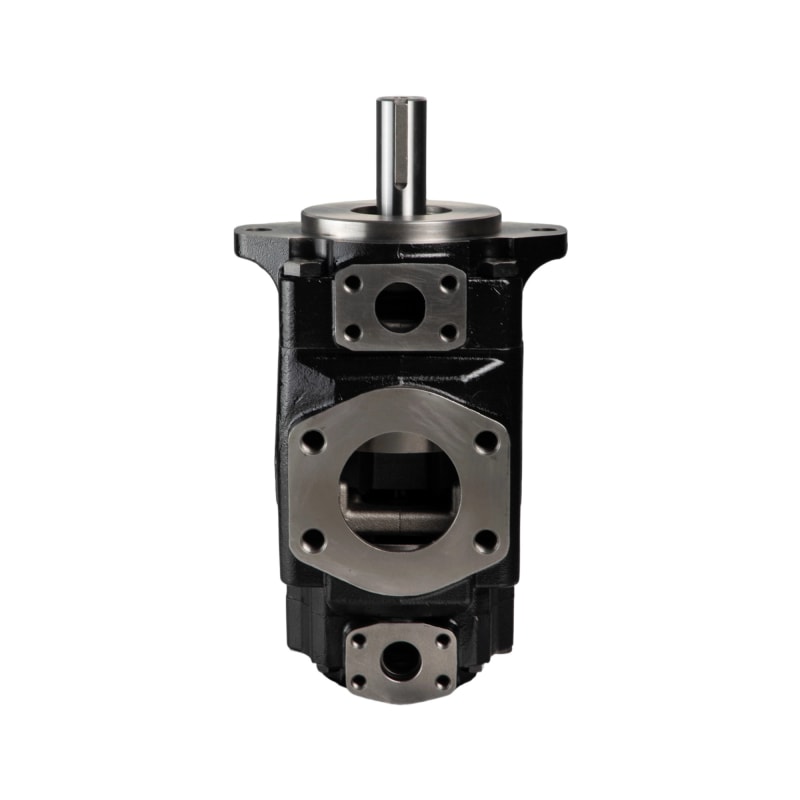

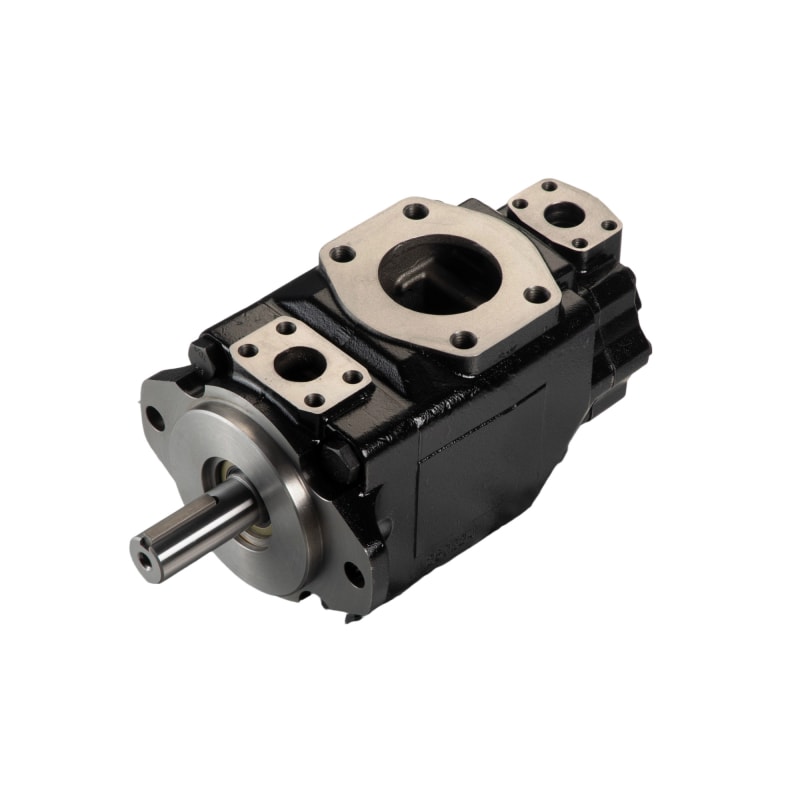

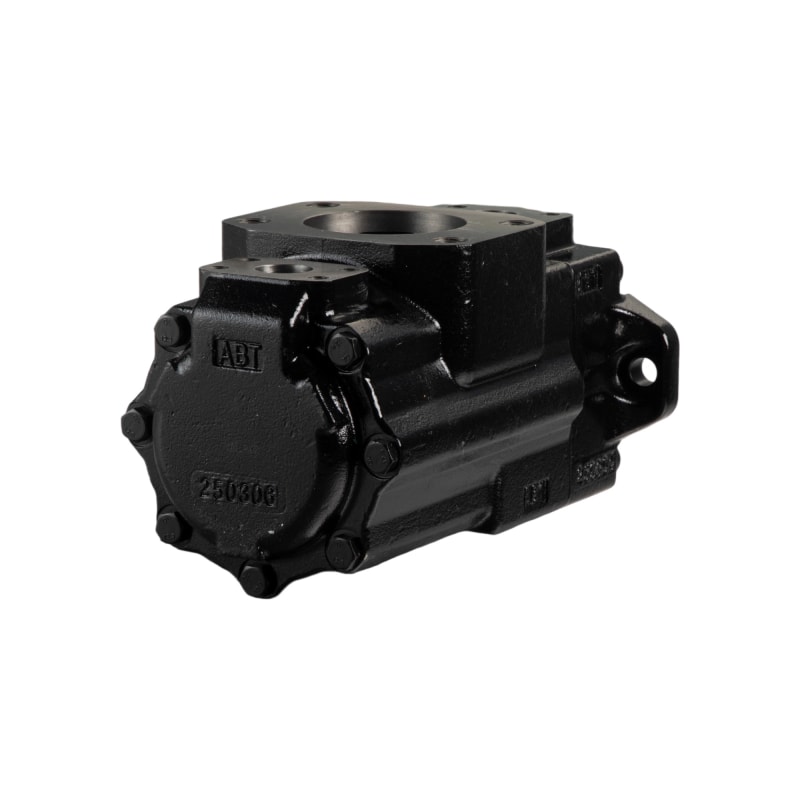

Description

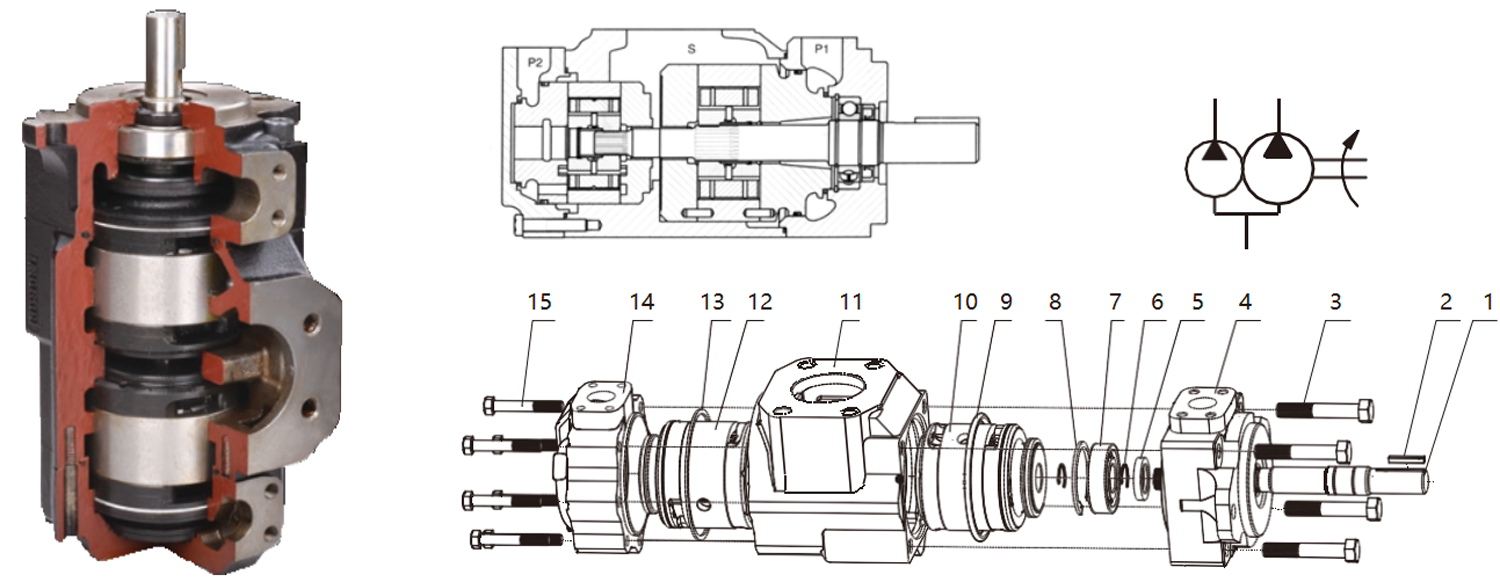

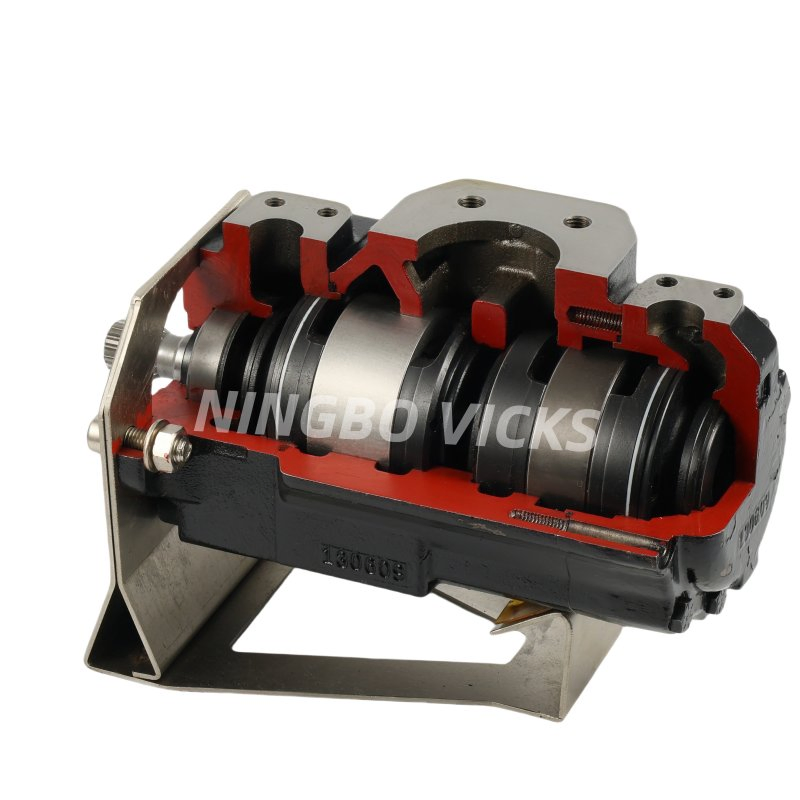

| NO. | Part | Qty | NO. | Part | Qty | NO. | Part | Qty |
| 1 | shaft | 1 | 6 | cir clip for shaft | 2 | 11 | middle body | 1 |
| 2 | straight key | 1 | 7 | ball bearing | 1 | 12 | rear cartridge | 1 |
| 3 | Hexagon head bolt | 4 | 8 | cir clip for hole | 1 | 13 | rectangle seal ring | 1 |
| 4 | front cover | 1 | 9 | rectangle seal ring | 1 | 14 | rear cover | 1 |
| 5 | shaft seal | 1 | 10 | front cartridge | 1 | 15 | Hexagon head bolt | 4 |

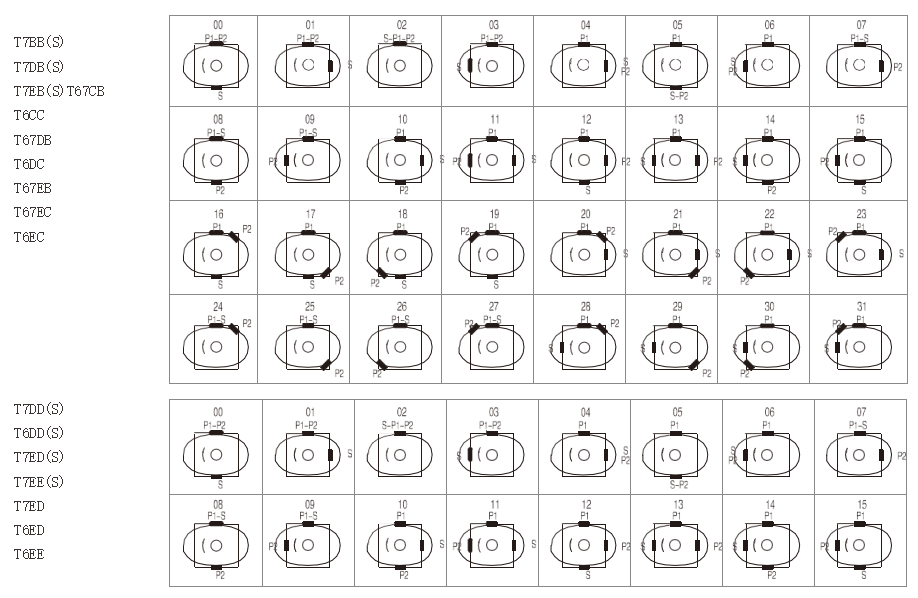

Port positions(Viewed from shaft end of pump)
Model Designation
|
T6CC |
S |
W |
-025 |
-017 |
-1 |
R |
02 |
-C |
1 |
10 |
| Series | Type Code |
Vice Type Code |
Flow-shaft end Pump |
Flow-cover end pump |
Shaft type |
Rotation |
Port positions |
Design number |
Sealing Level |
Port dimensions |
|
T7BB |
NO: USE ISO 3019 Installation Flange
S: USE SAE C J744 installation flange |
NO |
B02, B03, B04, B05, B06, B07, B08, B10, B12, B15, B20 |
B02, B03, B04, B05, B06, B07, B08, B10, B12, B15, B20 |
See size of shaft |
Viewed from shaft end of pump
R-right hand for clockwise
L- left hand for counter- clockwise |
see picture below |
C |
1-S1, (Buna) NBR Nitrile rubber
5-S5, (Viton) Fluororubber |
00, 01, M0, M1 See installation dimensions |
|
T7DB |
B14, B17, B20, B22, B24, B28, B31, B35, B38, B42 |
B02, B03, B04, B05, B06, B07, B08, B10, B12, B15 |
00, 01, M1, M0 see installation dimensions |
|||||||
|
T6DD |
B14, B17, B20, B24, B28, B31, B35, B38, B42, B45, B50, B61 |
B14, B17, B20, B24, B28, B31, B35, B38, B42, B45, B50, B61 |
No |
|||||||
|
T7DD |
B14, B17, B20, B22, B24, B28, B31, B35, B38, B42 | B14, B17, B20, B22, B24, B28, B31, B35, B38, B42 | ||||||||
|
T7EB |
042, 045, 050, 052, 054,
057, 062, 066, 072, 085 |
B02, B03, B04, B05, B06, B07, B08, B10, B12, B15, B20 |
||||||||
|
T7ED |
042, 045, 050, 052, 054,
057, 062, 066, 072, 085 |
B14, B17, B20, B22, B24, B28, B31, B35, B38, B42 | ||||||||
|
T7EE |
042, 045, 050, 052, 054,
057, 062, 066, 072, 085 |
042, 045, 050, 052, 054,
057, 062, 066, 072, 085 |
||||||||
|
T67CB |
NO: industrial type M: truck type P: truck type double seal kits |
W: Heavy str keyed shaft |
003/B03, 005/B05, 006/ B06, 008/B08, 010/B10, 012/B12, 014/B14, 017/ B17, 020/B20, 022/B22, 025/B25, 028/B28, 031/B31 |
B02, B03, B04, B05, B06, B07, B08, B10, B12, B15 |
11, M1 |
|||||
|
T6CC |
003/B03, 005/B05, 006/ B06, 008/B08, 010/B10, 012/B12, 014/B14, 017/ B17, 020/B20, 022/B22, 025/B25, 028/B28, 031/B31 |
003/B03, 005/B05, 006/ B06, 008/B08, 010/B10, 012/B12, 014/B14, 017/ B17, 020/B20, 022/B22, 025/B25, 028/B28, 031/B31 |
00, 01, 10, 11, M0, M1, W0, W1 See installation dimensions |
|||||||
|
T67DB |
014/B14, 017/B17, 020/ B20, 024/B24, 028/B28, 031/B31, 035/B35, 038/ B38, 042/B42, 045/B45, 050/B50, 061 |
B02, B03, B04, B05, B06, B07, B08, B10, B12, B15, B20 |
00, 01, M0, M1 See installation dimensions |
|||||||
|
T67DC |
B14, B17, B20, B22, B24, B28, B31, B35, B38, B42 |
003/B03, 005/B05, 006/ B06, 008/B08, 010/B10, 012/B12, 014/B14, 017/ B17, 020/B20, 022/B22, 025/B25, 028/B28, 031/B31 |
||||||||
|
T6DC |
014/B14, 017/B17, 020/ B20, 024/B24, 028/B28, 031/B31, 035/B35, 038/ B38, 042/B42, 045/B45, 050/B50, 061 |
003/B03, 005/B05, 006/ B06, 008/B08, 010/B10, 012/B12, 014/B14, 017/ B17, 020/B20, 022/B22, 025/B25, 028/B28, 031/B31 |
||||||||
|
T67EB |
042, 045, 050, 052, 057, 062, 066, 072, 085 |
B02, B03, B04, B05, B06, B07, B08, B10, B12, B15, B20 |
No |
|||||||
|
T6EC |
042, 045, 050, 052, 057, 062, 066, 072, 085 |
003/B03, 005/B05, 006/ B06, 008/B08, 010/B10, 012/B12, 014/B14, 017/ B17, 020/B20, 022/B22, 025/B25, 028/B28, 031/B31 |
||||||||
|
T67EC |
042, 045, 050, 052, 057, 062, 066, 072, 085 |
003/B03, 005/B05, 006/ B06, 008/B08, 010/B10, 012/B12, 014/B14, 017/ B17, 020/B20, 022/B22, 025/B25, 028/B28, 031/B31 |
||||||||
|
T6ED |
042, 045, 050, 052, 057, 062, 066, 072, 085 |
014/B14, 017/B17, 020/ B20, 024/B24, 028/B28, 031/B31, 035/B35, 038/ B38, 042/B42, 045/B45, 050/B50, 061 |
||||||||
|
T6EE |
042, 045, 050, 052, 057, 062, 066, 072, 085 |
042, 045, 050, 052, 057, 062, 066, 072, 085 |

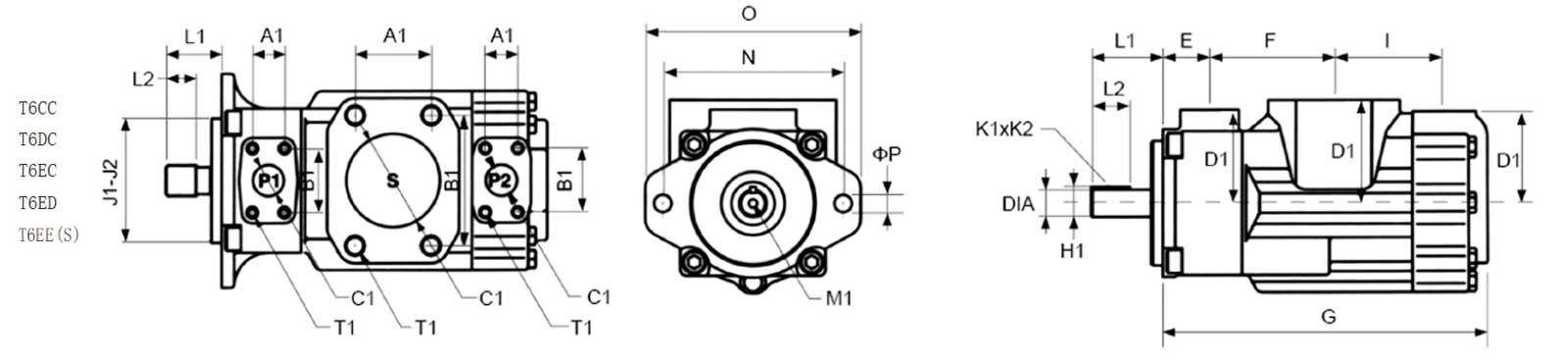

Installation Dimensions
| T6CC | T6DC | T6EC | T6ED | T6EE | T6EES | |
| E | 38.1 | 38.1 | 52.3 | 52.3 | 42.9 | 42.9 |
| F | 101.6 | 114.3 | 118.5 | 133.5 | 167.3 | 167.3 |
| G | 265.6 | 286 | 331.6 | 361 | 406.8 | 406.8 |
| I | 88.2 | 109.5 | 136.7 | 148.2 | 157.9 | 157.9 |
| J1 J2 |
101.6 | 127 | 127 | 127 | 250 | 165.1 |
| 101.55 | 126.95 | 126.95 | 126.95 | 249.93 | 165.05 | |
| N | 146 | 181 | 181 | 181 | 222.7×222.7 | 224.5×224.5 |
| O | 174.5 | 212.4 | 213 | 213 | 273×273 | 273×273 |
| ΦP | 14.3 | 17.5 | 17.5 | 17.5 | 22 | 20.6 |
|
Code |
P1 |
P2 |
S |
|
| T6CC |
00(0M) |
1″ |
1″ |
3″ |
|
01(W0) |
1″ |
3/4″ |
3″ |
|
|
10(1M) |
1″ |
1″ |
2-1/2″ |
|
|
11(W1) |
1″ |
3/4″ |
2-1/2″ |
|
| T6DC T7DB(S) |
00(M0) |
1-1/4″ |
1″ |
3″ |
|
01(M1) |
1-1/4″ |
3/4″ |
3″ |
|
Oil port |
Flange |
Install Dimensions(mm) | ||||||
| A1 |
B1 |
ΦC1 |
D1 |
T1Thread | ||||
|
T6CC |
P1 |
1″ |
F08 |
26.2 |
52.4 |
25.4 |
76.2 |
3/8″-16UNCx19.0 (M10x19) |
|
P2 |
3/4″ |
F06 |
22.2 |
47.6 |
19.0 |
76.2 |
3/8″-16UNCx19.0(M10x19) |
|
|
1″ |
F08 |
26.2 |
52.4 |
25.4 |
74.7 |
|||
|
S |
2-1/2″ |
F20 |
50.8 |
88.9 |
63.5 |
84.1 |
1/2″-13UNCx23.9(M12x24) | |
|
3″ |
F24 |
61.9 |
106.4 |
76.2 |
84.1 |
5/8″-11UNCx28.4(M16x28) | ||
|
T6DC |
P1 |
1-1/4″ |
F10 |
30.2 |
58.7 |
31.8 |
82.6 |
7/16″-14UNCx22.3(M12x22) |
|
P2 |
3/4″ |
F06 |
22.2 |
47.6 |
19.0 |
74.7 |
3/8″-16UNCx19.0(M10x19) |
|
|
1″ |
F08 |
26.2 |
52.4 |
25.4 |
74.7 |
|||
| S |
3″ |
F24 |
61.9 |
106.4 |
76.2 |
88.9 |
5/8″-11UNCx28.4(M16x28.4) | |
|
T6EC |
P1 |
1-1/2″ |
F12 |
35.7 |
69.9 |
38.1 |
98.6 |
1/2″-13UNCx23.4 |
| P2 |
1″ |
F08 |
26.2 |
52.4 |
25.4 |
74.7 |
3/8″-16UNCx19.0 | |
| S |
3-1/2″ |
F28 |
69.9 |
120.7 |
88.9 |
102.4 |
5/8″-11UNCx29.5 | |
|
T6ED |
P1 |
1-1/2″ |
F12 |
35.7 |
69.9 |
38.1 |
98.6 |
1/2″-13UNCx23.4 |
| P2 |
1-1/4″ |
F10 |
30.2 |
58.7 |
31.8 |
101.6 |
7/16″-14UNCx24.0 | |
| S |
4″ |
F32 |
77.8 |
130.2 |
101.6 |
102.4 |
5/8″-11UNCx30.0 | |
|
T6EE(S) |
P1 |
1-1/2″ |
F12 |
35.7 |
69.9 |
38.1 |
139.7 |
1/2″-13UNCx30 |
| P2 |
1-1/2″ |
F12 |
35.7 |
69.9 |
37.1 |
98.6 |
1/2″-13UNCx23.4 | |
| S |
4″ |
F32 |
77.8 |
130.2 |
101.6 |
115 |

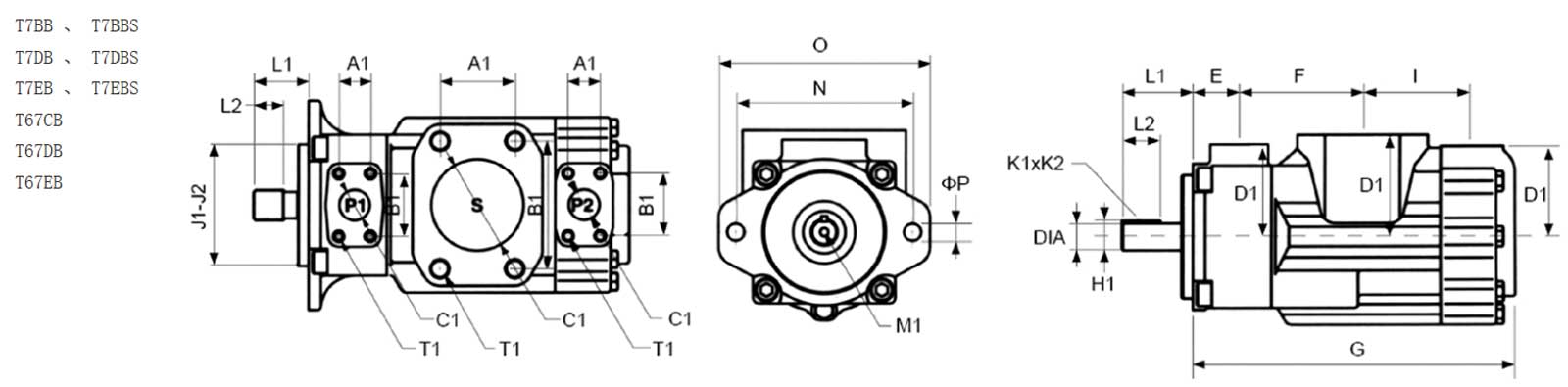

5/8″-11UNCx30 | |
| T7BB | T7BBS | T67CB | T7DB | T7DBS | T67DB | T7EB | T7EBS | T67EB | |
| E | 38.1 | 38.1 | 38.1 | 38.1 | 38.1 | 38.1 | 52.3 | 52.3 | 52.3 |
| F | 101.6 | 101.6 | 101.6 | 114.3 | 114.3 | 114.3 | 118.5 | 118.5 | 118.5 |
| G | 262.2 | 262.2 | 265.6 | 286 | 286 | 286 | 331.6 | 331.6 | 331.6 |
| I | 98.6 | 98.6 | 88.2 | 109.5 | 109.5 | 109.5 | 136.7 | 136.7 | 136.7 |
| J1 J2 |
100 | 101.6 | 101.6 | 125 | 127 | 127 | 125 | 127 | 127 |
| 99.97 | 101.55 | 101.55 | 124.94 | 126.95 | 126.95 | 124.94 | 126.95 | 126.95 | |
| N | 140 | 146 | 146 | 180 | 181 | 181 | 180 | 181 | 181 |
| O | 174.5 | 174.5 | 174.5 | 212.4 | 212.4 | 212.4 | 213 | 213 | 213 |
| ΦP | 14 | 14.3 | 14.3 | 18 | 17.5 | 17.5 | 18 | 17.5 | 17.5 |
|
Code |
P1 |
P2 |
S |
|
| T7BB(S) |
00(0M) |
1″ |
3/4″ |
2-1/2″ |
|
01(M1) |
3/4″ |
3/4″ |
2-1/2″ |
|
Oilport |
|
Flange |
InstallDimensions(mm) |
|||||
|
A1 |
B1 |
ΦC1 |
D1 |
T1Thread |
||||
|
T7BB(S) |
P1 |
1″ |
F08 |
26.2 |
52.4 |
25.4 |
76.2 |
3/8″-16UNCx19.0 (M10x19) |
|
3/4″ |
F06 |
22.2 |
47.6 |
19.0 |
76.2 |
|||
|
P2 |
3/4″ |
F06 |
22.2 |
47.6 |
19.0 |
76.2 |
3/8″-16UNCx19.0(M10x19) |
|
|
S |
2-1/2″ |
F20 |
50.8 |
88.9 |
63.5 |
84.1 |
1/2″-13UNCx23.9(M12x24) |
|
|
T7DB(S) |
P1 |
1-1/4″ |
F10 |
30.2 |
58.7 |
31.8 |
82.6 |
7/16″-14UNCx22.3(M12x22) |
|
P2 |
3/4″ |
F06 |
22.2 |
47.6 |
19.0 |
74.7 |
3/8″-16UNCx19.0(M10x19) |
|
|
1″ |
F08 |
26.2 |
52.4 |
25.4 |
74.7 |
|||
|
S |
3″ |
F24 |
61.9 |
106.4 |
76.2 |
88.9 |
5/8″-11UNCx29(M16x29) |
|
|
T67CB |
P1 |
1″ |
F08 |
26.2 |
52.4 |
25.4 |
76.2 |
3/8″-16UNCx19.0(M10x19) |
|
P2 |
3/4″ |
F06 |
22.2 |
47.6 |
19.0 |
76.2 |
3/8″-16UNCx19.0(M10x19) |
|
|
S |
2-1/2″ |
F20 |
50.8 |
88.9 |
63.5 |
84.1 |
1/2″-13UNCx23.9(M12x30) |
|
|
T67DB |
P1 |
1-1/4″ |
F10 |
30.2 |
58.7 |
31.8 |
82.6 |
7/16″-14UNCx22.3 |
|
P2 |
3/4″ |
F06 |
22.2 |
47.6 |
19.0 |
76.2 |
3/8″-16UNCx19.0 |
|
|
S |
3″ |
F24 |
61.9 |
106.4 |
76.2 |
88.9 |
5/8″-11UNC×29.5 |
|
|
T67EB |
P1 |
1-1/2″ |
F12 |
35.7 |
69.9 |
38.1 |
98.6 |
1/2″-13UNCx23.4 |
|
P2 |
3/4″ |
F06 |
22.2 |
47.6 |
19.0 |
76.2 |
3/8″-16UNCx19.0 |
|
|
S |
3-1/2″ |
F28 |
69.9 |
120.7 |
88.9 |
102.4 |
5/8″-11UNC×29.5 |
|
|
T7EB(S) |
P1 |
1-1/2″ |
F12 |
35.7 |
69.9 |
38.1 |
98.6 |
1/2″-13UNCx23.4 |
|
P2 |
3/4″ |
F06 |
22.2 |
47.6 |
19.0 |
74.7 |
3/8″-16UNCx19.0 |
|
|
S |
3-1/2″ |
F28 |
69.9 |
120.7 |
88.9 |
102.4 |
5/8″-11UNCx29.5 |
|

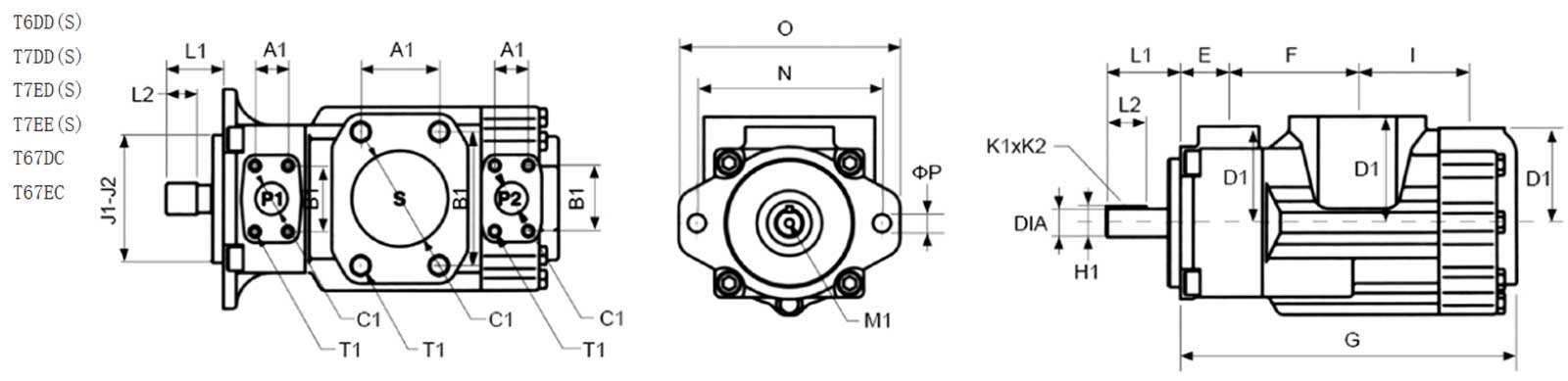

| T6DD T7DD | T6DDS T7DDS | T67DC | T7ED | T7EDS | T67EC | T7EE | T7EES | |
| E | 38.3 | 38.3 | 38.1 | 52.3 | 52.3 | 52.3 | 42.9 | 42.9 |
| F | 148.3 | 148.3 | 114.3 | 133.5 | 133.5 | 118.5 | 167.3 | 167.3 |
| G | 347.7 | 347.7 | 286 | 361 | 361 | 331.6 | 406.8 | 406.8 |
| I | 134.2 | 134.2 | 109.5 | 148.2 | 148.2 | 136.7 | 157.9 | 157.9 |
| J1 J2 | 125 | 127 | 127 | 125 | 127 | 127 | 250 | 165.1 |
| 124.937 | 126.95 | 126.95 | 124.94 | 126.95 | 126.95 | 249.93 | 165.05 | |
| N | 180 | 181 | 181 | 180 | 181 | 181 | 222.7×222.7 | 224.5×224.5 |
| O | 213 | 213 | 212.4 | 213 | 213 | 213 | 273×273 | 273×273 |
| ΦP | 14 | 14.3 | 17.5 | 18 | 17.5 | 17.5 | 22 | 20.6 |
|
Oil port |
Flange |
Install Dimensions(mm) | ||||||
| A1 |
B1 |
ΦC1 |
D1 |
T1 Thread |
||||
|
T6DD(S) T7DD(S) |
P1 |
1-1/4″ |
F10 |
30.2 |
58.7 |
31.8 |
101.6 |
7/16″-14UNCx22.3 |
| P2 |
1-1/4″ |
F10 |
30.2 |
58.7 |
31.8 |
101.6 |
7/16″-14UNCx24 |
|
| S |
4″ |
F32 |
77.8 |
130.2 |
101.6 |
114.9 |
5/8″-11UNCx30 |
|
|
T7ED(S) |
P1 |
1-1/2″ |
F12 |
35.7 |
69.9 |
37.1 |
98.6 |
1/2″-13UNCx23.4 |
| P2 |
1-1/4″ |
F10 |
30.2 |
58.7 |
31.8 |
101.6 |
7/16″-14UNCx24 |
|
| S |
4″ |
F32 |
77.8 |
130.2 |
101.6 |
102.4 |
5/8″-11UNCx30 |
|
|
T7EE(S) |
P1 |
1-1/2″ |
F12 |
35.7 |
69.9 |
38.1 |
139.7 |
M12x30 |
| P2 |
1-1/2″ |
F12 |
35.7 |
69.9 |
37.1 |
98.6 |
M12x30 |
|
| S |
4″ |
F32 |
77.8 |
130.2 |
101.6 |
115 |
M16x30 |
|
|
T67DC |
P1 |
1-1/4″ |
F10 |
30.2 |
58.7 |
31.8 |
82.6 |
7/16″-14UNCx22.3 |
| P2 |
1″ |
F08 |
26.2 |
52.4 |
25.4 |
74.7 |
3/8″-16UNCx19.0 |
|
| S |
3″ |
F24 |
61.9 |
106.4 |
76.2 |
88.9 |
5/8″-11UNCx28.5 |
|
|
T67EC |
P1 |
1-1/2″ |
F12 |
35.7 |
69.9 |
37.1 |
98.6 |
1/2″-13UNCx23.4 |
| P2 |
1″ |
F08 |
26.2 |
52.4 |
25.4 |
74.7 |
3/8″-16UNCx19.0 |
|
| S |
3-1/2″ |
F28 |
69.9 |
120.7 |
88.9 |
102.4 |
5/8″-11UNCx29.5 |
|

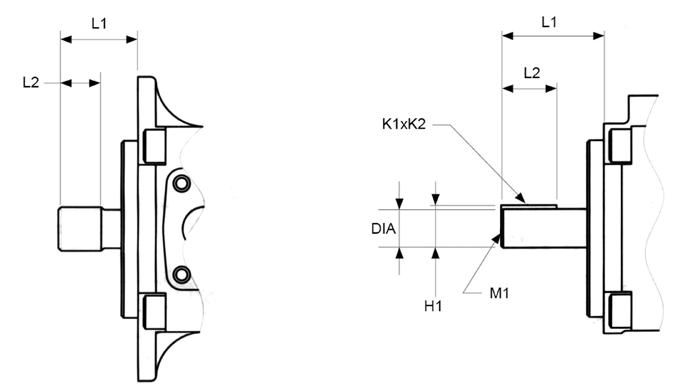

Installation Dimensions
Shaft extension
|
Model |
Shaft code |
Max torque (N.m) |
L1 |
L2 |
DIA |
K1xK2 |
H1 |
M1 |
|
T7BB |
5 |
● |
70.0 |
40.0 |
25.006/24.993 |
8.00×7.00 |
28.22 |
– |
|
T7BBS |
1 |
238 |
58.2 |
31.7 |
22.225/22.200 |
4.76×4.71 |
24.53 |
– |
| 2 |
357 |
71.4 |
38.1 |
25.400/25.370 |
6.35×6.30 |
28.22 |
M8x16 |
|
| 3 |
● |
40.7 |
24.5 |
SAE J498b class1, Diametral pitch 16/32，13T |
– |
|||
| 4 |
● |
45.5 |
24.5 |
SAE J498b class1, Diametral pitch 16/32，15T |
– |
|||
|
T7DB |
5 |
● |
87.9 |
50.0 |
32.018/32.002 |
10.00×8.00 |
35.0 |
M10x20 |
|
T7DBS |
1 |
● |
83.6 |
49.3 |
31.75/31.70 |
7.94×7.89 |
35.27 |
M10x20 |
| 2 |
● |
73.2 |
38.1 |
31.75/31.70 |
7.94×7.89 |
35.27 |
– |
|
| 3 |
● |
55.2 |
38.0 |
SAE J498b class1, Diametral pitch 12/24，14T |
– |
|||
| 4 |
● |
77.7 |
48.02 |
SAE J498b class1, Diametral pitch 12/24，14T |
– |
|||
|
T6DD, T7DD |
5 |
● |
68.0 |
50.0 |
32.018/32.002 |
10.00×8.00 |
35.0 |
M10x20 |
|
T6DDS, T7DDS |
1 |
● |
84.0 |
49.3 |
31.75/31.70 |
7.94×7.89 |
35.27 |
M10x20 |
| 2 |
● |
91.0 |
50.8 |
38.10/38.05 |
9.52×9.47 |
42.36 |
M10x20 |
|
| 3 |
● |
56.0 |
38.0 |
SAE J498b class1, Diametral pitch 12/24，14T |
– |
|||
| 4 |
● |
46.0 |
24.5 |
SAE J498b class1, Diametral pitch 16/32，15T |
– |
|||
|
T7EB, T7ED |
5 |
● |
90.0 |
50.0 |
38.018/38.002 |
10.00×8.00 |
41.3 |
M10x20 |
|
T7EBS, T7EDS |
1 |
● |
90.9 |
50.8 |
38.10/38.05 |
9.52×9.47 |
42.36 |
M10x20 |
| 2 |
● |
61.9 |
38.1 |
31.75/31.70 |
7.94×7.89 |
35.27 |
– |
|
| 3 |
● |
55.9 |
38.1 |
SAE J498b class1, Diametral pitch 12/24，14T |
– |
|||
| 4 |
● |
62.2 |
31.5 |
SAE J498b class1, Diametral pitch 12/24，17T |
– |
|||
|
T6EE,T7EE |
2 |
● |
92.0 |
63.0 |
45.000/44.975 |
14.00×9.00 |
48.5 |
M12x24 |
|
T6EES T7EES |
1 |
● |
90.9 |
63.5 |
38.100/38.075 |
9.52×9.47 |
42.36 |
M10x20 |
| 3 |
● |
62.2 |
31.5 |
SAE J498b class1, Diametral pitch 12/24，17T |
– |
|||
| 4 |
● |
75.0 |
48.8 |
SAE J498b class1, Diametral pitch 8/16，13T |
– |
|||
|
T67CB, T6CC |
1 |
238 |
58.2 |
31.7 |
22.225/22.200 |
4.76×4.71 |
24.53 |
– |
| 2 |
357 |
71.4 |
38.1 |
25.400/25.370 |
6.35×6.30 |
28.22 |
M8x16 |
|
| 3 |
545 |
45.5 |
24.5 |
SAE J498b class1, Diametral pitch 16/32，15T |
– |
|||
| 5 |
343 |
40.7 |
24.5 |
SAE J498b class1, Diametral pitch 16/32，13T |
– |
|||
|
T67DB, T67DC, T6DC |
1 |
721 |
83.6 |
49.3 |
31.750/31.700 |
7.94×7.89 |
35.27 |
M10x20 |
| 2 |
577 |
73.2 |
38.1 |
31.750/31.700 |
7.94×7.89 |
35.27 |
– |
|
| 3 |
● |
55.2 |
38.0 |
SAE J498bclass1, Diametral pitch 12/24，14T |
– |
|||
| 4 |
● |
77.7 |
48.0 |
SAE J498b class1, Diametral pitch 12/24，14T |
– |
|||
| 5 |
● |
83.4 |
60.0 |
34.900/34.875 |
7.94×7.89 |
38.42 |
M8x16 |
|
|
T67EB, T67EC, T6EC, T6ED |
1 |
● |
90.9 |
50.8 |
38.100/38.050 |
9.52×9.47 |
42.36 |
M10x20 |
| 2 |
577 |
61.9 |
38.1 |
31.750/31.700 |
7.94×7.89 |
35.27 |
– |
|
| 3 |
● |
55.7 |
38.0 |
SAE J498b class1, Diametral pitch 12/24，14T |
– |
|||
| 4 |
● |
62.2 |
31.5 |
SAE J498bclass1, Diametral pitch 12/24，17T |
– |
|||
Work at maximum flow and pressure.
Reviews
There are no reviews yet.
