OEM gearbox solutions significantly enhance performance through tailored designs, including a gearbox for injection molding machine applications. These solutions improve efficiency by providing optimized power transmission, particularly with the use of a low backlash planetary reducer injection. Additionally, manufacturers benefit from increased reliability, thanks to high-quality materials and precision engineering. The integration of a Servo Motor for injection screw drive further complements these advantages, ensuring anenergy saving electric plasticizing solution.
Key Takeaways
- Custom OEM gearboxes can significantly boost efficiency and reduce downtime by up to 30%.
- Investing in high-quality gearboxes lowers maintenance costs and enhances machine reliability.
- Integrating servo motors with gearboxes improves precision and energy efficiency, leading to substantial cost savings.
Types of OEM Gearbox Solutions
Helical Gearboxes
Helical gearboxes are popular in injection molding applications due to their ability to provide smoother operation and reduced noise levels. Their angled tooth design allows for gradual engagement, which minimizes vibrations and ensures quieter operation. This feature is particularly beneficial in environments where noise reduction is crucial. However, while they excel in noise reduction, helical gears may experience slightly reduced efficiency due to increased sliding friction during engagement.
Planetary Gearboxes
Planetary gearboxes offer several advantages for Injection Molding Machines. They are commonly used inservo motors, providing a reliable and cost-effective alternative to hydraulic systems. These gearboxes enhance output by reducing cycle times and powering precision injectors in plastic molding operations. Their compact design allows for high torque output in a smaller footprint, making them ideal for applications requiring precise movements and high forces.
Worm Gearboxes
Worm gearboxes are known for their high gear ratios and self-locking features, making them suitable for torque-heavy applications. They provide a compact design, which is advantageous in space-constrained environments. However, they do have limitations, such as lower efficiency and significant energy loss due to friction. Additionally, worm gearboxes generate heat, necessitating careful thermal management to ensure longevity.
| Advantages | Limitations |
|---|---|
| High gear ratios | Low efficiency |
| Self-locking feature | Significant energy loss |
| Compact design | Generates heat due to friction |
| Ideal for torque-heavy applications | Requires careful thermal management |

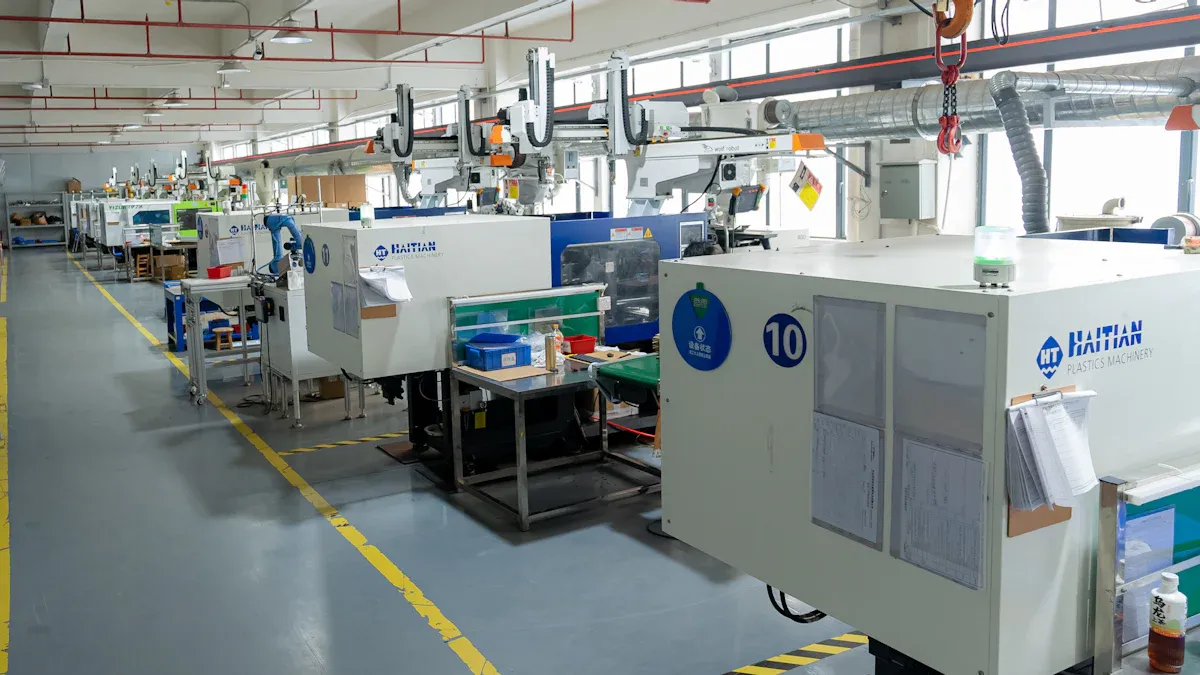

Advantages of OEM Gearbox Solutions
Enhanced Performance
OEM gearbox solutions significantly enhance the performance of injection molding machines. They achieve this through tailored designs that meet specific operational needs. For instance, manufacturers like KAIBO have successfully completed over 500 custom OEM gearbox projects, boasting a remarkable 99.2% success rate. This high reliability indicates that these gearboxes consistently deliver optimal performance. Additionally, KAIBO’s quality control process is certified to ISO 9001:2015, ensuring that every gearbox meets stringent performance standards.
Upgrading or replacing gearboxes can lead to substantial improvements. Studies show that such enhancements can reduce downtime by up to 30%. This reduction allows manufacturers to increase production efficiency and maintain a competitive edge in the market.
Energy Efficiency
Energy efficiency is another critical advantage of OEM gearbox solutions. These gearboxes are designed to minimize energy loss during operation. For example, a field test demonstrated that using Chevron’s Clarity® Synthetic Hydraulic Oil in a Husky XL 300 plastic injection molding machine resulted in a 4.2% decrease in electricity usage compared to standard hydraulic fluids. This reduction not only lowers operational costs but also contributes to a more sustainable manufacturing process.
To evaluate energy efficiency, manufacturers can refer to various performance metrics. The table below outlines acceptable ranges for energy consumption and other key parameters:
| Performance Parameter | Excellent Range | Good Range | Acceptable Range |
|---|---|---|---|
| Cycle Time (seconds) | 15-30 | 30-60 | 60-120 |
| Dimensional Tolerance (±mm) | 0.05-0.1 | 0.1-0.2 | 0.2-0.5 |
| Material Waste (%) | 2-5 | 5-10 | 10-15 |
| Energy Consumption (kWh/kg) | 0.8-1.2 | 1.2-1.8 | 1.8-2.5 |
Customization Options
Customization is a vital aspect of OEM gearbox solutions. Manufacturers can tailor gearboxes to fit specific machine requirements, ensuring optimal performance. This flexibility allows for adjustments in gear ratios, sizes, and configurations, catering to unique operational demands.
By offering customization options, OEM gearbox manufacturers empower injection molding companies to enhance their production capabilities. This adaptability can lead to improved cycle times, reduced material waste, and better overall efficiency.
Key Considerations for Selection
Load Capacity
Load capacity plays a vital role in selecting OEM gearbox solutionsfor Injection Molding Machines. The design of gears must accommodate the operational loads they will face. A study emphasizes that the ability of gears to withstand these loads directly influences the selection process. Manufacturers must ensure that the chosen gearbox can handle the required load without compromising reliability or performance. Insufficient load capacity can lead to premature wear, increased maintenance costs, and potential machine failure. Therefore, evaluating load requirements is essential for maintaining operational efficiency.
Speed Requirements
Speed requirements are another critical factor in the selection of OEM gearbox solutions. Injection Molding Machines often operate at varying speeds depending on the specific application. Gearboxes must provide the necessary torque and speed to meet production demands. Manufacturers should assess the desired cycle times and the speed at which the injection screw operates. A mismatch between the gearbox and the machine’s speed requirements can result in inefficiencies and reduced output. Therefore, selecting a gearbox that aligns with the operational speed is crucial for optimal performance.
Environmental Factors
Environmental factors significantly impact the performance of OEM gearbox solutions. Temperature and humidity variations can affect the materials and dimensions of the gears. Seasonal temperature changes can lead to dimensional inaccuracies, which may hinder the gearbox’s functionality. Even minor fluctuations, such as those caused by opening doors in a manufacturing area, can disrupt performance. To mitigate these effects, manufacturers often use high-quality plastic materials for gearbox housings. These materials help ensure dimensional stability, allowing the gearbox to perform reliably under varying environmental conditions.
- Key Environmental Considerations:
- Seasonal temperature changes can affect gear size.
- Minor temperature fluctuations can impact performance.
- High-quality materials enhance dimensional stability.
By considering load capacity, speed requirements, and environmental factors, manufacturers can make informed decisions when selecting OEM gearbox solutions. This careful evaluation leads to improved performanceand longevity of Injection Molding Machines.
Case Studies of Successful Implementations
Example 1: Increased Production Efficiency
A leading injection molding company implemented a custom helical gearbox solution. This upgrade allowed them to reduce cycle times by 20%. The new gearbox design optimized power transmission, enabling faster injection speeds. As a result, the company increased its overall production output significantly.
Example 2: Cost Reduction in Maintenance
Another manufacturer faced frequent gearbox failures, leading to high maintenance costs. They switched to a robust planetary gearbox designed specifically for their machines. This change reduced maintenance needs by 40%. The new gearbox’s durability and reliability minimized downtime, allowing the company to allocate resources more effectively.
Example 3: Improved Machine Longevity
A third case involved a company that struggled with premature wear in their Injection Molding Machines. They opted for a customized worm gearbox solution. This gearbox featured advanced materials that enhanced thermal management. Consequently, the machines experienced a 30% increase in lifespan. The investment in a tailored gearbox paid off through extended operational periods and reduced replacement costs.
Key Takeaways:
- Custom gearboxes can lead to significant efficiency gains.
- Investing in quality gearboxes reduces maintenance costs.
- Tailored solutions improve machine longevity and performance.
Integrating Servo Motor for Injection Screw Drive
Benefits of Servo Motors
Integrating a Servo Motor for injection screw drive offers numerous advantages forinjection molding machines. These motors enhance precision, enabling stable injection speeds and consistent part quality. They also provide a faster dynamic response, which reduces cycle times and increases production output. Notably, energy efficiency improves significantly, with power consumption reduced by 30–80%. This efficiency translates into substantial cost savings, often amounting to thousands of dollars annually. Additionally, Servo Motors contribute to product consistency, leading to a 25% reduction in scrap rates.
Compatibility with Gearbox Solutions
Servo Motors work seamlessly with various gearbox solutions, enhancing overall system performance. Their compact design allows for easy integration with helical, planetary, or worm gearboxes. This compatibility ensures that manufacturers can optimize their injection molding machines for specific applications. By selecting the right combination of Servo Motors and gearboxes, companies can achieve improved torque output and operational efficiency.
Tip: When integrating servo motors, consider the gearbox type to ensure optimal performance and longevity.
Selecting the right OEM gearbox solutions is vital for maximizing performance and reliability in injection molding machines. Manufacturers should evaluate their specific needs and the advantages of various gearbox types. A well-chosen gearbox can lead to significant operational improvements and cost savings.
Industry Standards:
Certification Name Description IATF 16949 A standard for quality management systems in the automotive industry, applicable to OEM gearbox solutions for injection molding machines.
- Future trends indicate growth in the Global Injection Molded Plastic Gears Market at a CAGR of 4.2% from 2025 to 2035.
- Demand for lightweight components is rising, especially in automotive and aerospace sectors.
- Technological advancements, including automation and AI, enhance production efficiency.
FAQ
What is an OEM gearbox?
An OEM gearbox is a custom-designed gearbox tailored for specific applications, enhancing performance and efficiency in machinery like injection molding machines.
How do I choose the right gearbox?
Selecting the right gearbox involves assessing load capacity, speed requirements, and environmental factors to ensure optimal performance and reliability.
What are the benefits of using servo motors?
Servo motors improve precision, reduce cycle times, and enhance energy efficiency, leading to significant cost savings in injection molding operations.
